1930 - Green Machine String Trimmer 2331 Trimmer Attachment Parts Diagram

String Trimmer

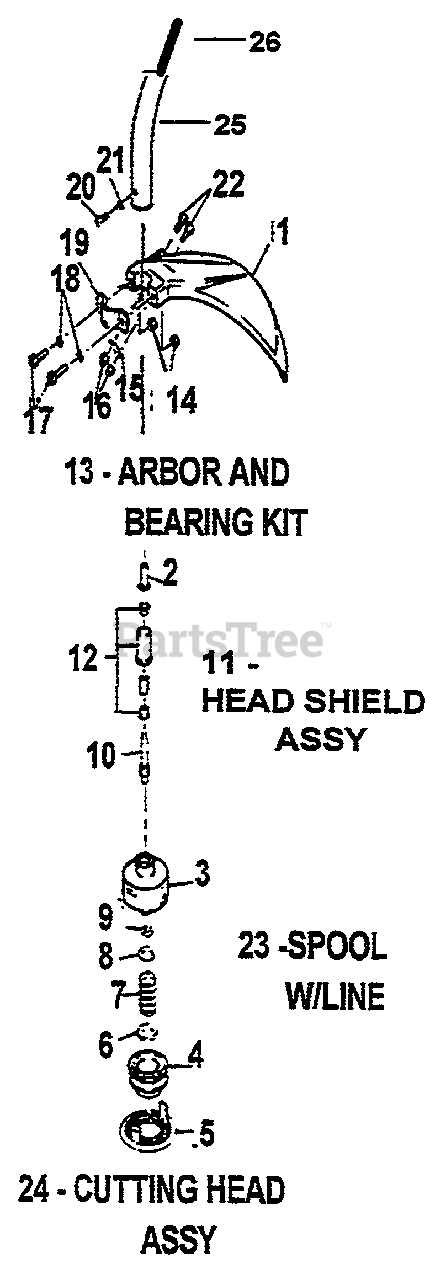

2331 Trimmer Attachment Parts Diagram

  • Title
1

Homelite GM165206

DEFLECTOR

$

$

Not available

2

Homelite GM166501

ARBOR ADAPTER

Note: Included in ref # 13 (P/N GM160614)

$

$

Not available

3

Homelite GM160310

HEAD BODY

$

$

Not available

$

$

Not available

5

Homelite GM165208

CAP
(Superseded to GM20105)

$

$

Not available

6

Homelite GM166903

SPRING PLATE

$

$

Not available

7

Homelite GM167901

SPRING
(Superseded to UP06740)

$5.49

$

Usually ships in 3-7 days

0

8

Homelite GM166903

SPRING PLATE

$

$

Not available

9

$

$

Not available

10

Homelite GM166702

ARBOR POST

Note: Included in ref # 13 (P/N GM160614)

$

$

Not available

11

Homelite GM160306

HEAD SHIELD ASSY

$

$

Not available

12

Homelite GM160305

ARBOR BUSH ASSY
(Superseded to UP06876)

Note: Included in ref # 13 (P/N GM160614)

$

$

Not available

13

Homelite GM160614

ARBOR & BRG KIT

Note: Includes ref 2, 10, & 12

$

$

Not available

14

Homelite GM051002

NUT
(Superseded to UP03400)

$

$

Not available

15

Homelite GM166901

BLADE, CUT OFF

$

$

Not available

$

$

Not available

$

$

Not available

18

$

$

Not available

19

$

$

Not available

$

$

Not available

21

$

$

Not available

$

$

Not available

23

Homelite GM32005

SPOOL & LINE
(Superseded to DG07810)

$

$

Not available

24

Homelite GM20135

HEAD ASSEMBLY
(Superseded to DG07795)

$82.99

$

Usually ships in 3-7 days

0

25

Homelite GM280314

TUBE ASSY
(Superseded to UP06790)

$

$

Currently unavailable

26

Homelite GM237804

FLEX CABLE
(Superseded to A07844)

$

$

Not available
