19271 - Toro Guardian Walk-Behind Mower (SN: 002000001 - 002999999) (1972) ENGINE ASSEMBLY MODEL NO. 20571 Parts Diagram

Guardian Walk-Behind Mower

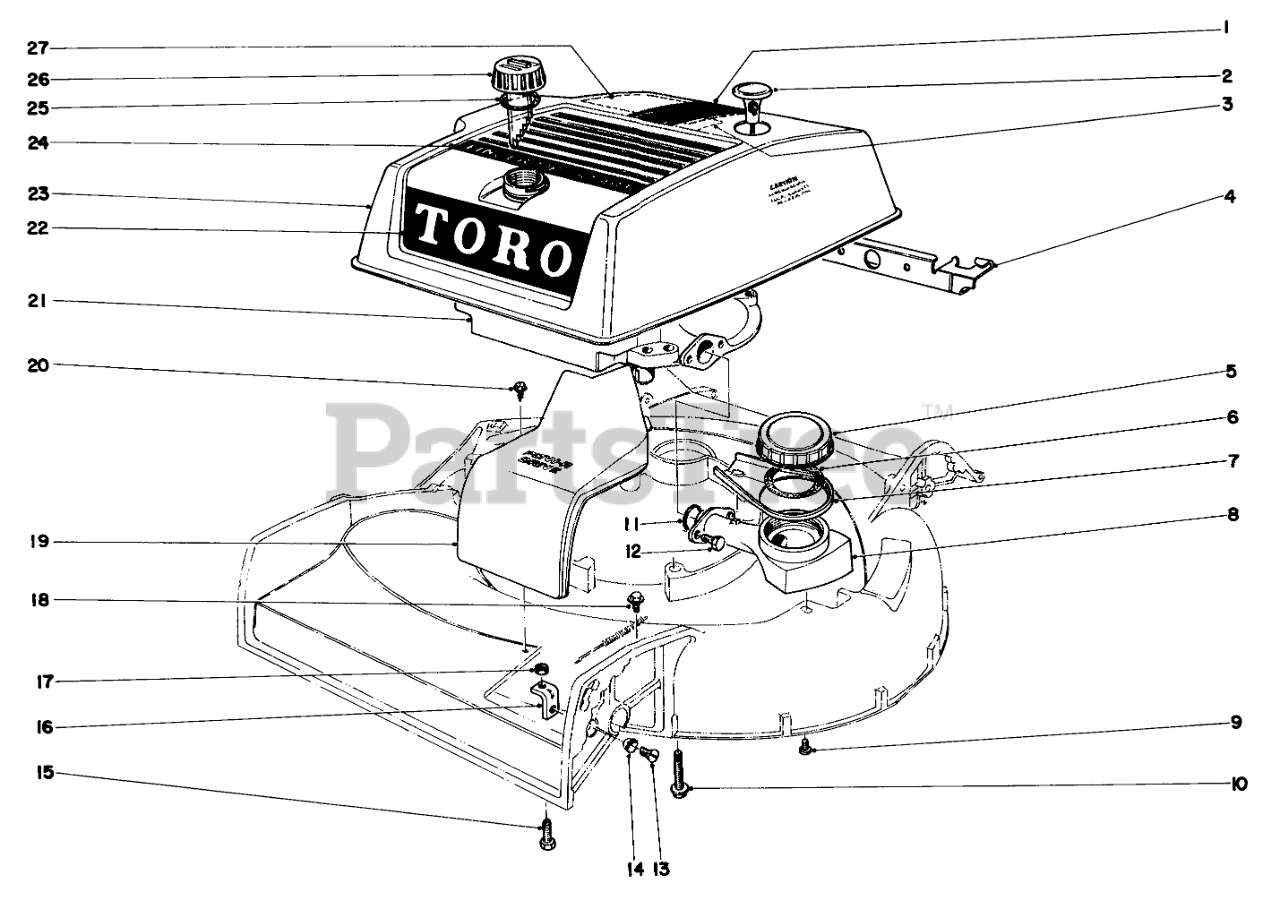

ENGINE ASSEMBLY MODEL NO. 20571 Parts Diagram

  • Title

1

Toro 11-2880

Decal

$

$

Currently unavailable

2

Toro 12-2210

Rope Handle

$

$

Not available

3

Toro 12-6590

Decal Caution

$

$

Currently unavailable

4

Toro 11-9690

Shroud Bracket

$

$

Currently unavailable

5

Toro 8-5170

Oil Gauge Cap

$

$

Not available

6

Toro 8-5150

VISUAL OILER GASKET

$

$

Not available

7

Toro 8-5590

Spout

$

$

Not available

8

Toro 8-5630

Oil Gauge

$

$

Currently unavailable

9

Toro 32140-77

Screw
(Superseded to 32104-101)

$

$

Not available

10

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

11

Toro 237-77

O RING

$2.99

$

Usually ships in 3-6 days

0

12

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

13

Toro 32108-20

SCREW

$0.99

$

Usually ships in 3-6 days

0

14

Toro 3255-12

Lockwasher

$

$

Not available

15

Toro 3-7281

SCREW

$

$

Not available

16

Toro 3-7278

ADJ BRACKET

$

$

Not available

17

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

18

Toro 32140-69

Screw
(Superseded to 32144-11)

$7.99

$

In Stock, Qty 6

0

19

Toro 8-5220

Cover
(Superseded to 28-4730)

$65.99

$

Usually ships in 3-6 days

0

20

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 221-402

Engine

$

$

Currently unavailable

22

Toro 12-2030

Decal-Toro

$

$

Currently unavailable

23

Toro 12-1200

Engine Shroud
(Superseded to 6-3439)

$

$

Not available

24

Toro 12-2010

Decal

$

$

Currently unavailable

25

Toro 5-2044

Gasket

$

$

Currently unavailable

26

Toro 12-0580

Gas Cap (Incl. Ref. No. 25)
(Superseded to 42-0682)

$

$

Not available

27

Toro 8-5620

Decal-Maintenance

$

$

Currently unavailable

Toro 11-9290

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
