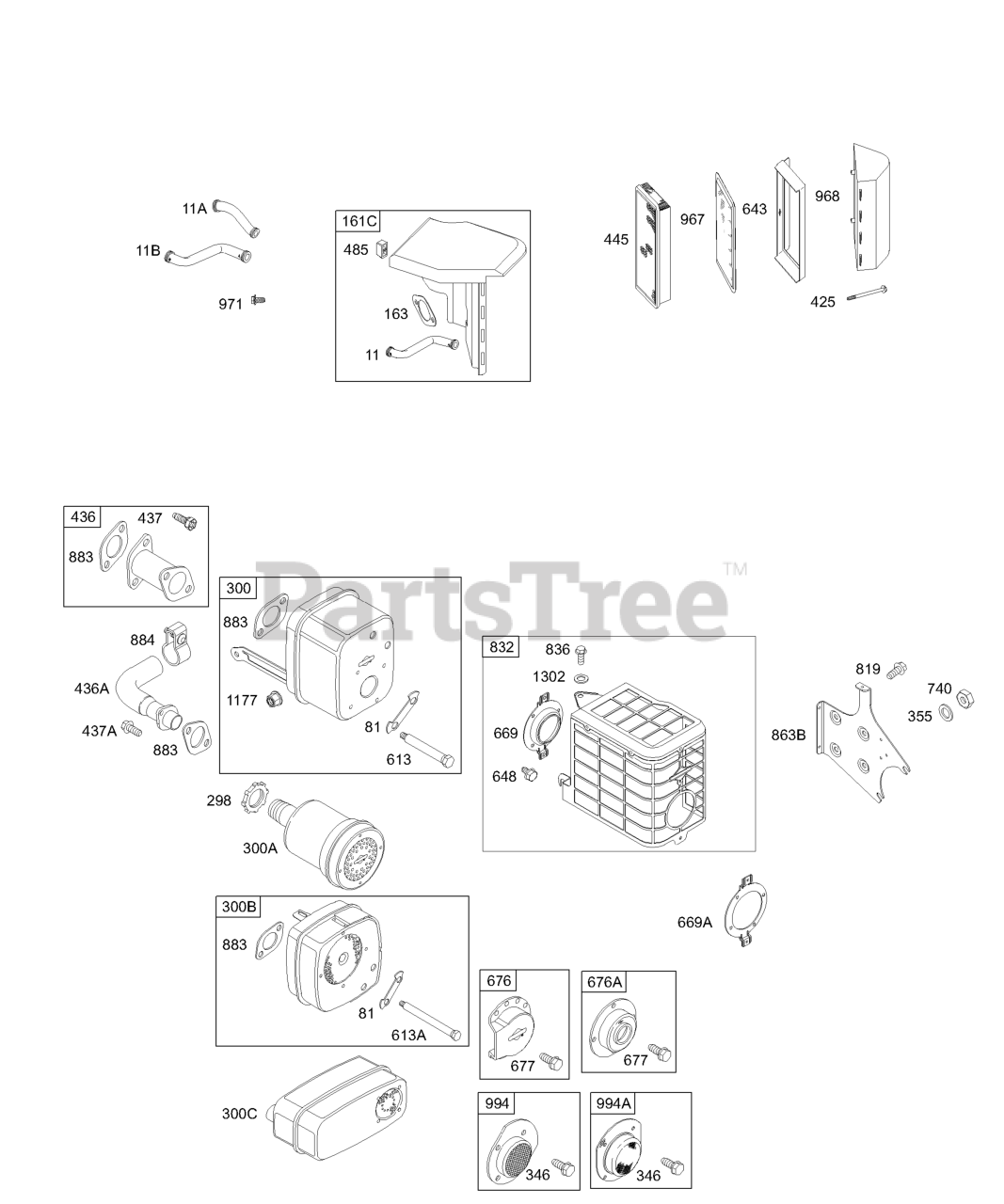

192402-1196-E1 - Briggs & Stratton Horizontal Engine Air Cleaner, Muffler Parts Diagram

Horizontal Engine

Air Cleaner, Muffler Parts Diagram

  • Title

11

Briggs & Stratton 691907

Tube-Breather

Note: Used After Code Date 95040200

$24.99

$

In Stock, only 1 left!

0

11A

Briggs & Stratton 691899

Tube-Breather

Note: Used After Code Date 95010100 Used Before Code Date 95040300

$13.99

$

In Stock, Qty 5

0

11B

Briggs & Stratton 281426

Tube-Breather

Note: Used Before Code Date 94111100

$

$

Not available

81

Briggs & Stratton 691729

Lock-Muffler Screw

$5.99

$

In Stock, only 3 left!

0

161C

Briggs & Stratton 498544

Base-Air Cleaner

$152.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 692277

Gasket-Air Cleaner

$6.99

$

In Stock, only 4 left!

0

298

Briggs & Stratton 690453

Locknut-Muffler/Elbow

$4.49

$

In Stock, Qty 9

0

300

Briggs & Stratton 497141

Muffler

$102.99

$

In Stock, only 2 left!

0

300A

Briggs & Stratton 692025

Muffler

$41.99

$

Usually ships in 2-12 days

0

300C

Briggs & Stratton 498984S

Muffler

$84.99

$

Usually ships in 2-12 days

0

300B

Briggs & Stratton 691951

Muffler

$80.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 690661

SCREW

Note: (Spark Arrestor)

$3.49

$

In Stock, Qty 9

0

355

Briggs & Stratton 690310

Washer

Note: (Muffler Bracket)

$4.99

$

Usually ships in 2-12 days

0

425

Briggs & Stratton 691671

Screw

Note: (Air Cleaner Cover)

$5.99

$

In Stock, Qty 9

0

436

Briggs & Stratton 497140

Manifold-Exhaust

$63.99

$

In Stock, only 2 left!

0

436A

Briggs & Stratton 690797

Manifold-Exhaust

$60.99

$

Usually ships in 2-12 days

0

437

Briggs & Stratton 695974

Screw
(Superseded to 691665)

Note: (Exhaust Manifold)

$7.99

$

In Stock, only 4 left!

0

437A

Briggs & Stratton 690810

SCREW

Note: (Exhaust Manifold)

$3.49

$

In Stock, only 3 left!

0

445

Briggs & Stratton 691643

Filter-A/C Cartridge

$17.99

$

In Stock, Qty 6

0

485

Briggs & Stratton 692295

Knob-Control

$9.49

$

In Stock, only 4 left!

0

613

Briggs & Stratton 691351

Screw

Note: (Muffler)

$8.49

$

In Stock, only 1 left!

0

613A

Briggs & Stratton 691632

Screw

Note: (Muffler)

$8.49

$

In Stock, only 2 left!

0

643

Briggs & Stratton 691926

Retainer-Air Filter

$45.99

$

In Stock, only 4 left!

0

648

Briggs & Stratton 690661

SCREW

Note: (Muffler Guard Bracket)

$3.49

$

In Stock, Qty 9

0

669

Briggs & Stratton 691228

Bracket-Muffler Guard

$16.99

$

Usually ships in 2-12 days

0

669A

Briggs & Stratton 692869

Bracket-Muffler Guard

$7.49

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 393757

Deflector-Muffler
(Superseded to 796956)

Note: (Side Out)

$10.99

$

In Stock, only 1 left!

0

676A

Briggs & Stratton 395700

Deflector-Muffler

Note: (Direct Out)

$15.99

$

In Stock, only 1 left!

0

677

Briggs & Stratton 690661

SCREW

Note: (Muffler Deflector)

$3.49

$

In Stock, Qty 9

0

740

Briggs & Stratton 691105

Nut

Note: (Muffler Bracket)

$7.99

$

In Stock, only 1 left!

0

819

Briggs & Stratton 692198

Screw

Note: (Muffler Bracket)

$5.99

$

In Stock, Qty 12

0

832

Briggs & Stratton 691447

Guard-Muffler

$120.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 692198

Screw

Note: (Muffler Guard)

$5.99

$

In Stock, Qty 12

0

863B

Briggs & Stratton 690454

Bracket-Muffler

$44.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 697815

Gasket-Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 3 left!

0

884

Briggs & Stratton 691956

Clamp-Muffler

$15.99

$

In Stock, only 3 left!

0

967

Briggs & Stratton 492889

Filter-Pre Cleaner

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 691925

Cover-Air Cleaner

$

$

Not available

971

Briggs & Stratton 691003

SCREW

Note: (Air Cleaner Base to Carburetor/Throttle Body)

$3.49

$

In Stock, Qty 9

0

994

Briggs & Stratton 399541

Arrestor-Spark

$28.99

$

Usually ships in 2-12 days

0

994A

Briggs & Stratton 392390

Arrestor-Spark
(Superseded to 794945)

$53.99

$

Usually ships in 2-12 days

0

1177

Briggs & Stratton 691105

Nut

Note: (Muffler)

$7.99

$

In Stock, only 1 left!

0

1302

Briggs & Stratton 691113

Washer

Note: (Muffler Guard)

$3.99

$

Usually ships in 2-12 days

0
