1924-2 - Troy-Bilt 3,550 Watt Portable Generator Main Unit Parts Diagram

3,550 Watt Portable Generator

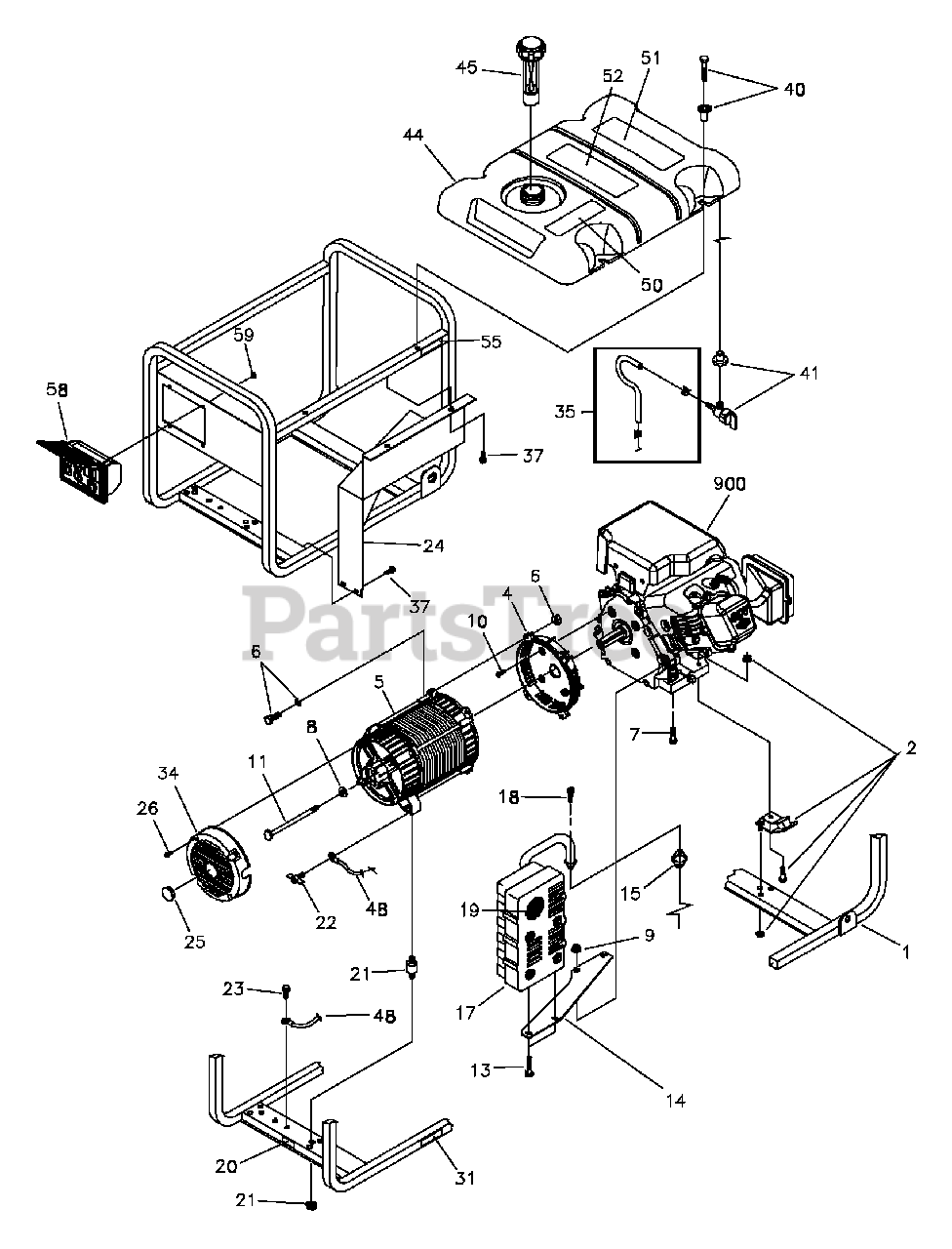

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton P194779GS

CRADLE

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 197564GS

KIT,Vibration Mount

$15.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186058AGS

HOUSING, Engine Adapter

$30.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY,Alternator

Note: (see "Alternator")

$

$

Not available

6

Briggs & Stratton 194151GS

KIT, Hardware Mounting Adapter

$22.99

$

Usually ships in 2-12 days

0

7

PPHMS, M8 1.25 x 40

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

10

HHCS, 5/16-24 x 3/4, SEMS

Note: (Purchase locally)

$

$

Not available

11

Briggs & Stratton 24823GS

HHCS, 5/16-24 x 7-7/8" Lg

$18.99

$

Usually ships in 2-12 days

0

13

HHCS, M6 1.0 x 12

$

$

Not available

14

Briggs & Stratton 191785GS

BRACKET, Muffler

$16.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 697815

GASKET, Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 4 left!

0

17

Briggs & Stratton 188301GS

MUFFLER

$152.99

$

Usually ships in 2-12 days

0

18

SHCS, M6 - 1.0 x 20

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT,Vibration Mount

$11.99

$

In Stock, Qty 7

0

22

Briggs & Stratton 86494GS

SCREW,Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10-16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 191790GS

SHIELD, Heat

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10 Lg.

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 191436GS

DECAL, Caution Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, Rear Bearing Carrier

Note: (Includes Item 25)

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 195207GS

KIT, Fuel Hose w/ Clips

$

$

Not available

37

Briggs & Stratton B2153GS

HHCS, 12 - 14 x 7/8" Self Driller

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194398GS

KIT, Fuel Tank Hardware

$10.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT,Valve,Tank Fuel Service

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 193645GS

ASSY,Tank, Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton B4363GS

GAUGE, Fuel

$41.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Operating Instructions

$19.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 191435GS

DECAL, Fuel Shut Off

$8.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 191743AGS

ASSY, Control Panel

Note: (see "AC Control Panel")

$

$

Not available

59

NUT, Palnut

Note: (Purchase locally)

$

$

Not available

900

ENGINE

$

$

Not available

Briggs & Stratton 193354GS

MANUAL, Owners

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483GS

PLUG, 250V, 20A
(Superseded to 100522GS)

Note: Not Illustrated

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS5242

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton BB3061GS

BOTTLE OIL

Note: Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193644GS

KIT, Decals Service

Note: Not Illustrated

$36.99

$

Usually ships in 2-12 days

0
