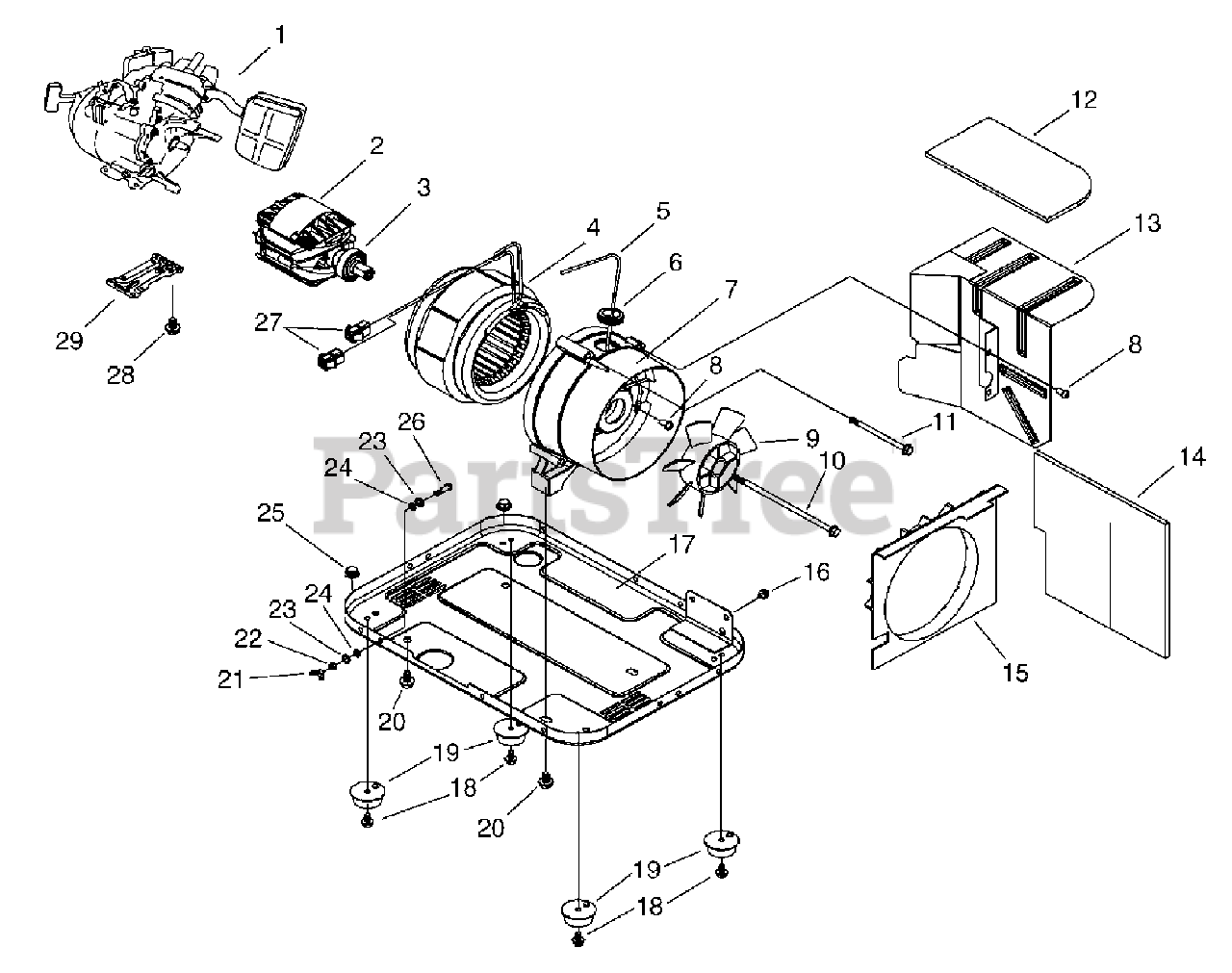

1923-0 - Troy-Bilt 1,000 Watt Portable Generator Main Unit (Part 1) Parts Diagram

1,000 Watt Portable Generator

Main Unit (Part 1) Parts Diagram

  • Title

1

NSP

ENG, MITSUB, 2.4HP

$

$

Not available

2

Briggs & Stratton 187378GS

ROTOR

$140.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 187411GS

BRG

$68.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 187379GS

STATOR

$173.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 187430GS

LEAD, GREEN

$11.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 187409GS

BUSHING, LEAD WIRE

$6.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 187381GS

RBC, 1K

$113.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 187399GS

SCREW, SELF TAP

$2.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 187382GS

FAN, COOLING

$22.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 187388GS

BOLT, RTR

$19.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187389GS

BOLT, STATOR

$5.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 187405GS

INSLTN, HEAT SEALED

$19.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 187384GS

MFFLR, SEALED

$64.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 187407GS

INSLTN, HEAT SEALED

$30.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 187403GS

DUCT, AIR

$50.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 187392GS

SCREW

$1.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 187383GS

BASE, GEN

$113.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 187390GS

BOLT, FLNG

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 187385GS

MNT, VIBR

$18.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 187427GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 187424GS

NUT, WING

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 187423GS

NUT

$1.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 187419GS

WSHR, LOCK

$1.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 187420GS

WSHR

$1.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 187401GS

NUT, FLANGE

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 187415GS

SCREW

$1.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 187413GS

CNNCTR

$8.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 187434GS

HHCS, FLNG
(Superseded to 711487)

$4.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 187431GS

STND, ENG

$124.99

$

Usually ships in 2-12 days

0
