19221 - Toro Whirlwind Walk-Behind Mower (SN: 008000001 - 008999999) (1968) GEAR CASE (21" POW-R-DRIVE) Parts Diagram

Whirlwind Walk-Behind Mower

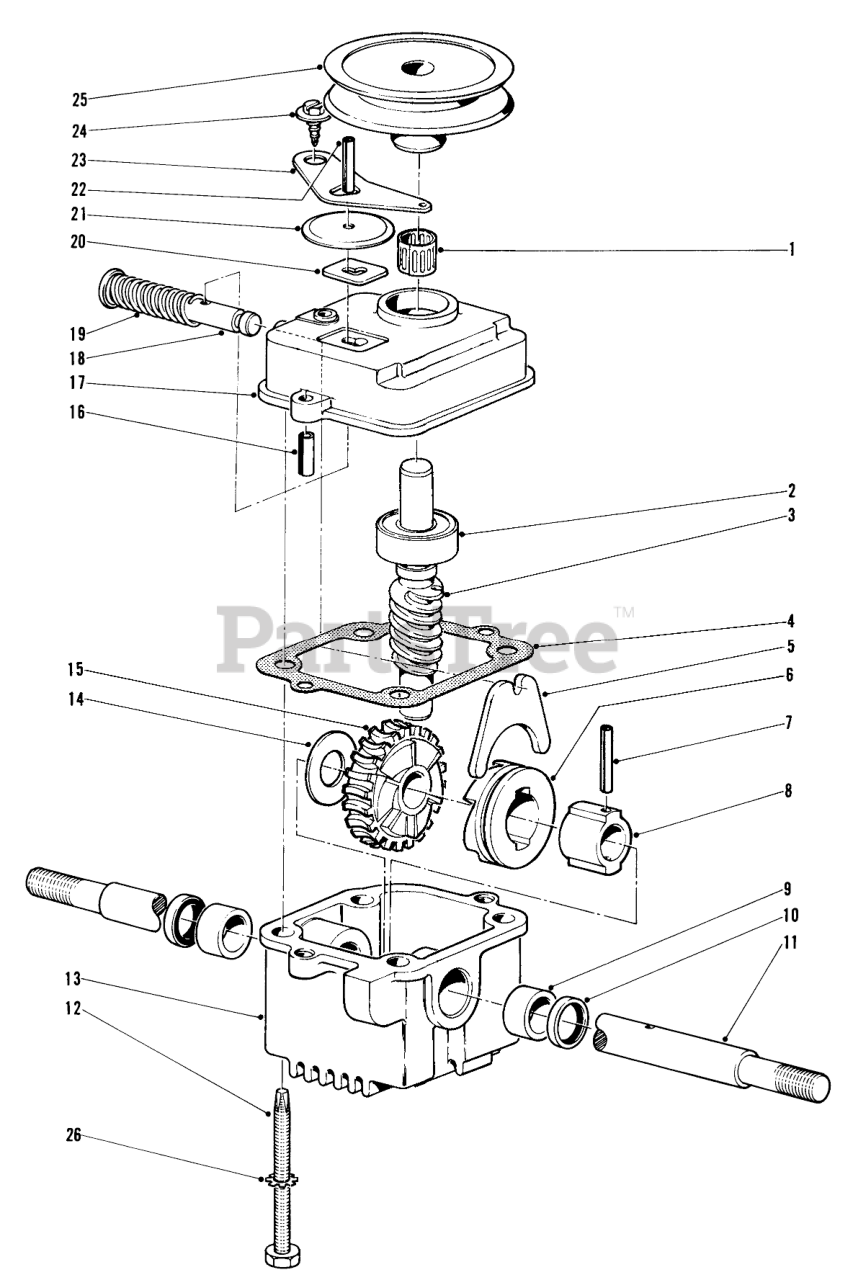

GEAR CASE (21" POW-R-DRIVE) Parts Diagram

  • Title

1

Toro 3290-286

TOLERANCE RING

$

$

Not available

2

Toro 251-144

Bearing
(Superseded to 47-7460)

$72.99

$

In Stock, only 1 left!

0

3

Toro 5-1616

Worm Shaft

$

$

Currently unavailable

4

Toro 3-0734

GASKET

$10.99

$

Usually ships in 3-6 days

0

5

Toro 5-3247

SHIFTER FORK

$

$

Not available

6

Toro 3-0722

Clutch
(Superseded to 19-5660)

$48.99

$

Usually ships in 3-6 days

0

7

Toro 32121-40

PIN-SPRING
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

8

Toro 3-0721

SLEEVE

$

$

Not available

9

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

10

Toro 253-86

Seal
(Superseded to 47-7260)

$8.99

$

In Stock, only 2 left!

0

11

Toro 3-0720

DRIVE SHAFT

$

$

Not available

12

Toro 32140-63

Sems Screw

$

$

Currently unavailable

13

Toro 3-1079

Gear Case
(Superseded to 5-8339)

$

$

Not available

14

Toro 3-0724

THRUST WASHER

$

$

Not available

15

Toro 3-0723

Worm Gear

$

$

Currently unavailable

16

Toro 32121-1

3/16 X 1/2 ROLL PIN

$4.49

$

In Stock, Qty 5

0

17

Toro 5-3283

GEAR CASE COVER

$

$

Not available

18

Toro 5-3248

Shift Rod
(Superseded to 46-8240)

$48.99

$

Usually ships in 3-6 days

0

19

Toro 3-0731

SPRING

$12.99

$

Usually ships in 3-6 days

0

20

Toro 3-0681

LATCH PLATE

$

$

Not available

21

Toro 3-2615

TRANS DUST COVER

$

$

Not available

22

Toro 32121-23

PIN-ROLL

$

$

Not available

23

Toro 5-3252

SHIFTER ARM

$40.99

$

In Stock, only 1 left!

0

24

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

25

Toro 5-1615

PULLEY

$

$

Not available

26

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0
