1920 - Weed Eater Blower CARBURETOR Parts Diagram

Blower

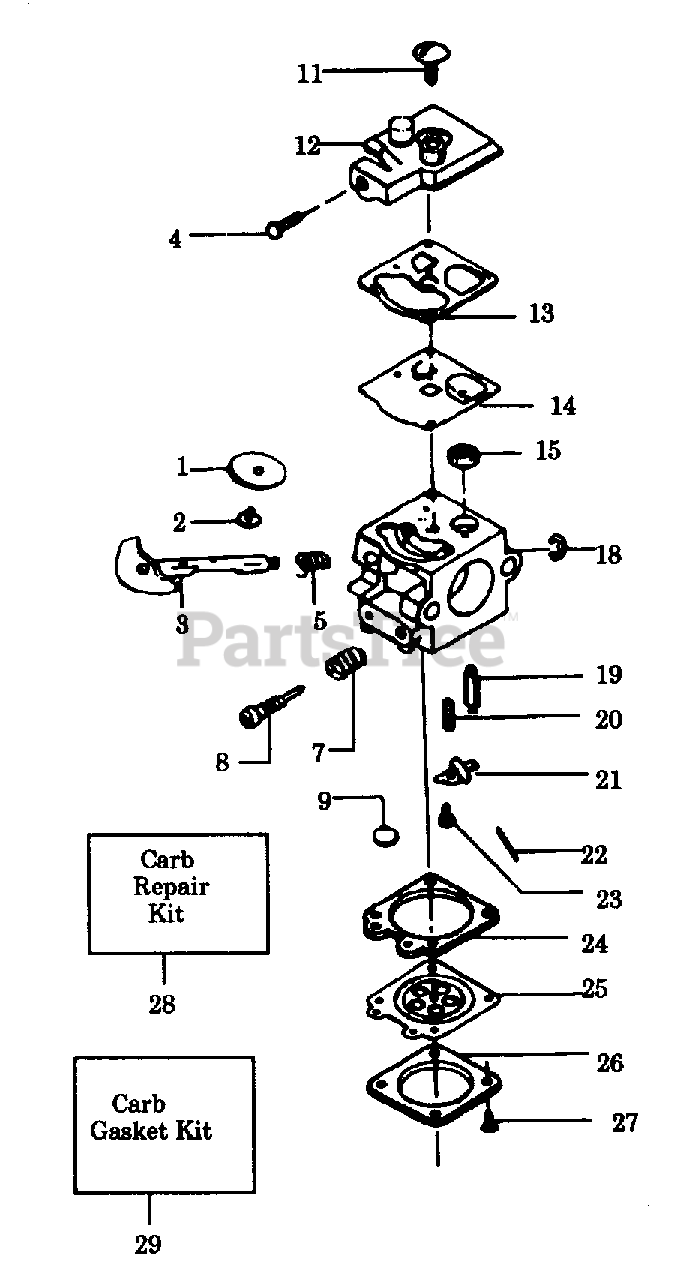

CARBURETOR Parts Diagram

  • Title
1

Poulan 530035197

Valve Throttle

$1.99

$

Usually ships in 3-10 days

0

2

Poulan 530035015

Screw-Throttle Valve

$

$

Not available

3

Poulan 530035132

Shaft Ass'y.-Throttle

$

$

Not available

4

Poulan 530035156

Idle Speed Screw

$1.99

$

Usually ships in 3-10 days

0

5

Poulan 530035138

Spring-Throttle Return

$

$

Not available

7

Poulan 530035200

Spring-High Speed Mixture Needle
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 530035198

Needle-High Speed Mixture

$

$

Not available

9

Poulan 530035162

Plug-5/16 Dia. Welch

$

$

Not available

11

Poulan 530035017

Screw-Pump Cover

$0.99

$

Usually ships in 3-10 days

0

12

Poulan 530035191

Cover-Fuel Pump

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 530035164

Gasket-Fuel Pump
(Superseded to 504130906)

$11.99

$

In Stock, only 3 left!

0

14

Poulan 530035166

Diaphragm-Fuel Pump
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

15

Poulan 530035178

Screen-Fuel Inlet

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530035007

Ring-Throttle Retainer

$

$

Not available

19

Poulan 530035106

Valve-Inlet Needle
(Superseded to 503117001)

$22.99

$

In Stock, Qty 8

0

20

Poulan 530035139

Spring-Metering Lever
(Superseded to 530035188)

$4.99

$

In Stock, Qty 10

0

21

Poulan 530035031

Lever-Metering
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

22

Poulan 530035028

Pin-Metering Lever
(Superseded to 505520125)

$7.99

$

In Stock, only 3 left!

0

23

Poulan 530035016

Screw-Metering Lever Pin

$7.99

$

In Stock, Qty 6

0

24

Poulan 530035151

Gasket-Metering Diaphragm

$3.99

$

In Stock, Qty 8

0

25

Poulan 530035014

Diaphragm-Metering
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

26

Poulan 530035003

Cover-Metering Diaphragm

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 530035021

Screw Ass'y.-Metering Cover

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530035199

Kit-Carb. Kwik Repair (Inc. 13,14,24,25)

$

$

Not available

29

Poulan 530035186

Kit-Carb. Gasket/Diaphragm (Inc. 9,13,14, 19,20,21,22,23,24,25)
(Superseded to 530069844)

$20.99

$

In Stock, Qty 6

0
