1920 H (1692460) - AGCO Garden Tractor, 20hp Main Wiring Harness - 20HP Models Parts Diagram

Garden Tractor, 20hp

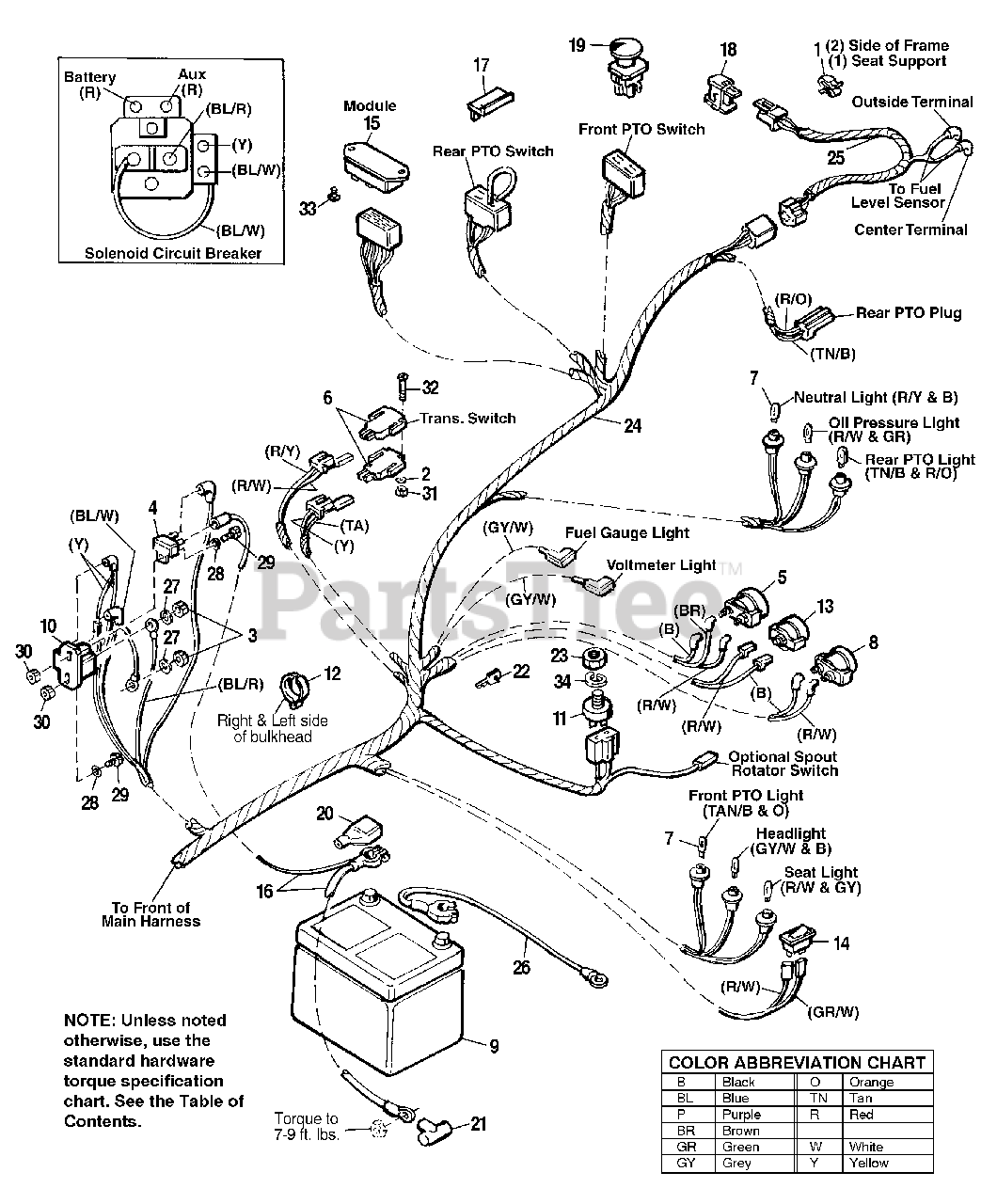

Main Wiring Harness - 20HP Models Parts Diagram

  • Title

1

Simplicity 2172434SM

CLIP, Tinnerman

$4.99

$

Usually ships in 2-12 days

0

2

Simplicity 2820426SM

WASHER, #5

$4.49

$

In Stock, only 1 left!

0

3

Simplicity 2820438SM

NUT, Hex, Jam, 5/16-24, Zinc Plated

$3.49

$

In Stock, only 2 left!

0

4

Simplicity 1665238SM

BREAKER, Circuit

$14.99

$

In Stock, Qty 20+

0

5

Simplicity 1674369SM

GAUGE, Fuel

Note: (Incl. Qty. 1 of Ref. No. 7)

$76.99

$

Usually ships in 2-12 days

0

6

Simplicity 1676123SM

SWITCH, Interlock (Under Dash) Shift Lever

$23.99

$

In Stock, only 1 left!

0

7

Simplicity 1676130SM

LAMP, Indicator

$

$

Not available

8

Simplicity 1676132SM

VOLTMETER

Note: (Incl. Qty. 1 of Ref. No. 7)

$119.99

$

Usually ships in 2-12 days

0

9

Simplicity 1685289SM

BATTERY (400 AMP Cold Crank Rating)

$

$

Not available

10

Simplicity 1686981SM

SOLENOID (12 Volt DC)
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

11

Simplicity 1686734SM

IGNITION SWITCH KIT,

Note: (Incl. Ref. Nos. 22, 23 & 34)

$32.99

$

In Stock, Qty 20+

0

12

Simplicity 1701347

CLIP

$

$

Not available

13

Simplicity 1701525SM

HOUR METER

$

$

Not available

14

Simplicity 1703799SM

TOGGLE SWITCH, Headlight

$31.99

$

In Stock, only 1 left!

0

15

Simplicity 1703972SM

INTERLOCK MODULE

$

$

Not available

16

Simplicity 1708730SM

CABLE (Battery to Solenoid)

$

$

Not available

17

Simplicity 1709188SM

PLUG

$4.99

$

In Stock, only 1 left!

0

18

Simplicity 1704379SM

SAFETY SWITCH (Seat), Operator Present
(Superseded to 1732004SM)

$8.99

$

In Stock, Qty 20+

0

19

Simplicity 1716332SM

SWITCH ASSY., PTO
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

20

Simplicity 1713534SM

PROTECTOR, Battery (Red)

$5.99

$

Usually ships in 2-12 days

0

21

Simplicity 1713535SM

COVER, Terminal

$5.99

$

In Stock, only 1 left!

0

22

Simplicity 1714054SM

IGNITION KEY

$7.49

$

In Stock, Qty 20+

0

23

Simplicity 1714055SM

NUT, Hex, Flange, 5/8

$3.49

$

Usually ships in 2-12 days

0

24

Simplicity 1714284SM

WIRING HARNESS (Main)

$

$

Not available

25

Simplicity 1714285SM

HARNESS, Rear

$

$

Not available

26

Simplicity 1714647SM

CABLE (Battery to Ground)

$

$

Not available

27

Simplicity 1917356SM

LOCKWASHER, 5/16, Zinc Plated
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1923341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

30

Simplicity 1930641SM

NUT, Hex, Flange, Whizlock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 1931003SM

NUT, Hex, #5-40

$2.99

$

In Stock, only 1 left!

0

32

Simplicity 1960014SM

SCREW, #5-24 x 1-1/2

$2.99

$

In Stock, only 2 left!

0

33

Simplicity 1960369SM

SCREW, Hex, Washer Hd., Plastite, #8-16 x 1/2

$3.49

$

In Stock, only 1 left!

0

34

Simplicity 1960547SM

WASHER, Internal Tooth, 5/8

$4.49

$

In Stock, only 3 left!

0

Simplicity 1707389SM

SOCKET

Note: Used in Ref. Nos. 5 & 8. Not shown

$8.99

$

Usually ships in 2-12 days

0
