1920 H (1691180) - AGCO 48" Garden Tractor, 20hp Ultima Brake Control Group (20HP) Parts Diagram

48" Garden Tractor, 20hp Ultima

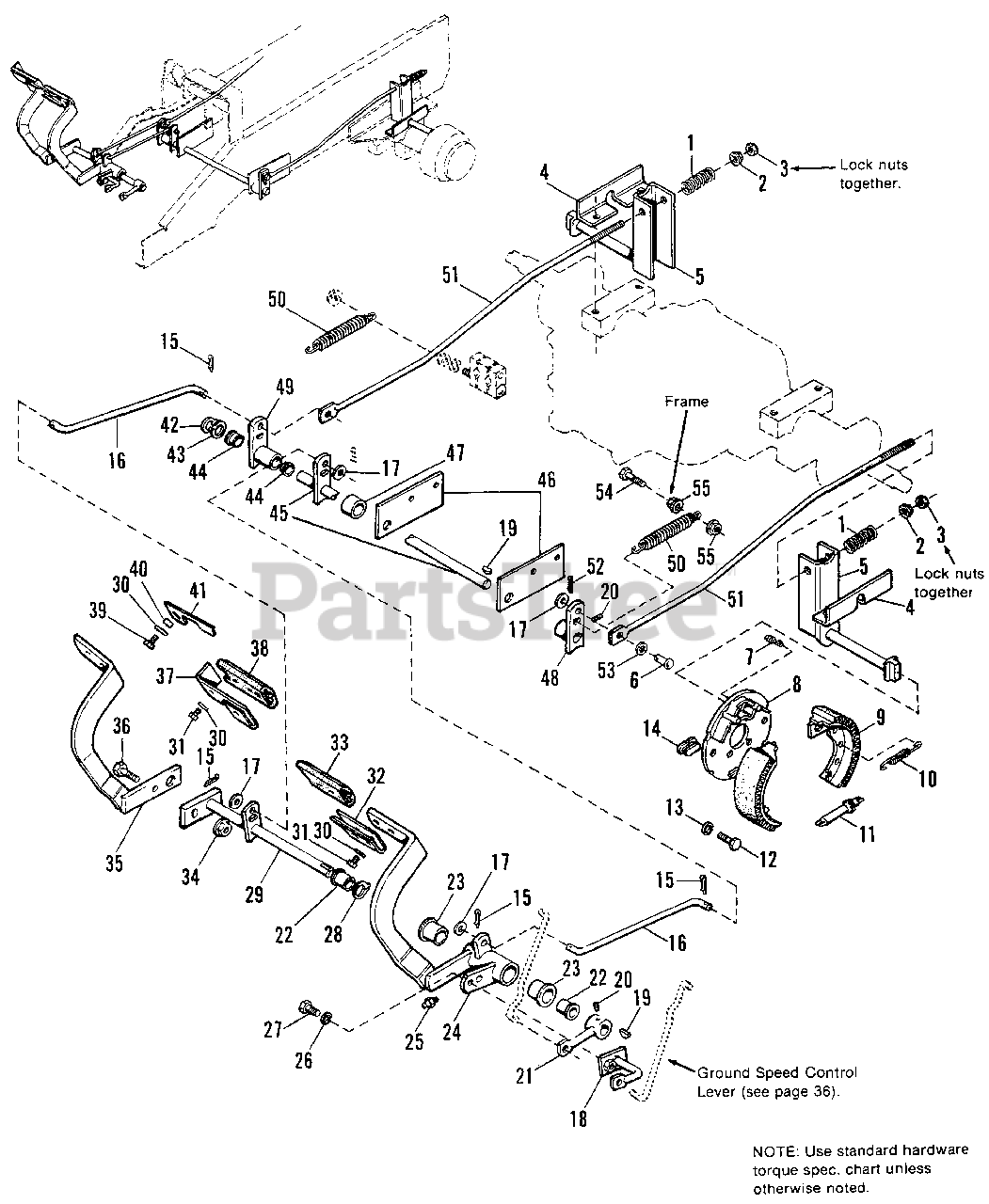

Brake Control Group (20HP) Parts Diagram

  • Title

1

Simplicity 1676171SM

SPRING, Compression

$8.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960515SM

NUT, Large Flange, 1/2-13

$5.49

$

Usually ships in 2-12 days

0

3

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

4

Simplicity 1676187SM

SUPPORT, Actuator

$

$

Not available

5

Simplicity 1676212SM

ACTUATOR ASSY.

$67.99

$

Usually ships in 2-12 days

0

6

Simplicity 1708298SM

PIN

$

$

Not available

7

Simplicity 1676169SM

SPRING, Extension

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 1676155SM

BRAKE SUPPORT ASSY.

$54.99

$

Usually ships in 2-12 days

0

9

Simplicity 1676167SM

BRAKE SHOE & PAD ASSY.

$100.99

$

Usually ships in 2-12 days

0

10

Simplicity 1676168SM

SPRING, Extension

$

$

Not available

11

Simplicity 1676170SM

SCREW ASSY., Brake Adjusting

$32.99

$

Usually ships in 2-12 days

0

12

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

13

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

14

Simplicity 1676292SM

PLUG

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 1918451SM

PIN, Cotter, 1/8-3/4

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 1676349SM

ROD 8 PLATE, Brake

$7.99

$

Usually ships in 2-12 days

0

17

Simplicity 1924940SM

WASHER, Plain,13/32 x 7/8 x 5/64
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1675307SM

ROD ASSY., Lock

$29.99

$

Usually ships in 2-12 days

0

19

Simplicity 2805123SM

KEY, Woodruff #9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

20

Simplicity 1928721SM

SETSCREW, Sq. Hd., 5/16-18 x 1/2

$4.99

$

In Stock, only 3 left!

0

21

Simplicity 1674410SM

ROD ASSY., Pivot Plate

$49.99

$

Usually ships in 2-12 days

0

22

Simplicity 1675306SM

BUSHING, 3/4 x 7/8 x 1

$

$

Not available

23

Simplicity 1675305SM

BUSHING, 1-1/4 x 1-3/4 x 1

$

$

Not available

24

Simplicity 1675815SM

LEVER ASSY., Brake, L.H.

$142.99

$

Usually ships in 2-12 days

0

25

Simplicity 2821133SM

FITTING, Lube, 1/4" Drive
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

26

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1921332SM

CAPSCREW, Hex Hd.
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

28

Simplicity 2832726SM

RING, Retaining

$2.99

$

Usually ships in 2-12 days

0

29

Simplicity 1676857SM

SHAFT ASSY., Brake, R.H.

$74.99

$

Usually ships in 2-12 days

0

30

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

31

Simplicity 1923341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

32

Simplicity 1675338SM

SUPPORT, Lock

$9.49

$

Usually ships in 2-12 days

0

33

Simplicity 1676859SM

PAD, Pedal, Inner

$

$

Not available

34

Simplicity 1935041SM

LOCKNUT, Hex, Whiz, 7/16-14

$1.99

$

Usually ships in 2-12 days

0

35

Simplicity 1675814SM

LEVER ASSY., Brake, R.H.

$109.99

$

Usually ships in 2-12 days

0

36

Simplicity 1920677SM

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 1675337SM

SUPPORT, Pedal Lock

$18.99

$

Usually ships in 2-12 days

0

38

Simplicity 1674423SM

PAD, Pedal

$34.99

$

Usually ships in 2-12 days

0

39

Simplicity 1921960SM

CAPSCREW, Hex Hd., 1/4-20 x 1

$3.49

$

In Stock, only 1 left!

0

40

Simplicity 1675339SM

SPACER

$21.99

$

Usually ships in 2-12 days

0

41

Simplicity 1675336SM

LOCK, Pedal

$6.49

$

Usually ships in 2-12 days

0

42

Simplicity 2827732SM

RING, Retaining
(Superseded to 703979)

$4.49

$

In Stock, Qty 10

0

43

Simplicity 1960114SM

WASHER, Plain, 3/4
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

44

Simplicity 1671737SM

BUSHING

$4.99

$

In Stock, only 1 left!

0

45

Simplicity 1674448

SHAFT 8 LEVER ASSY., Brake Pivot

$

$

Not available

46

Simplicity 1676289SM

SUPPORT, Brake Cross Shaft

$4.99

$

Usually ships in 2-12 days

0

47

Simplicity 1676346SM

SPACER, Special

$3.49

$

Usually ships in 2-12 days

0

48

Simplicity 1674407SM

LEVER ASSY., Brake

$49.99

$

Usually ships in 2-12 days

0

49

Simplicity 1676347SM

LEVER ASSY., Brake

$49.99

$

Usually ships in 2-12 days

0

50

Simplicity 1676351SM

SPRING, Extension

$19.99

$

Usually ships in 2-12 days

0

51

Simplicity 1685333

ROD ASSY., (Incl. Ref. Nos. 6 & 53)

$

$

Not available

52

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

53

Simplicity 1922755SM

WASHER, 13/32
(Superseded to 704128)

$4.99

$

In Stock, Qty 10

0

54

Simplicity 1930595SM

CAPSCREW, Hex, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

55

Simplicity 1935048SM

NUT, Hex Flangelock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0
