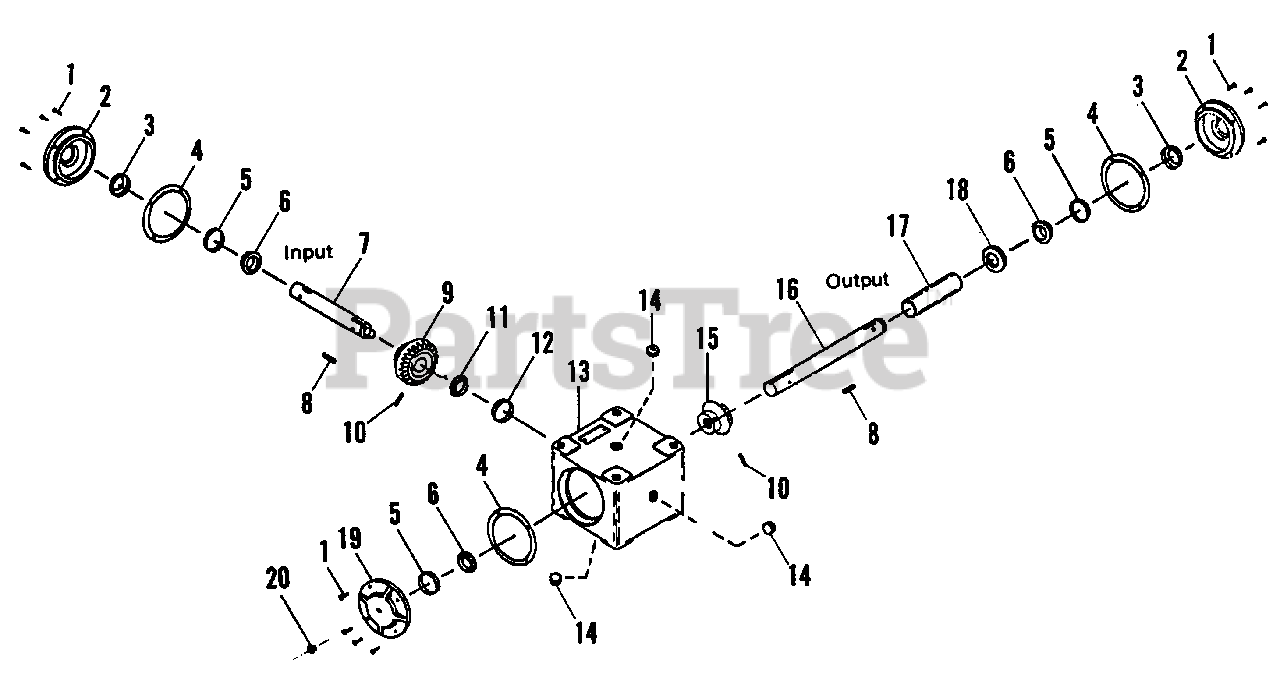

1920 (1691394) - AGCO 48" Garden Tractor, 20hp 42", 48" & 60" Mower, Drive Assy. (Curtis Gear Box) Parts Diagram

48" Garden Tractor, 20hp

42", 48" & 60" Mower, Drive Assy. (Curtis Gear Box) Parts Diagram

  • Title

1

Simplicity 1930591SM

SCREW, Hex Whizloc Flange, 5/16 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

2

Simplicity 1717069SM

CAP, Housing

$797.99

$

Usually ships in 2-12 days

0

3

Simplicity 2118118SM

SEAL, Shaft, 1 x 1-1/2 x 5/16

$10.99

$

In Stock, Qty 20+

0

4

Simplicity 1700895SM

GASKET, .015

Note: Use gaskets as required.

$15.99

$

Usually ships in 2-12 days

0

4

Simplicity 1700896SM

GASKET, .005

Note: Use gaskets as required.

$19.99

$

Usually ships in 2-12 days

0

4

Simplicity 1700897SM

GASKET, .003

Note: Use gaskets as required.

$14.99

$

Usually ships in 2-12 days

0

5

Simplicity 2170836SM

BEARING CUP
(Superseded to 5020883SM)

$9.49

$

In Stock, Qty 9

0

6

Simplicity 2170835SM

BEARING, Cone

$

$

Not available

7

Simplicity 1717069SM

SHAFT, Pinion

$797.99

$

Usually ships in 2-12 days

0

8

Simplicity 2154096SM

KEY, 1/4 x 1/4 x 7/8

$6.99

$

In Stock, only 2 left!

0

9

Simplicity 1717069SM

GEAR, Bevel

$797.99

$

Usually ships in 2-12 days

0

10

Simplicity 916796

ROLL PIN, 5/16 x 2

$

$

Not available

11

Simplicity 1700902

BEARING, Cone

$

$

Not available

12

Simplicity 1700903SM

BEARING CUP

$20.99

$

Usually ships in 2-12 days

0

13

Simplicity 1717069SM

HOUSING

$797.99

$

Usually ships in 2-12 days

0

14

Simplicity 2801652SM

PLUG, Sq. Hd., Solid 1/4 NPT

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 1717069SM

GEAR, Pinion

$797.99

$

Usually ships in 2-12 days

0

16

Simplicity 1717069SM

SHAFT, Output

$797.99

$

Usually ships in 2-12 days

0

17

Simplicity 1717069SM

SPACER

$797.99

$

Usually ships in 2-12 days

0

18

Simplicity 1717069SM

WASHER

$797.99

$

Usually ships in 2-12 days

0

19

Simplicity 1717069SM

CAP, Housing

$797.99

$

Usually ships in 2-12 days

0

20

Simplicity 1678690SM

PLUG, Vent, 1/8-27

$13.99

$

Usually ships in 2-12 days

0
