1919-0 - Troy-Bilt 5,550 Watt Portable Generator Main Unit Parts Diagram

5,550 Watt Portable Generator

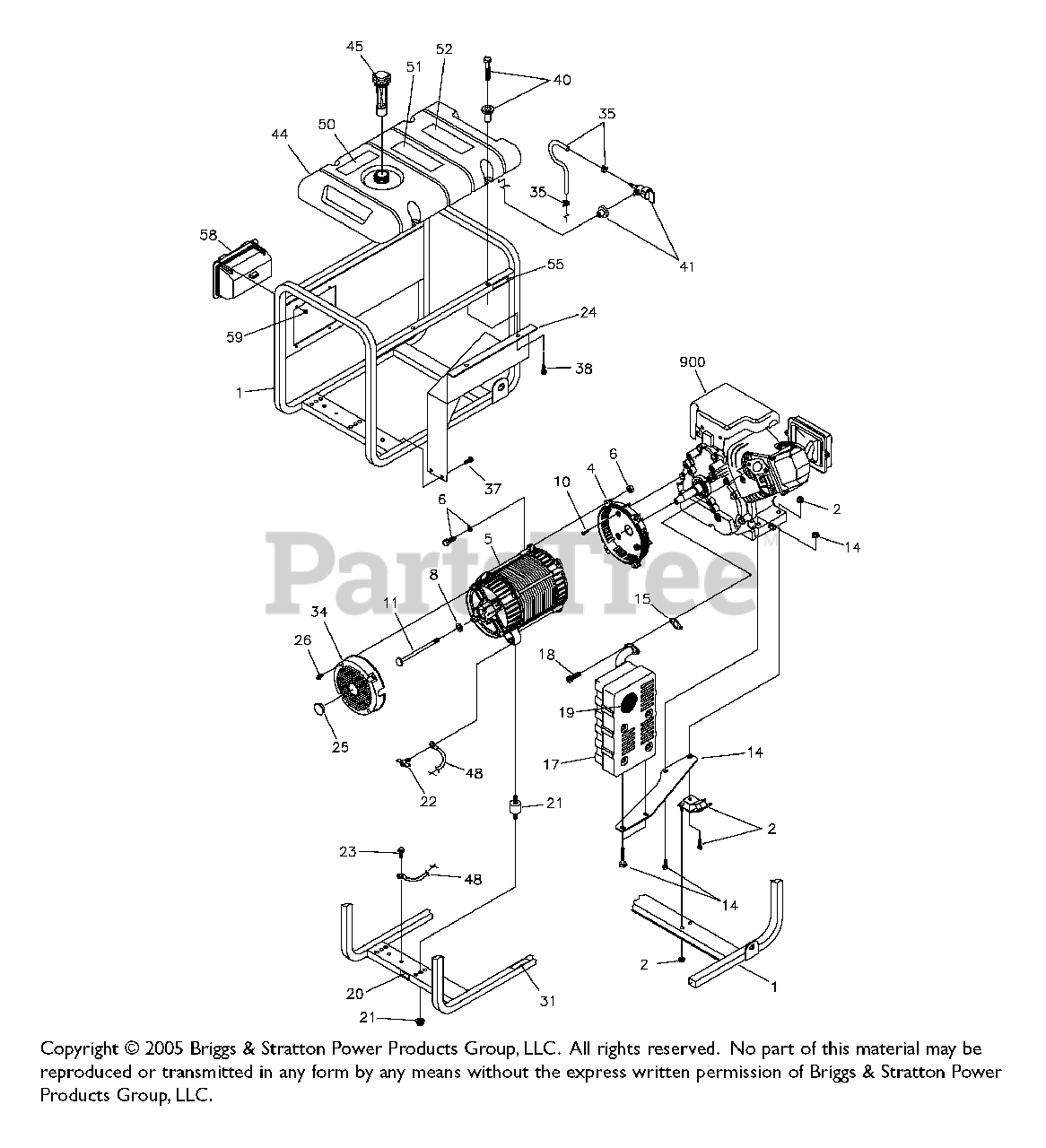

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton P194766GS

CRADLE
(Superseded to P197628GS)

$103.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT,Vibration, Mount, 45°.

$13.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY,Alternator

Note: (see "Alternator")

$

$

Not available

6

Briggs & Stratton 194151GS

KIT, Hrdwr Mounting Adapter

$22.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

10

SBHCS, 3/8-16 x 1.0 Lg.

Note: (Purchase locally)

$

$

Not available

11

Briggs & Stratton 187365FGS

HHCS, 5/16-24 x 7.44

$17.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 194729GS

KIT, Muffler Bracket w/ Hardware

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

SCREW, 5/16 - 18 x 3/4"

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT,Vibration Mount

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 86494GS

SCREW,Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 192794GS

SHIELD, Heat

$79.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

SCREW, M5-0.8 x 10,Taptite

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 191436GS

DECAL, Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, Bearing Carrier

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 194397GS

KIT, Fuel Hose, Formed w/ Clamps

$

$

Not available

37

Briggs & Stratton 192376GS

SCREW, 12-24 x 1/2 Thrd forming

$3.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 56893GS

CRIMPTITE, 10 - 24 x 1/2

$3.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 194398GS

KIT, Fuel Tank Hardware

$10.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT,Valve, Fuel Tank

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 193668GS

ASSY,Tank, Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 191435GS

DECAL, Shut-Off, Fuel

$8.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 190355GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

59

NUT, Palnut, 3/16"

Note: (Purchase locally)

$

$

Not available

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton MS5242

MANUAL, Engine

Note: Parts Not Illustrated

$

$

Not available

Briggs & Stratton 192258GS

MANUAL, Owners

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Parts Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 188971GS

CORD, Extension, 120/240V, 30A
(Superseded to 191895DGS)

Note: Parts Not Illustrated

$231.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193667GS

KIT, Decals

Note: Parts Not Illustrated

$22.99

$

Usually ships in 2-12 days

0
