1918 H (1692523) - AGCO Garden Tractor, 18hp Implement Lift Group Parts Diagram

Garden Tractor, 18hp

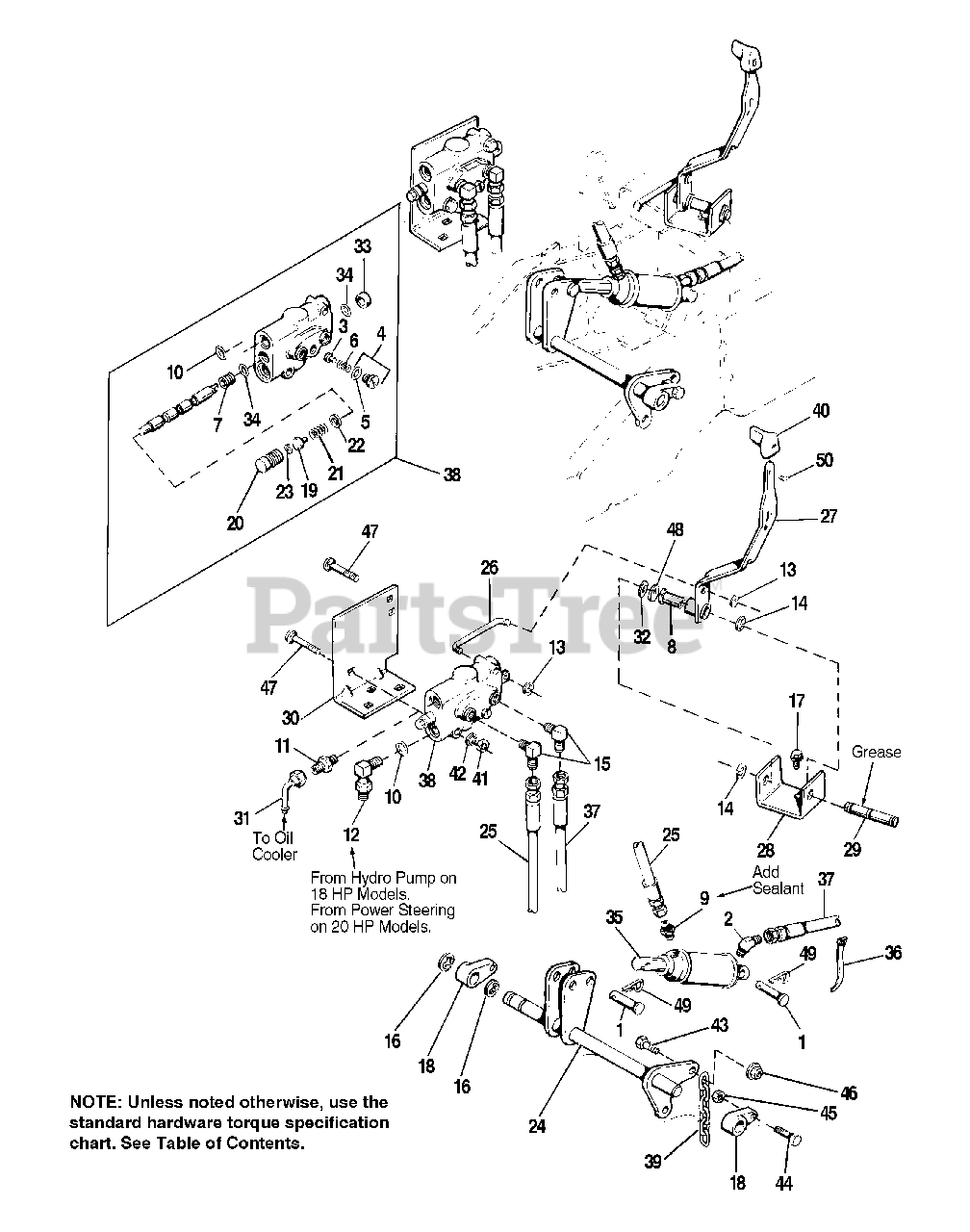

Implement Lift Group Parts Diagram

  • Title

1

Simplicity 1722819SM

PIN, Yoke, 5/8 x 2-1/16

$6.99

$

In Stock, Qty 5

0

2

Simplicity 2172320SM

FITTING, Elbow 45°, 1/8-27 x 1/2-70

$22.99

$

Usually ships in 2-12 days

0

3

Simplicity 2174130SM

PLUNGER, Lift Check

$11.99

$

Usually ships in 2-12 days

0

4

Simplicity 2174131SM

PLUG & O-RING ASSY.

Note: (Incl. Ref. No. 5). Seal Repair Kit, part no. 1679732, contains Ref. Nos. 4, 5, 23, 33 & 34.

$12.99

$

Usually ships in 2-12 days

0

5

Simplicity 2174133SM

"O" RING

Note: Seal Repair Kit, part no. 1679732, contains Ref. Nos. 4, 5, 23, 33 & 34.

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 2174134SM

SPRING

$11.99

$

Usually ships in 2-12 days

0

7

Simplicity 174137

BUSHING

$

$

Not available

8

Simplicity 2175731SM

BUSHING, Nylon, 41/64" I.D. x 49/64" O.D. x 1-1/2"

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 2819766SM

FITTING, Hydraulic

$6.99

$

Usually ships in 2-12 days

0

10

Simplicity 2821349SM

"O" RING

$3.49

$

In Stock, only 1 left!

0

11

Simplicity 2821409SM

FITTING, Hydraulic

$5.99

$

Usually ships in 2-12 days

0

12

Simplicity 2823905SM

FITTING, Hydraulic

$61.99

$

Usually ships in 2-12 days

0

13

Simplicity 2827789SM

RING, Retaining, "E" Type, 3/16

$3.99

$

In Stock, only 3 left!

0

14

Simplicity 2827793SM

RING, Retaining, "E" Type, 5/8
(Superseded to 703977)

$4.99

$

In Stock, Qty 17

0

15

Simplicity 2828812SM

FITTING, Hydraulic

$12.99

$

In Stock, only 1 left!

0

16

Simplicity 2834712SM

"E" RING, External

$4.99

$

In Stock, only 2 left!

0

17

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1670728SM

BEARING, Lift Shaft

$12.99

$

Usually ships in 2-12 days

0

19

Simplicity 1673833SM

SPACER

$20.99

$

Usually ships in 2-12 days

0

20

Simplicity 1673834SM

CAP, Valve Assy.

$28.99

$

Usually ships in 2-12 days

0

21

Simplicity 1673835SM

SPRING

$

$

Not available

22

Simplicity 1673836SM

WASHER

$

$

Not available

23

Simplicity 1673837SM

RING, Retaining

Note: Seal Repair Kit, part no. 1679732, contains Ref. Nos. 4, 5, 23, 33 & 34.

$3.49

$

Usually ships in 2-12 days

0

24

Simplicity 1674425SM

LIFT ASSY., Cylinder

$

$

Not available

25

Simplicity 1675157SM

HOSE ASSY., Hyd.

Note: (Valve to rear of steering cylinder)

$86.99

$

In Stock, only 1 left!

0

26

Simplicity 1675944SM

ROD, Control

$

$

Not available

27

Simplicity 1675970SM

CONTROL LEVER ASSY.

$38.99

$

Usually ships in 2-12 days

0

28

Simplicity 1675974SM

BRACKET, Support

$8.99

$

Usually ships in 2-12 days

0

29

Simplicity 1675975SM

SHAFT, Control Support

$31.99

$

Usually ships in 2-12 days

0

30

Simplicity 1676279SM

PLATE, Valve Mount

$

$

Not available

31

Simplicity 1676397SM

FITTING, Hydraulic

$17.99

$

Usually ships in 2-12 days

0

32

Simplicity 1678100SM

WASHER, Spring

$7.99

$

Usually ships in 2-12 days

0

33

Simplicity 1679138SM

WIPER, Scraper
(Superseded to 1679732SM)

Note: Seal Repair Kit, part no. 1679732, contains Ref. Nos. 4, 5, 23, 33 & 34.

$7.49

$

Usually ships in 2-12 days

0

34

Simplicity 1679142SM

"O" RING

Note: Seal Repair Kit, part no. 1679732, contains Ref. Nos. 4, 5, 23, 33 & 34.

$5.49

$

Usually ships in 2-12 days

0

35

Simplicity 1685347SM

CYLINDER, Hyd., Lift

Note: (Incl. Ref. No.2)

$494.99

$

Usually ships in 2-12 days

0

36

Simplicity 1701011SM

TIE, Plastic

$5.49

$

In Stock, only 2 left!

0

37

Simplicity 1702392SM

HOSE ASSY., Hyd.

Note: (Valve to front of steering cylinder)

$84.99

$

Usually ships in 2-12 days

0

38

Simplicity 1708010SM

VALVE ASSY., Control

Note: (Incl. Ref. Nos. 3 - 7, 11, 19 - 23, 33 & 34)

$

$

Not available

39

Simplicity 1708266ASM

CHAIN, Lift

$9.99

$

Usually ships in 2-12 days

0

40

Simplicity 1713847SM

KNOB, Control Handle

$19.99

$

Usually ships in 2-12 days

0

41

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

42

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

43

Simplicity 1921210SM

CAPSCREW, 3/8-16 x 1.0
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

44

Simplicity 1921977SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 17

0

45

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

46

Simplicity 1930645SM

NUT, Hex, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

47

Simplicity 1931323SM

CARRIAGE BOLT, 1/4-20 x 2

$4.49

$

Usually ships in 2-12 days

0

48

Simplicity 1960020SM

WASHER, Plain, 21/32 I.D. x 1-1/4 O.D. x 1/16

$4.49

$

In Stock, Qty 20+

0

49

Simplicity 1960033SM

CLIP, Hairpin

$3.49

$

In Stock, Qty 20+

0

50

Simplicity 1960106SM

SCREW, Plastite, 1/4 x 1

$2.99

$

Usually ships in 2-12 days

0

Simplicity 1679732SM

Seal Repair Kit

Note: Contains Ref. Nos. 4, 5, 23, 33 & 34.

$7.49

$

Usually ships in 2-12 days

0
