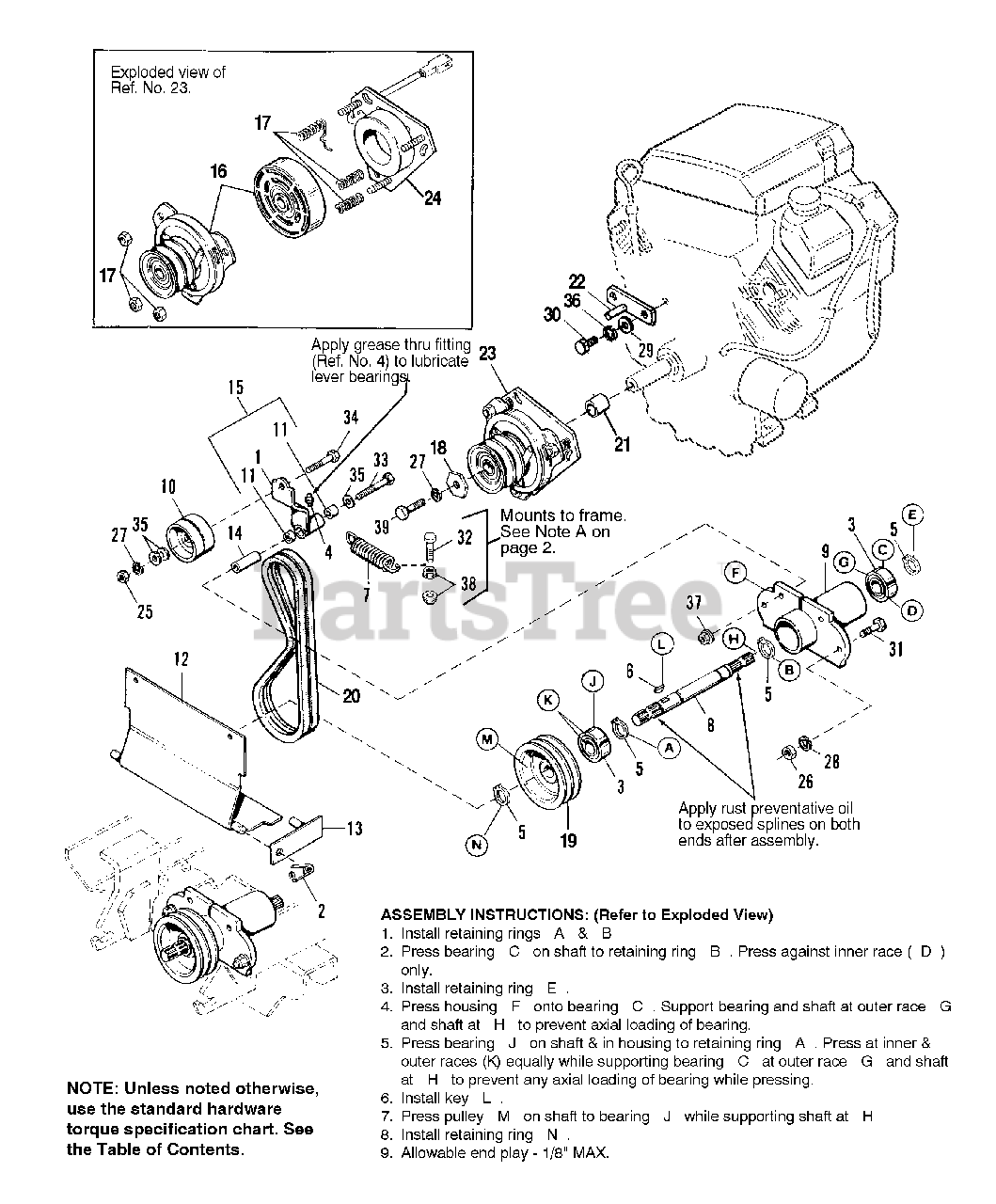

1918 H (1692522) - AGCO 48" Garden Tractor, 18hp Front PTO - 18HP Briggs & Stratton Parts Diagram

48" Garden Tractor, 18hp

Front PTO - 18HP Briggs & Stratton Parts Diagram

  • Title

1

IDLER ARM ASSY. (See Ref. No. 15)

$

$

Not available

2

Simplicity 2176012SM

CLIP, Pin, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 2528126

BEARING, Ball, 1-3/16 x 2-7/16 x 5/8

$

$

Not available

4

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

5

Simplicity 2827742SM

RING
(Superseded to 7010965YP)

$4.49

$

In Stock, Qty 6

0

6

Simplicity 2830671SM

KEY, HI PRO, 1/4 x 3/4

$8.49

$

In Stock, only 1 left!

0

7

Simplicity 1664661SM

SPRING, Tension

$

$

Not available

8

Simplicity 1674103SM

SHAFT, Spline, PTO

$104.99

$

Usually ships in 2-12 days

0

9

Simplicity 1674105SM

HOUSING & PLATE ASSY.

$

$

Not available

10

Simplicity 1674736SM

PULLEY, Idler, 3-1/4 Dia.

$55.99

$

In Stock, only 1 left!

0

11

Simplicity 1675352SM

BUSHING, Idler Arm

$5.99

$

Usually ships in 2-12 days

0

12

Simplicity 1676546SM

GUARD ASSY.
(Superseded to 1676546ASM)

$69.99

$

Usually ships in 2-12 days

0

13

Simplicity 1676549ASM

LINK & PIN ASSY., Guard

$23.99

$

Usually ships in 2-12 days

0

14

Simplicity 1676833SM

SPACER, 3/8 x 5/8 x 1-3/4

$27.99

$

Usually ships in 2-12 days

0

15

Simplicity 1676837SM

IDLER ARM ASSY.

Note: (Incl. Ref. Nos. 1 & 11)

$

$

Not available

16

Simplicity 1714637SM

ROTOR ASSY. & ARMATURE ASSY. KIT

Note: Repair Parts for Ref. No. 23, Electric Clutch, part no. 1714637.

$683.99

$

Usually ships in 2-12 days

0

17

Simplicity 1707587SM

ACCESSORY KIT

Note: (Qty. 3 each, nuts & springs). Repair Parts for Ref. No. 23, Electric Clutch, part no. 1714637.

$9.99

$

Usually ships in 2-12 days

0

18

Simplicity 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

19

Simplicity 1708523SM

PULLEY, PTO Drive

$83.99

$

Usually ships in 2-12 days

0

20

Simplicity 1708529SM

BELT SET, PTO Drive (Matched Set of 2)

$54.99

$

In Stock, only 2 left!

0

21

Simplicity 1714624SM

SPACER

$11.99

$

In Stock, only 1 left!

0

22

Simplicity 1714629SM

PLATE ASSY.

$40.99

$

Usually ships in 2-12 days

0

23

Simplicity 1714637SM

ELECTRIC CLUTCH (PTO)

Note: (Incl. Ref. Nos. 16, 17 & 24)

$683.99

$

Usually ships in 2-12 days

0

24

Simplicity 1709294SM

FIELD ASSY.
(Superseded to 1714637SM)

Note: Repair Parts for Ref. No. 23, Electric Clutch, part no. 1714637.

$683.99

$

Usually ships in 2-12 days

0

25

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

Usually ships in 2-12 days

0

26

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

27

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

28

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

29

Simplicity 1918199SM

LOCKWASHER, 15/32
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1920676SM

CAPSCREW, 7/16-14 x 1

$5.49

$

In Stock, Qty 16

0

31

Simplicity 1921176SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/4, Gr. 5

$4.99

$

In Stock, only 1 left!

0

32

Simplicity 1921971SM

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

33

Simplicity 1921972SM

SCREW, Hex Hd., 3/8-16 x 2-1/2, Gr. 5
(Superseded to 703873)

$4.49

$

In Stock, only 3 left!

0

34

Simplicity 1923701SM

SCREW, Hex Hd., 3/8-16 x 2
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

35

Simplicity 1924940SM

WASHER, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

36

Simplicity 1925125SM

WASHER, 15/32 I.D. x 15/16 O.D. x 7/64 Thk.

$6.49

$

In Stock, only 2 left!

0

37

Simplicity 1930645SM

NUT, Hex, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

38

Simplicity 1931211SM

NUT, Hex, Flange Whizlock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

39

Simplicity 1960345SM

SCREW, Hex Hd., 3/8-24 x 2, Gr. 5

$2.99

$

In Stock, only 1 left!

0
