19173 - Toro Guardian Walk-Behind Mower (SN: 003000001 - 003999999) (1973) HANDLE ASSEMBLY MODEL 19173 Parts Diagram

Guardian Walk-Behind Mower

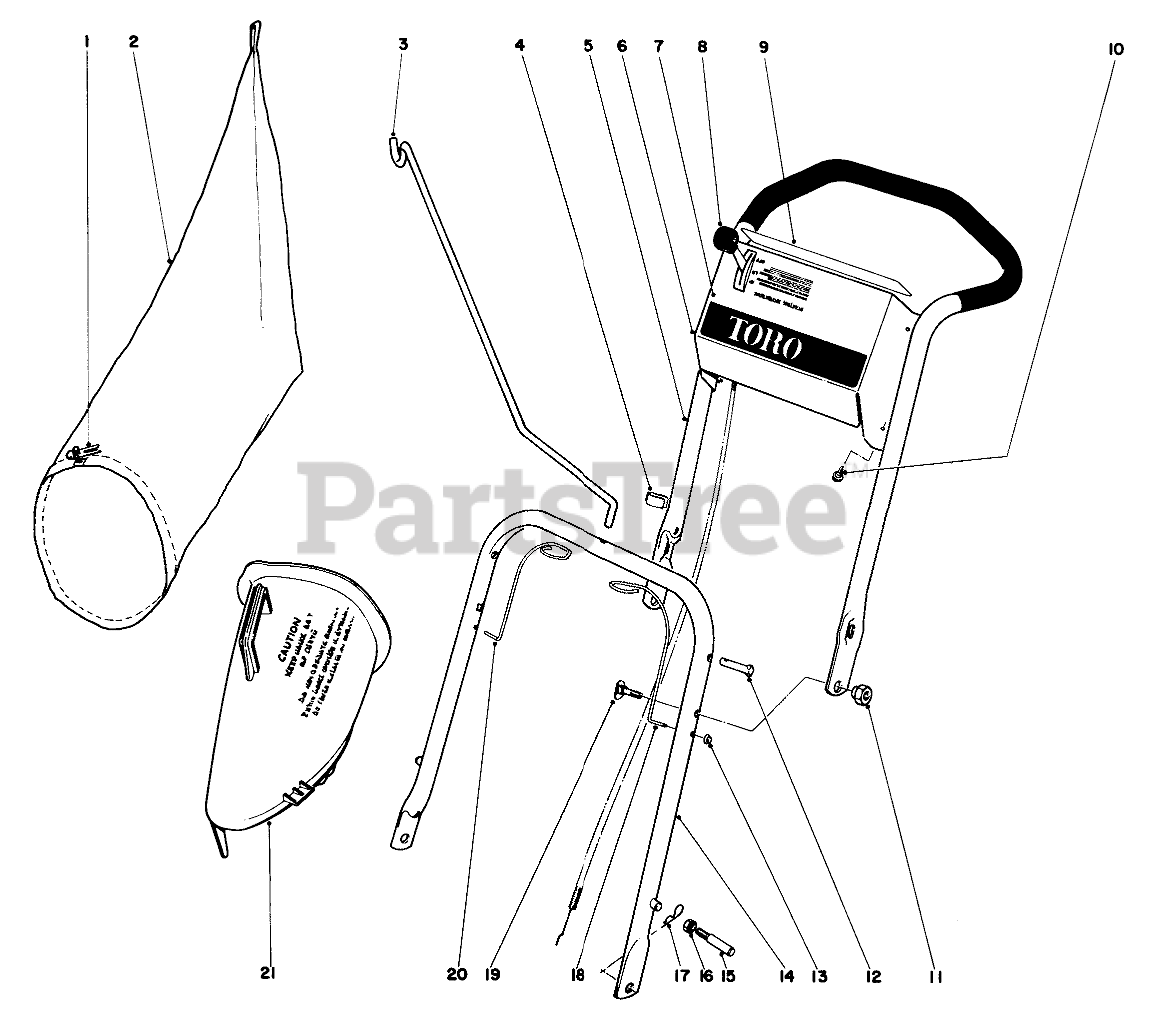

HANDLE ASSEMBLY MODEL 19173 Parts Diagram

  • Title

1

Toro 3-2781

BAG CORD FASTENER

$6.99

$

Usually ships in 3-6 days

0

2

Toro 5-8679

Grass Bag (Incl. Ref. #1)

$

$

Not available

3

Toro 17-4610

Bag Hanger Rod

$

$

Currently unavailable

4

Toro 218465

Clip

$

$

Currently unavailable

5

Toro 17-4390

Upper Handle
(Superseded to 17-4400)

$199.99

$

Usually ships in 3-6 days

0

6

Toro 17-4510

Control Plate

$

$

Not available

7

Toro 17-4540

Decal, Control Plate

$

$

Currently unavailable

8

Toro 17-4320

Throttle Control
(Superseded to 46-6010)

$60.99

$

Usually ships in 3-6 days

0

9

Toro 17-4800

Decal, Safety

$

$

Currently unavailable

10

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

11

Toro 17-7010

Pivot Nut

$

$

Not available

12

Toro 17-4680

Latch Pin

$

$

Not available

13

Toro 3290-299

CLIP

$

$

Not available

14

Toro 17-7500

Lower Handle

$

$

Currently unavailable

15

Toro 6-6940

Handle Pin
(Superseded to 17-9380)

Note: Replacement Parts Only

$

$

Not available

16

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Replacement Parts Only

$0.99

$

Usually ships in 3-6 days

0

17

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

18

Toro 17-4660

Latch Spring L.H.

$

$

Currently unavailable

19

Toro 6-6330

HANDLE SCREW

$

$

Not available

20

Toro 17-4670

Latch Spring R.H.

$

$

Not available

21

Toro 12-0750

BAG ATTACHMENT

$137.99

$

Usually ships in 3-6 days

0
