19173 - Toro Guardian Walk-Behind Mower (SN: 003000001 - 003999999) (1973) ENGINE TECUMSEH MODEL LAV30-30500K Parts Diagram

Guardian Walk-Behind Mower

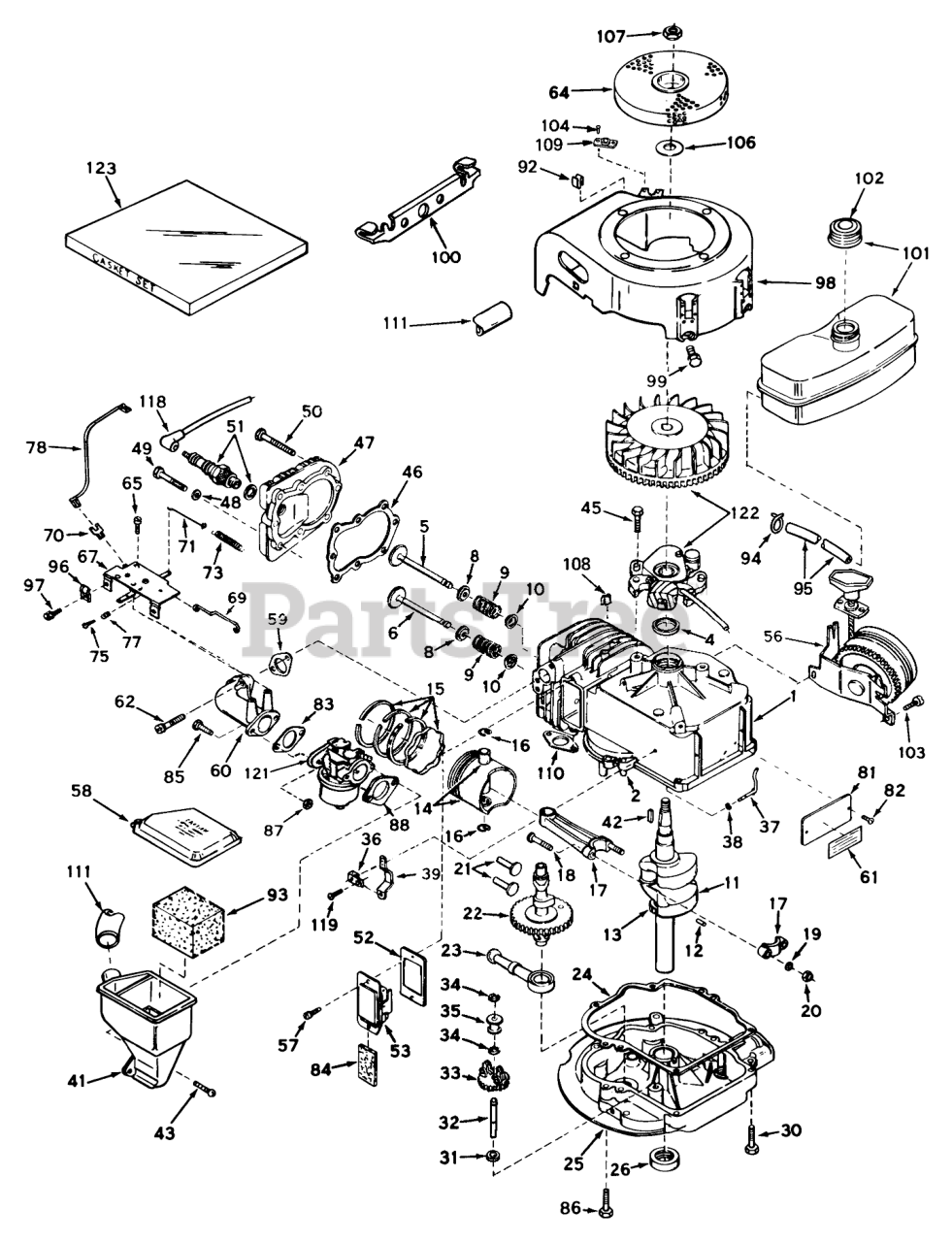

ENGINE TECUMSEH MODEL LAV30-30500K Parts Diagram

  • Title

1

Tecumseh 33394

Cylinder Assy. (Incl #2, 4 & 103)

$

$

Currently unavailable

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

4

Tecumseh 29183

OIL SEAL

$7.49

$

In Stock, only 1 left!

0

5

Tecumseh 29314A

Valve, Intake (Standard) (Incl. #8, 9, & 10)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

5

Tecumseh 29315B

Valve, Intake (1/32" oversize) (Incl. #8, 9, & 10)
(Superseded to 29315C)

$

$

Not available

6

Tecumseh 29313B

Valve, Exhaust (Standard) (Incl. #8, 9, & 10)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315B

Valve, Exhaust (1/32" oversize) (Incl. #8, 9, & 10)
(Superseded to 29315C)

$

$

Not available

8

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

9

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

10

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, only 1 left!

0

11

Tecumseh 29223

Crankshaft Assy. (Incl. #12 & 13)
(Superseded to 31439)

$

$

Currently unavailable

12

Tecumseh 29783

Pin, Groove

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27613

Gear, Crankshaft

$

$

Currently unavailable

14

Tecumseh 31761

Piston & Pin Assy. (Standard) (Incl. 2 of #16)
(Superseded to 31761B)

$40.99

$

Usually ships in 3-12 days

0

14

Tecumseh 32662

Piston & Pin Assy. (.010 oversize) (Incl. 2 of #16)
(Superseded to 32662B)

$30.99

$

Usually ships in 3-12 days

0

14

Tecumseh 32663

Piston & Pin Assy. (.020 oversize) (Incl. 2 of #16)
(Superseded to 32663B)

$

$

Not available

15

Tecumseh 27565

Ring Set, Piston (Std.)

$24.99

$

Usually ships in 3-12 days

0

15

Tecumseh 27566

Ring Set, Piston (.010 o.s.)

$18.99

$

Usually ships in 3-12 days

0

15

Tecumseh 27567

Ring Set, Piston (.020 o.s.)

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 30963B

Rod Assy., Connecting (Incl. #18, 19 & 20)

$29.99

$

Usually ships in 3-12 days

0

18

Tecumseh 26706

Bolt, Connecting

$

$

Currently unavailable

19

Tecumseh 20747

Washer

$

$

Currently unavailable

20

Tecumseh 27573

LOCKNUT

$

$

Currently unavailable

21

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

22

Tecumseh 33148A

Camshaft (Compression Release
(Superseded to 35990)

$39.99

$

Usually ships in 3-12 days

0

23

Tecumseh 29914

Oil Pump ASM

$9.49

$

Usually ships in 3-12 days

0

24

Tecumseh 26750A

Gasket, Mounting
(Superseded to 37609)

Note: Indicates items included in Gasket Set Part No.33236.

$2.99

$

Usually ships in 3-12 days

0

25

Tecumseh 33173

Flange Assy., Mounting (Incl. #26 & 32)
(Superseded to 37620)

$80.99

$

Usually ships in 3-12 days

0

26

Tecumseh 26208

Seal Oil

$8.49

$

In Stock, only 1 left!

0

30

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

31

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

32

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

33

Tecumseh 30591

Gear Assy., Governor (Incl. #31)

$13.99

$

In Stock, only 1 left!

0

34

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, Qty 6

0

35

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 30589

Rod, Governor (Incl. #38)

$5.49

$

In Stock, only 1 left!

0

38

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

39

Tecumseh 32651

Governor Lever

$

$

Not available

41

Tecumseh 33005

Body, Air Cleaner

$18.99

$

Usually ships in 3-12 days

0

42

Tecumseh 27247

Key Flywheel
(Superseded to 610961)

$1.49

$

In Stock, Qty 20+

0

43

Tecumseh 650707

Screw, Fil. Hd. Sems

$1.99

$

Usually ships in 3-12 days

0

45

Tecumseh 650489

Screw

$

$

Not available

46

Tecumseh 29953B

Gasket-Cylinder Head
(Superseded to 29953C)

Note: Indicates items included in Gasket Set Part No.33236.

$16.99

$

In Stock, only 1 left!

0

47

Tecumseh 30579

CYLINDER HEAD
(Superseded to 36438)

$

$

Not available

48

Tecumseh 26073

Washer

$

$

Not available

49

Tecumseh 6021

Screw
(Superseded to 6021A)

$1.99

$

In Stock, only 3 left!

0

50

Tecumseh 650694

Screw Hex Hd. Cap
(Superseded to 650694A)

$3.49

$

In Stock, Qty 20+

0

51

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 17

0

52

Tecumseh 31619

Gasket Breather
(Superseded to 31619A)

Note: Indicates items included in Gasket Set Part No.33236.

$7.49

$

In Stock, only 2 left!

0

53

Tecumseh 31337

Breather Assy. (Incl. #52 & 84)
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

56

Tecumseh 590450A

Starter, Side Mount
(Superseded to 590519)

$

$

Not available

57

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

58

Tecumseh 33007

Cover, Air Cleaner

$7.49

$

In Stock, only 1 left!

0

59

Tecumseh 30188

Gasket, Intake
(Superseded to 32649A)

Note: Indicates items included in Gasket Set Part No.33236.

$2.99

$

In Stock, Qty 18

0

60

Tecumseh 33004

Pipe, Intake
(Superseded to 33004A)

$23.99

$

Usually ships in 3-12 days

0

61

Tecumseh 31865

480B GIL SNWTHWR O/
(Superseded to 36261)

$

$

Not available

62

Tecumseh 650451

Screw (1/4-20 x 1)

$1.99

$

In Stock, only 4 left!

0

64

Tecumseh 32237

Screen, Flywheel

$

$

Not available

65

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

67

Tecumseh 33131

Control Assy., Speed (Incl. #75 & 77)
(Superseded to 33131A)

$33.99

$

Usually ships in 3-12 days

0

69

Tecumseh 33133

Link Governor

$1.99

$

Usually ships in 3-12 days

0

70

Tecumseh 33177

Terminal

$1.99

$

In Stock, only 3 left!

0

71

Tecumseh 32653

Link-Governor

$1.99

$

In Stock, only 2 left!

0

73

Tecumseh 31386

Spring, Governor

$4.49

$

In Stock, Qty 15

0

75

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

77

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

78

Tecumseh 31388

Wire, Ground
(Superseded to 35349)

$

$

Not available

81

Tecumseh 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

82

Tecumseh 28670

Stud

$

$

Currently unavailable

83

Tecumseh 26756

Gasket

Note: Indicates items included in Gasket Set Part No.33236.

$2.99

$

In Stock, Qty 11

0

84

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 20+

0

85

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

86

Tecumseh 650599

Screw

$1.99

$

In Stock, only 2 left!

0

87

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 5

0

88

Tecumseh 33051

Gasket-Air Cleaner

Note: Indicates items included in Gasket Set Part No.33236.

$1.49

$

In Stock, Qty 9

0

92

Tecumseh 27275

51004 GIL ROTARY TI

$1.99

$

In Stock, Qty 7

0

93

Tecumseh 33006

Element, Air Cleaner

$8.49

$

In Stock, only 1 left!

0

94

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 12

0

95

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

96

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

97

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 3 left!

0

98

Tecumseh 32455B

Housing, Blower

$

$

Currently unavailable

99

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

100

Bracket, Shroud

Note: Order from Toro Dealer

$

$

Not available

101

Tecumseh 32170A

Tank, Fuel (Incl. #102)
(Superseded to 37947)

$

$

Not available

102

Cap, Fuel Filler

Note: Order from Toro Dealer

$

$

Not available

103

Tecumseh 650737

Screw (1/4-20 x 1/2)

$1.99

$

In Stock, Qty 6

0

104

Tecumseh 650639

Rivet

$

$

Not available

106

Tecumseh 650490

Washer
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

107

Tecumseh 650607

Hex Nut

$1.99

$

In Stock, Qty 7

0

108

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, Qty 5

0

109

Tecumseh 590516

Bracket Assy.

$

$

Currently unavailable

110

Tecumseh 30081

Gasket Exhaust
(Superseded to 30081A)

Note: Indicates items included in Gasket Set Part No.33236.

$1.49

$

In Stock, only 4 left!

0

111

Tecumseh 33008

Tube, Air Cleaner

$20.99

$

Usually ships in 3-12 days

0

118

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 4 left!

0

119

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

121

Tecumseh 631612

Carburetor
(Superseded to 632795A)

$109.99

$

In Stock, only 2 left!

0

122

Tecumseh 610793

Magneto

$

$

Currently unavailable

123

Tecumseh 33236

Gasket Set
(Superseded to 33238E)

$50.99

$

In Stock, only 1 left!

0
