191702-5133-XX - Briggs & Stratton Vertical Engine Cyl, Sump, Piston,Controls Parts Diagram

Vertical Engine

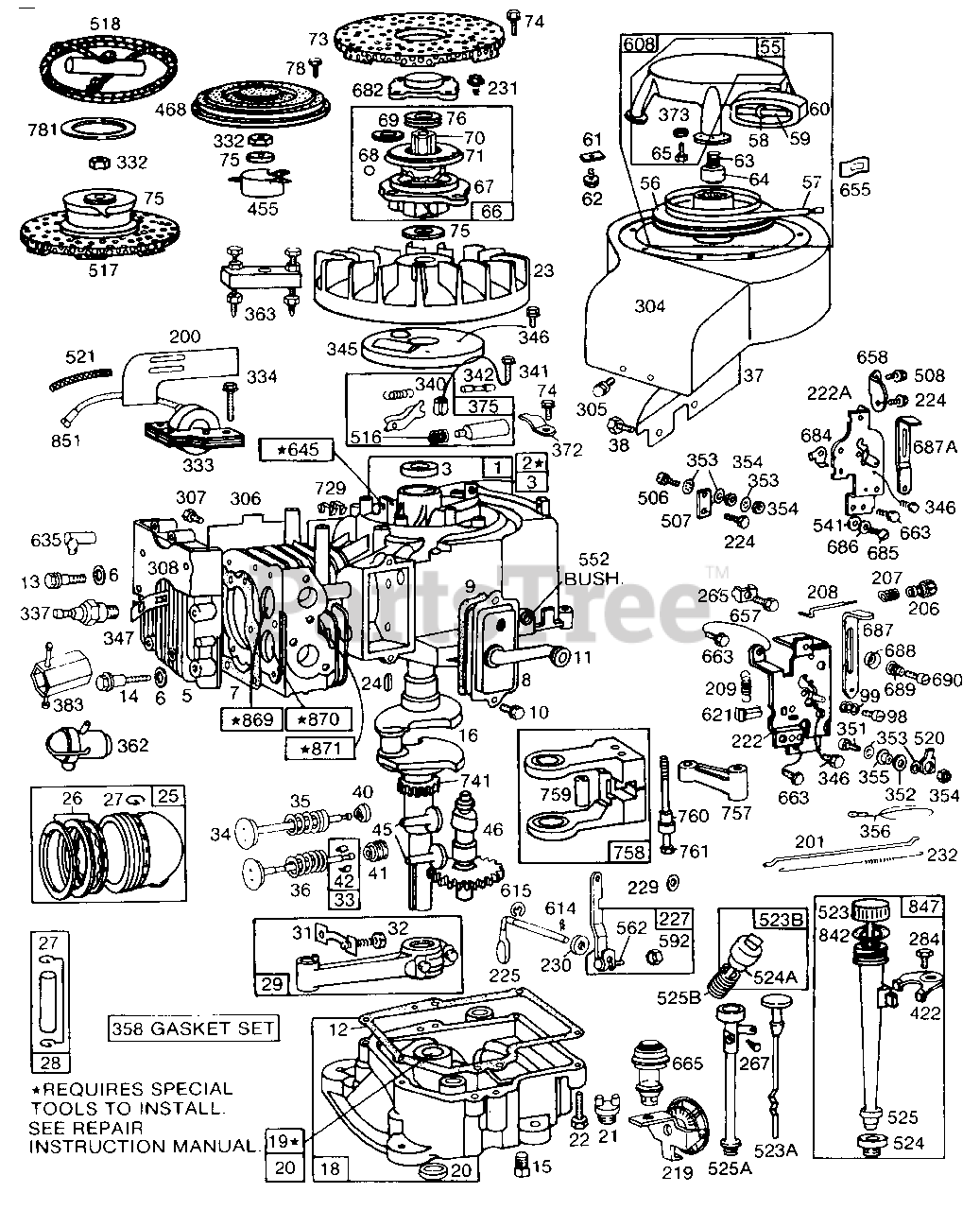

Cyl, Sump, Piston,Controls Parts Diagram

  • Title

1

Briggs & Stratton 392005

Cylinder Assy.
(Superseded to 393672)

Note: Used Before Code Date 78092810

$403.99

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 393675

Cylinder Assembly
(Superseded to 393672)

Note: Used After Code Date 78092710

$403.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 391726

Bushing-Cylinder

Note: Required special tools for installation.

$43.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 294606

Seal, Oil
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

5

Briggs & Stratton 211778

Head-Cylinder (For Sno-gard)

$

$

Not available

6

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 270430

Gasket-Cylinder Head Breather Assembly
(Superseded to 272163S)

Note: Included in Gasket Set-Part No. 299577

$7.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 391406

Breather Assy.
(Superseded to 495735)

$63.99

$

In Stock, Qty 5

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 299577

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280005

Tube-Breather
(Superseded to 692293)

$10.99

$

In Stock, Qty 6

0

12

Briggs & Stratton 27750

Gasket, Crankcase (1/64" Thick)
(Superseded to 692221)

Note: Included in Gasket Set-Part No. 299577

$8.99

$

In Stock, Qty 9

0

12

Briggs & Stratton 27876

Gasket-Crkcse (.005" Thick)

Note: Included in Gasket Set-Part No. 299577

$

$

Not available

12

Briggs & Stratton 27877

Gasket-Crkcse (.009" Thick)

Note: Included in Gasket Set-Part No. 299577

$10.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 93113

Screw, Machine Hex (2-5/16" Long)
(Superseded to 690912)

$3.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 93583

Stud, Cylinder Head
(Superseded to 691690)

$

$

Not available

13

Briggs & Stratton 93826

Washer (4)
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 93211

Screw, Machine Hex (5/16-18 X 2-21/32")
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

14

Briggs & Stratton 93583

Stud, Cylinder Head
(Superseded to 691690)

$

$

Not available

15

Briggs & Stratton 91084

Plug, Pipe (Standar (3/8")
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 390549

Crankshaft

$178.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 392548

Sump-Oil

$110.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 295963

Bushing/Seal Kit

Note: Requires special tools for installation

$

$

Not available

20

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

21

Briggs & Stratton 66768

Plug, Oil Fill
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93585

Screw, Sem Hex Head
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

23

Briggs & Stratton 298260

Flywheel-Magneto

$

$

Not available

24

Briggs & Stratton 61760

Key, Flywheel (For Breaker Ignition System)
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 391673

Piston/Ring Kit (Std.)
(Superseded to 499907)

$

$

Not available

25

Briggs & Stratton 391674

Piston/Ring Kit (.010" O.S.)

$

$

Not available

25

Briggs & Stratton 391675

Piston/Ring Kit (.020" O.S.)
(Superseded to 499909)

$149.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391676

Piston/Ring Kit (.030" O.S.)

$

$

Not available

26

Briggs & Stratton 299743

Ring Set-Std Chr
(Superseded to 690014)

$

$

Not available

26

Briggs & Stratton 391669

Ring, Piston Kit (Std.)
(Superseded to 499921)

$47.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391670

Ring, Piston Kit (.010" O.S.)

$18.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391671

Ring, Piston Kit (.020" O.S.)
(Superseded to 690019)

$59.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 391672

Ring, Piston Kit (.030" O.S.)

$

$

Not available

27

Briggs & Stratton 68546

Lock-Piston Pin
(Superseded to 691073)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295840

Pin-Piston Std
(Superseded to 499302)

$15.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295841

Pin-Piston 005

$6.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 390402

Rod-Connecting (Standard)

Note: For Connecting Rod with .020" Undersize Crankpin Bore-Order No. 390773

$84.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222114

Lock-Rod Screw

$

$

Not available

32

Briggs & Stratton 92659

Screw-Connecting Rod And Bracket Mtg.
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 390419

Valve-Exhaust (Includes Retainer Ref. No. 42)
(Superseded to 691794)

$

$

Not available

34

Briggs & Stratton 261055

Valve-Intake
(Superseded to 261055S)

$32.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 65906

Spring, Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring, Valve (Exhaust)
(Superseded to 691597)

$10.99

$

In Stock, Qty 5

0

37

Briggs & Stratton 222475

Guard-Flywheel
(Superseded to 690411)

$

$

Not available

38

Briggs & Stratton 93777

Screw, Sem Hex Head
(Superseded to 690364)

$3.99

$

In Stock, only 2 left!

0

40

Briggs & Stratton 221596

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Rotocoil Assy (Exhaust Valve)
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 93630

Keeper, Valve (2)
(Superseded to 494553)

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 260933

Tappet-Valve
(Superseded to 691793)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 211689

Gear-Cam.
(Superseded to 691167)

$36.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 390391

Starter-Rewind
(Superseded to 693900)

$131.99

$

In Stock, Qty 11

0

55

Briggs & Stratton 393576

Housing-Rew Str

$85.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 295871

Pulley-Starter (Includes 63" Rope)

Note: Includes 63" Rope, if longer Rope is required, Order Rope No. 66894 and cut to required length.

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 294303

Spring-Rewind Starter
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66564

Rope-Starter (63" Long)

$8.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 66884

Rope, Starter (63" Cut To Required Length)
(Superseded to 692188)

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter Rope.
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

61

Briggs & Stratton 68848

Bumper-Starter Pulley
(Superseded to 68848S)

$1.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93254

Screw-Pulley Bumper Mounting Sem

$3.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 260414

Spring-Ratchet
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 230543

Adapter-Spring
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 93067

Screw, Sem Hex Head (3/8" Long)
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 93572

Screw, Hex Head Tap (10-32 X 3/8)
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

66

Briggs & Stratton 298798

Clutch Assy.-Rewind Starter
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 212132

Housing-Rewind Starter Clutch
(Superseded to 394897)

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 66718

Washer, Thrust (1-1/16" O.d. X 17/32" I.d.)
(Superseded to 690271)

$8.49

$

In Stock, only 1 left!

0

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: (For engine W/Ring Gear on FW equipped for Elec Start)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer, Steel (Non-Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

73

Briggs & Stratton 221796

Switch-Stop
(Superseded to 691754)

$31.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Screw, Sem Hex Head
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer, Belleville (Used With Heavy Flywheel)
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

78

Briggs & Stratton 93805

Screw-Sem
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 221760

Guide-Air
(Superseded to 691170)

$15.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260971

Link-Governor

$8.99

$

Usually ships in 2-12 days

0

206

Briggs & Stratton 230149

Nut-Gov Adjusting (#5-44 Thread)

$35.99

$

Usually ships in 2-12 days

0

207

Briggs & Stratton 26855

Spring-Governor Control Rod
(Superseded to 692522)

$

$

Not available

208

Briggs & Stratton 230841

Rod-Governor Control

$29.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260931

Spring-Governor

Note: Used Before Code Date 75111011

$6.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 298614

Oil Slinger, Gov. Gear & Brkt Assy

Note: Used Before Code Date 75111011

$18.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 392718

Oil Slinger, Gov. Gear & Brkt Assy
(Superseded to 691980)

Note: Used After Code Date 75110911

$

$

Not available

222A

Briggs & Stratton 298997

Plate-Governor Control

$15.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 390662

Plate, Control Assy
(Superseded to 396349)

$

$

Not available

224

Briggs & Stratton 93067

Screw, Sem Hex Head (3/8" Long)
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

225

Briggs & Stratton 231058

Crank, Governor (1/4" Dia.)
(Superseded to 692012)

Note: Used After Code Date 75110911

$13.99

$

In Stock, only 2 left!

0

225

Briggs & Stratton 231071

Shaft-Gov Gear (3/16" Dia.)

Note: Used Before Code Date 75111011

$7.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 298303

Governor Control Le (For 3/16" Dia. Crank)

Note: Used Before Code Date 75111011

$7.49

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 391733

Governor Control Le (For 1/4" Dia. Crank)
(Superseded to 692942)

Note: Used After Code Date 75110911

$19.99

$

Usually ships in 2-12 days

0

229

Briggs & Stratton 220680

Washer, Steel
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 221559

Washer (3/16" Inside Dia.)

$3.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer, Steel Zinc
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

231

Briggs & Stratton 93064

Screw-Sem
(Superseded to 690292)

$3.99

$

In Stock, only 3 left!

0

232

Briggs & Stratton 260584

Spring-Link
(Superseded to 692207)

$6.99

$

In Stock, only 3 left!

0

265

Briggs & Stratton 221535

Clamp, Casing (Stamped Steel)
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 93612

Screw-Sheet Metal
(Superseded to 690305)

$4.49

$

Usually ships in 2-12 days

0

284

Briggs & Stratton 93804

Screw-Clamp Mtg.
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

304

Briggs & Stratton 299392

Blower Housing/Plat
(Superseded to 491592)

$

$

Not available

304

Briggs & Stratton 391395

Housing-Blower

$

$

Not available

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 13

0

306

Briggs & Stratton 222830

Shield-Cylinder
(Superseded to 496797)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93163

Screw, Sem Hex Head
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

307

Briggs & Stratton 93828

Screw-Sem

$1.49

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 222351

Cover-Cylinder Head

$7.49

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 92284

Nut, Jam (Flywheel)
(Superseded to 690662)

$5.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 298968

Armature-Mag (For Breaker Ignition)

Note: For Conversion to Electronic Ignition Order 394970 Electronic Capsule Kit

$

$

Not available

334

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 293918

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 29693

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

340

Briggs & Stratton 26018

Spring-Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger-Breather Point
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

345

Briggs & Stratton 222117

Cover-Breaker Point

$5.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

347

Briggs & Stratton 220884

Switch-Stop

$11.99

$

In Stock, Qty 6

0

347

Briggs & Stratton 221808

Switch-Stop

$4.99

$

Usually ships in 2-12 days

0

351

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

351

Briggs & Stratton 93735

Screw-Slotted

$3.49

$

Usually ships in 2-12 days

0

352

Briggs & Stratton 66068

Washer-Fiber

$4.99

$

Usually ships in 2-12 days

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

355

Briggs & Stratton 66554

Washer-Insulating

$5.49

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 299500

Wire, Ground Assy
(Superseded to 398808)

Note: (Used with Armature Refs. 333A and 333B)

$11.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 299577

Gasket Set

$35.99

$

In Stock, Qty 11

0

362

Briggs & Stratton 291630

Shield, Spark Plug (With Stop Switch)
(Superseded to 793351)

$14.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19165

Puller-Flywheel (Optional Accessory)

$25.99

$

Usually ships in 2-12 days

0

372

Briggs & Stratton 220477

Clamp-Condensor

$1.49

$

Usually ships in 2-12 days

0

373

Briggs & Stratton 92987

Nut, Hex Mach
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

375

Briggs & Stratton 294628

Breaker Points And Condensor Set

$

$

Not available

375

Briggs & Stratton 299061

Ignition Kit
(Superseded to 294628)

Note: Includes: 294628 Point Set 65704 Plunger 61760 Key-Flywheel

$

$

Not available

422

Briggs & Stratton 222502

Clamp-Oil Filler Tube
(Superseded to 690593)

$11.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 222561

Cup-Screen Mtg.
(Superseded to 691173)

$37.99

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 222302

Screen-Rotating (Stationary)

Note: Uses: 93572 Screw (8) 231020 Spacer (4)

$14.99

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 222562

Screen-Rotating
(Superseded to 691748)

$232.99

$

In Stock, only 1 left!

0

506

Briggs & Stratton 90200

Screw-Slotted (8-32 X 1/2")

$3.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 66895

Insulator-Terminal

$4.99

$

In Stock, only 2 left!

0

508

Briggs & Stratton 93294

Screw, Sem (5/8" Long)
(Superseded to 692198)

$5.99

$

In Stock, Qty 13

0

516

Briggs & Stratton 260374

Condenser Spring

$7.99

$

Usually ships in 2-12 days

0

517

Briggs & Stratton 295423

Screen/Pulley Assy
(Superseded to 496084)

$173.99

$

Usually ships in 2-12 days

0

518

Briggs & Stratton 69932

Rope/Grip Assy (55")
(Superseded to 69932S)

$9.49

$

In Stock, only 1 left!

0

520

Briggs & Stratton 93722

Terminal, Spade
(Superseded to 691084)

$6.49

$

In Stock, only 2 left!

0

521

Briggs & Stratton 298529

Shielding-Ignition Cable

$33.99

$

Usually ships in 2-12 days

0

523A

No Nomenclature

$

$

Not available

523B

Briggs & Stratton 295923

Cap-Oil Filler

Note: Uses: 65304 Gasket

$14.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 391840

Cap/Dipstick Assy (Screw Cap)
(Superseded to 691387)

$16.99

$

Usually ships in 2-12 days

0

524A

Briggs & Stratton 65304

Gasket-Oil Filler Cap
(Superseded to 690270)

$3.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 68838

Seal-Oil Filler Tube To Sump
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525B

Briggs & Stratton 230553

Pipe-Oil (5-1/4" Long)

$13.99

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 280133

Tube, O-Fill
(Superseded to 692963)

Note: (For Plastic Screw Cap Dipstick)

$

$

Not available

541

Briggs & Stratton 22398

Washer, Steel Zinc
(Superseded to 5022398)

$3.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 230927

Bushing-Gov Crank (3/16" I.d.) (No Threads)

Note: Used Before Code Date 75111011

$7.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 231055

Bushing, Governor S (1/4" I.d.)
(Superseded to 491986)

Note: Used After Code Date 75110911

$

$

Not available

562

Briggs & Stratton 92613

Bolt-Gov Lever

$

$

Not available

592

Briggs & Stratton 231082

Nut (10-24)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

608

Briggs & Stratton 390391

Starter-Rewind
(Superseded to 693900)

$131.99

$

In Stock, Qty 11

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

621

Briggs & Stratton 297472

Switch, Stop Assy
(Superseded to 297472S)

$

$

Not available

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

645

Briggs & Stratton 23513

Bushing-Plunger

Note: (Used only with Breaker Point Ignition)

$2.49

$

Usually ships in 2-12 days

0

655

Briggs & Stratton 221014

Anchor-Rewind Spg

Note: Used Before Code Date 73061111

$5.99

$

Usually ships in 2-12 days

0

655

Briggs & Stratton 222598

Insert, Spring
(Superseded to 691734)

Note: Used After Code Date 73061011

$4.99

$

Usually ships in 2-12 days

0

657

Briggs & Stratton 93496

Screw, Sem Hex Head (10-32 X 5/8")
(Superseded to 690804)

$

$

Not available

658

Briggs & Stratton 221576

Strap-Control Plate

$3.99

$

Usually ships in 2-12 days

0

663

Briggs & Stratton 93572

Screw, Hex Head Tap (10-32 X 3/8)
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

665

Briggs & Stratton 296768

Oil Minder
(Superseded to 592239)

$35.99

$

Usually ships in 2-12 days

0

682

Briggs & Stratton 211516

Shield-Starter Clutch

$4.49

$

Usually ships in 2-12 days

0

684

Briggs & Stratton 221781

Stop-Control Lever

$

$

Not available

685

Briggs & Stratton 93524

Screw-Slotted (5-40 X 1/2")

$3.99

$

Usually ships in 2-12 days

0

686

Briggs & Stratton 91622

Washer-Lock

$

$

Not available

687A

Briggs & Stratton 298957

Slide-Friction Control

$19.99

$

Usually ships in 2-12 days

0

687

Briggs & Stratton 390690

Slide-Frictiong Control
(Superseded to 691949)

$

$

Not available

688

Briggs & Stratton 221766

Spring-Friction
(Superseded to 690395)

$8.99

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 260847

Spring-Friction
(Superseded to 690529)

$9.99

$

Usually ships in 2-12 days

0

690

Briggs & Stratton 92484

Screw-Slotted 10-32 X 1/2"

$3.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 221907

Clip-Wire

$3.49

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 261195

Gear-Timing (For Use With Pin)

$17.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 211675

Link-Counterweight

Note: Used Before Code Date 78092810

$24.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 212359

Link-Counterwieght
(Superseded to 691714)

Note: Used After Code Date 78092710

$

$

Not available

758

Briggs & Stratton 390172

Pin-Counterweight
(Superseded to 690619)

$49.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 298909

Pin-Piston

$8.99

$

In Stock, only 3 left!

0

760

Briggs & Stratton 230940

Counterweight Space (2)

$2.99

$

Usually ships in 2-12 days

0

761

Briggs & Stratton 93874

Screw, Hex Head Cap
(Superseded to 690346)

$7.49

$

Usually ships in 2-12 days

0

781

Briggs & Stratton 280068

Cap-Starter Pully

$1.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 392066

Dipstick/Tube Assy

$

$

Not available

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 211661

Seat-Valve (Intake)
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 211661

Seat-Valve (Intake)
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

No Nomenclature

Note: 231218 or 230655 See Repair Manual

$

$

Not available
