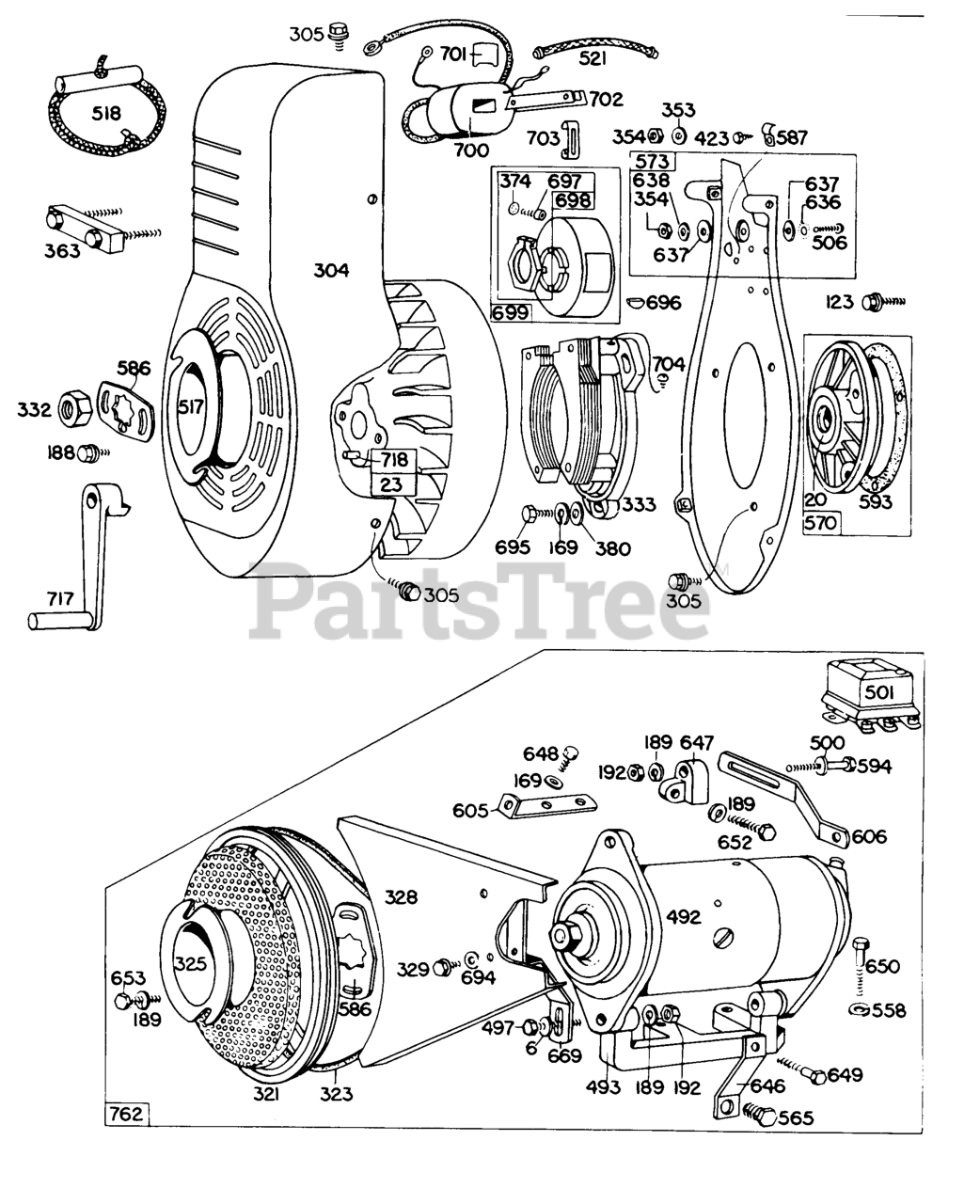

191451-0116-XX - Briggs & Stratton Horizontal Engine BlowerHsg,Elect Starter,Elect Parts Diagram

Horizontal Engine

BlowerHsg,Elect Starter,Elect Parts Diagram

  • Title

6

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

20

Briggs & Stratton 298423

Seal-Oil
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

23

Briggs & Stratton 291278

Flywheel-Magneto

$

$

Not available

23

Briggs & Stratton 294743

Flywheel-Magneto

Note: Uses: 220804 Screen 220803 Support-Screen 230397 Spacer (4) 93415 Screw (4)

$

$

Not available

123

Briggs & Stratton 93415

Screw-Hex (1/4-20 X 3/4)
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

169

Briggs & Stratton 90832

Washer-Lock
(Superseded to 22097GS)

$3.49

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

189

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 91397

Nut, Hex (5/16-18)
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

304

Briggs & Stratton 291280

Housing-Blower

$38.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

321

Briggs & Stratton 211166

Pulley-V Starter

$43.99

$

Usually ships in 2-12 days

0

323

Briggs & Stratton 66828

Belt-Vee

$20.99

$

Usually ships in 2-12 days

0

325

Briggs & Stratton 299308

Pulley-Rope Start (With Screen)

$40.99

$

Usually ships in 2-12 days

0

328

Briggs & Stratton 221531

Guard-Belt

$27.99

$

Usually ships in 2-12 days

0

329

Briggs & Stratton 93294

Screw, Sem (5/8" Long)
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

332

Briggs & Stratton 23949

Nut-Flywheel

$7.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 290621

Armature And Support Assembly

$69.99

$

Usually ships in 2-12 days

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19068

Puller-Flywheel (Optional Accessory)

$

$

Not available

374

Briggs & Stratton 92813

Washer-Lock

$3.49

$

Usually ships in 2-12 days

0

380

Briggs & Stratton 62199

Washer, Steel
(Superseded to 692810)

$5.49

$

Usually ships in 2-12 days

0

492

Briggs & Stratton 296028

Starter-Gen (12v Delco-Remy #1101695 & Pulley #1949358)

Note: Uses: 296182 Pulley (Delco-Remy No. 1949358)

$

$

Not available

493

Briggs & Stratton 211153

Bracket-Starter

$

$

Not available

497

Briggs & Stratton 91203

Screw, Hex Head Cap (5/16-18 X 1-3/4")
(Superseded to 691614)

$6.99

$

Usually ships in 2-12 days

0

500

Briggs & Stratton 91325

Washer-Plain
(Superseded to 690282)

$3.99

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 295924

Regulator (Flat Mount, Delco-remy)

$76.99

$

Usually ships in 2-12 days

0

506

Briggs & Stratton 90072

Screw-Slotted (8-32 X 5/8")

$4.49

$

In Stock, Qty 18

0

517

Briggs & Stratton 22809

Pulley-Rope Starter
(Superseded to 690261)

$15.99

$

Usually ships in 2-12 days

0

518

Briggs & Stratton 69932

Rope/Grip Assy (55")
(Superseded to 69932S)

$9.49

$

In Stock, only 1 left!

0

521

Briggs & Stratton 291508

Shielding-Ignition Cable

$29.99

$

Usually ships in 2-12 days

0

521

Briggs & Stratton 293195

Shielding-Ignition Cable

Note: Includes: 292412 Elbow-Ignition Cable Uses: 26487 Clamp-Shielding 66298 Bushing-Spark Plug Terminal 92704 Terminal-Spark Plug 92864 Washer-Lock (Shielding Lead) 92794 Nut-Hex. (Shielding Lead)

$

$

Not available

558

Briggs & Stratton 92268

Washer-Lock (3/8 X 1/8 X 3/32")

$4.49

$

Usually ships in 2-12 days

0

565

Briggs & Stratton 93142

Screw-Hex

$3.49

$

Usually ships in 2-12 days

0

570

Briggs & Stratton 291377

Support Assembly-Plain Bearing

$47.99

$

Usually ships in 2-12 days

0

573

Briggs & Stratton 291211

Plate-Back

$

$

Not available

573

Briggs & Stratton 293201

Plate-Back

Note: Includes: 92786 Screw-Machine, Rd. Hd.-8-32 x 5/8" 92794 Nut-Hex., 8-32"

$

$

Not available

586

Briggs & Stratton 22906

Retainer
(Superseded to 690265)

$4.99

$

Usually ships in 2-12 days

0

593

Briggs & Stratton 27295

Gasket-Plain Or Ball Bearing Support .020" Thick

Note: Included in Gasket Set-Part No. 294736

$8.49

$

Usually ships in 2-12 days

0

593

Briggs & Stratton 27296

Gasket-Plain Or Ball Bearing Support .005" Thick

Note: Included in Gasket Set-Part No. 294736

$9.49

$

Usually ships in 2-12 days

0

593

Briggs & Stratton 27297

Gasket-Plain Or Ball Bearing Support .009" Thick

Note: Included in Gasket Set-Part No. 294736

$8.49

$

Usually ships in 2-12 days

0

594

Briggs & Stratton 91449

Screw/Hex Hd

$

$

Not available

605

Briggs & Stratton 297171

Bracket-Support (Lower)

$5.49

$

Usually ships in 2-12 days

0

606

Briggs & Stratton 221471

Strap-Adjusting

$

$

Not available

636

Briggs & Stratton 92864

Washer-Lock

$4.49

$

Usually ships in 2-12 days

0

637

Briggs & Stratton 66154

Washer-Fiber

$1.49

$

Usually ships in 2-12 days

0

638

Briggs & Stratton 26404

Washer-Flat

$5.99

$

Usually ships in 2-12 days

0

646

Briggs & Stratton 221472

Bracket-Support

$28.99

$

Usually ships in 2-12 days

0

647

Briggs & Stratton 211154

Anchor-Link

$

$

Not available

648

Briggs & Stratton 91439

Screw-Cap, Hex. Head 1/4-20 X 3/8"

$

$

Not available

649

Briggs & Stratton 93546

Screw, Hex Head Cap (5/16-18 X 1-1/4")
(Superseded to 690303)

$4.99

$

Usually ships in 2-12 days

0

650

Briggs & Stratton 91814

Screw-Hex (3/8-16 X 2")
(Superseded to 7091814SM)

$3.99

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 91162

Screw, Hex Head Cap (5/16-18 X 1-1/2")
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

653

Briggs & Stratton 91442

Screw-Pulley Mtg.
(Superseded to 7028668YP)

$1367.99

$

Usually ships in 2-12 days

0

669

Briggs & Stratton 297187

Bracket-Mounting (Upper)

$22.99

$

Usually ships in 2-12 days

0

694

Briggs & Stratton 91324

Washer

$

$

Not available

695

Briggs & Stratton 91146

Screw-Cap, Hex. Head 1/4-20 X 7/8"

$

$

Not available

696

Briggs & Stratton 92269

Key-Woodruff

$4.99

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 93186

Screw-Cap Head

$

$

Not available

698

Briggs & Stratton 295128

Clamp Assy.-Rotor

$

$

Not available

699

Briggs & Stratton 291363

Rotor Assembly

$167.99

$

Usually ships in 2-12 days

0

700

Briggs & Stratton 290880

Coil-Magneto

$135.99

$

Usually ships in 2-12 days

0

701

Briggs & Stratton 22859

Retainer-Coil

$1.49

$

Usually ships in 2-12 days

0

702

Briggs & Stratton 290614

Core-Coil

$

$

Not available

703

Briggs & Stratton 22928

Clip-Armature Spring

$3.99

$

Usually ships in 2-12 days

0

704

Briggs & Stratton 90923

Screw-Sheet Metal, Rd. Hd., Type "a" No. 6 X 1/4"

$

$

Not available

717

Briggs & Stratton 290840

Crank-Starting

$

$

Not available

718

Briggs & Stratton 23850

Pin-Flywheel

$

$

Not available

762

Briggs & Stratton 297651

Electric Starter-Generator Kit 12 Volt

$

$

Not available
