1914 H (1691388) - AGCO 42" Garden Tractor, 14hp Ultima 42" Mower, Housing & Cover Group Parts Diagram

42" Garden Tractor, 14hp Ultima

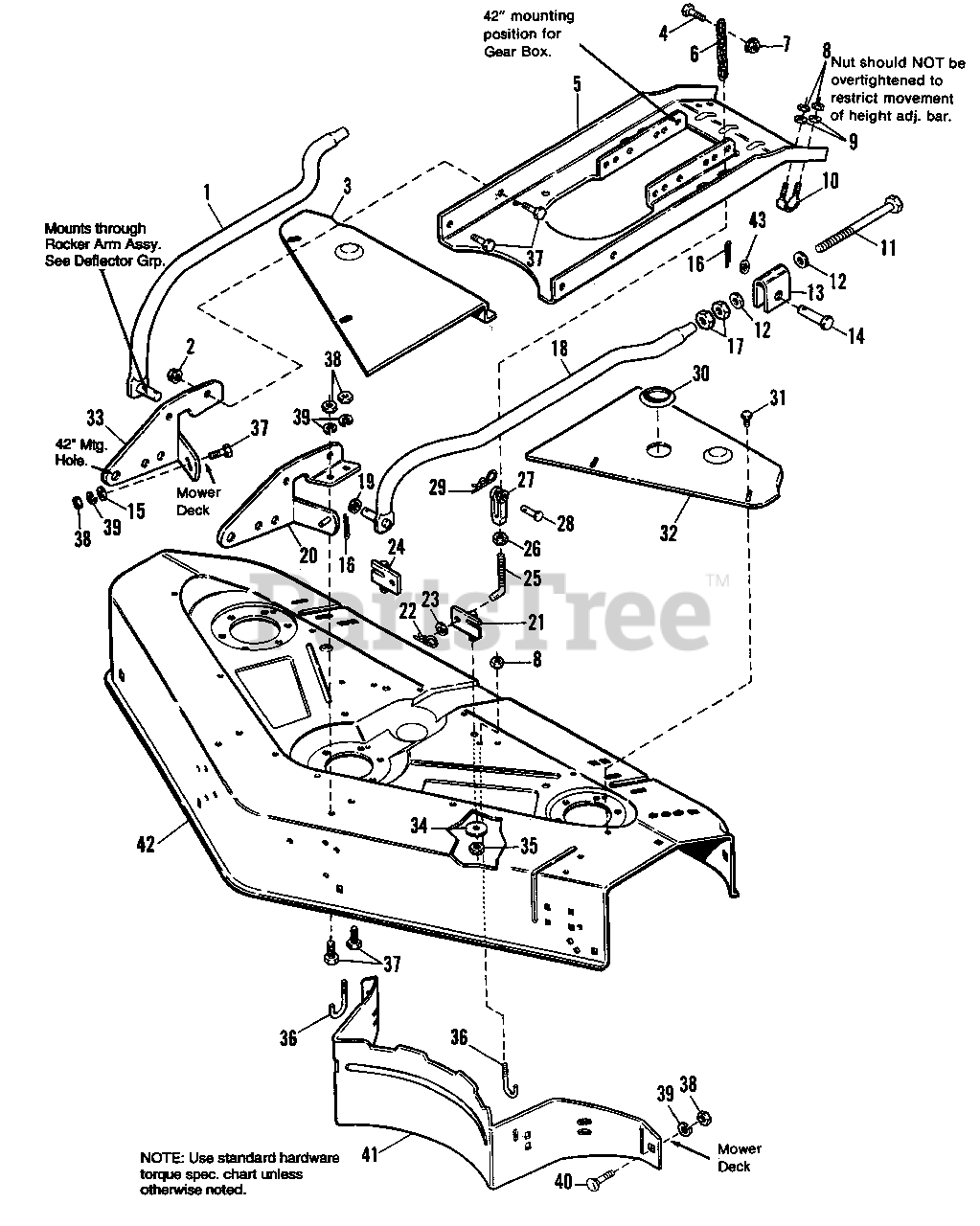

42" Mower, Housing & Cover Group Parts Diagram

  • Title

1

Simplicity 1677191SM

ARM ASSY., R.H.

$88.99

$

Usually ships in 2-12 days

0

2

Simplicity 1931211SM

NUT, Hex Whizlock 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

3

Simplicity 1676094SM

COVER, Mower, R.H.

$47.99

$

Usually ships in 2-12 days

0

4

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

5

Simplicity 1678102SM

SUPPORT, "U" Channel

$87.99

$

Usually ships in 2-12 days

0

6

Simplicity 2107031SM

CHAIN, 5 Link (Used with 23" Tires)
(Superseded to 2107031ASM)

$7.49

$

In Stock, only 2 left!

0

6

Simplicity 1708266ASM

CHAIN, 6 Link (Used with 26" Tires)

$9.99

$

Usually ships in 2-12 days

0

7

Simplicity 1930645SM

NUT, Hex, Flange, Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Simplicity 1923362SM

NUT, Hex, Centerlock 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

9

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

10

Simplicity 1678623SM

U-BOLT, 1"

$11.99

$

Usually ships in 2-12 days

0

11

Simplicity 1960150SM

CAPSCREW, Hex, 5/8-18 x 5-1/2

$14.99

$

Usually ships in 2-12 days

0

12

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1677182SM

TRUNNION
(Superseded to 1677182ASM)

$8.49

$

Usually ships in 2-12 days

0

14

Simplicity 1960064SM

PIN, Trunnion
(Superseded to 7012751YP)

$

$

Not available

15

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

16

Simplicity 1918452SM

PIN, Cotter, 1/8 x 1
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

17

Simplicity 1922014SM

NUT, Hex, Jam, 5/8-18
(Superseded to 703904)

$4.99

$

In Stock, Qty 18

0

18

Simplicity 1677190SM

ARM ASSY., L.H.

$88.99

$

Usually ships in 2-12 days

0

19

Simplicity 1960020SM

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1676036SM

BRACKET ASSY., L.H.

$71.99

$

Usually ships in 2-12 days

0

21

Simplicity 1686676SM

BRACKET ASSY., Lift, L.H.

$

$

Not available

22

Simplicity 1960221SM

PIN, Hair, 1/16" Wire
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

23

Simplicity 1919326SM

WASHER, Plain, 5/16 x 3/4 x 1/16

$4.49

$

In Stock, Qty 8

0

24

Simplicity 1686676SM

BRACKET ASSY., Lift,

$

$

Not available

25

Simplicity 1686676SM

ROD, Bolt, Lift Chain

$

$

Not available

26

Simplicity 1920161SM

NUT, Hex, Jam, 5/16-18

$4.49

$

In Stock, only 2 left!

0

27

Simplicity 1673575SM

CLEVIS, Lift

$

$

Not available

28

Simplicity 1655651SM

PIN, Clevis
(Superseded to 1733568SM)

$6.99

$

In Stock, only 2 left!

0

29

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1674020SM

PLUG, Mower Cover

$4.49

$

In Stock, Qty 7

0

31

Simplicity 1929000SM

SCREW, Hex, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

32

Simplicity 1676093SM

COVER, Mower, L.H.

$49.99

$

Usually ships in 2-12 days

0

33

Simplicity 1676035SM

BRACKET ASSY., R.H.

$36.99

$

Usually ships in 2-12 days

0

34

Simplicity 1924356SM

WASHER, Plain, 13/32 x 1-1/2 x 1/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

35

Simplicity 1930645SM

NUT, Hex, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

36

Simplicity 1679385SM

SCREW, Baffle Hook

$9.99

$

In Stock, only 2 left!

0

37

Simplicity 1921966SM

CAPSCREW, Hex, 3/8-16 x 7/8

$3.99

$

Usually ships in 2-12 days

0

38

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

39

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

40

Simplicity 1931349SM

BOLT, Carriage, 3/8-16 x 7/8

$

$

Not available

41

Simplicity 1675587SM

BAFFLE, Mower
(Superseded to 1675587ASM)

$

$

Not available

42

Simplicity 1685281SM

HOUSING, 42" Mower

Note: 1685281 is an orange deck, 71685281 is a green deck, 61685281 is a black deck

$768.99

$

Usually ships in 2-12 days

0

43

Simplicity 1924361SM

WASHER, 1/2"
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0
