1914 (145-986-100) - Cub Cadet Super Garden Tractor Three Point Hitch Attachment-Category O Parts Diagram

Super Garden Tractor

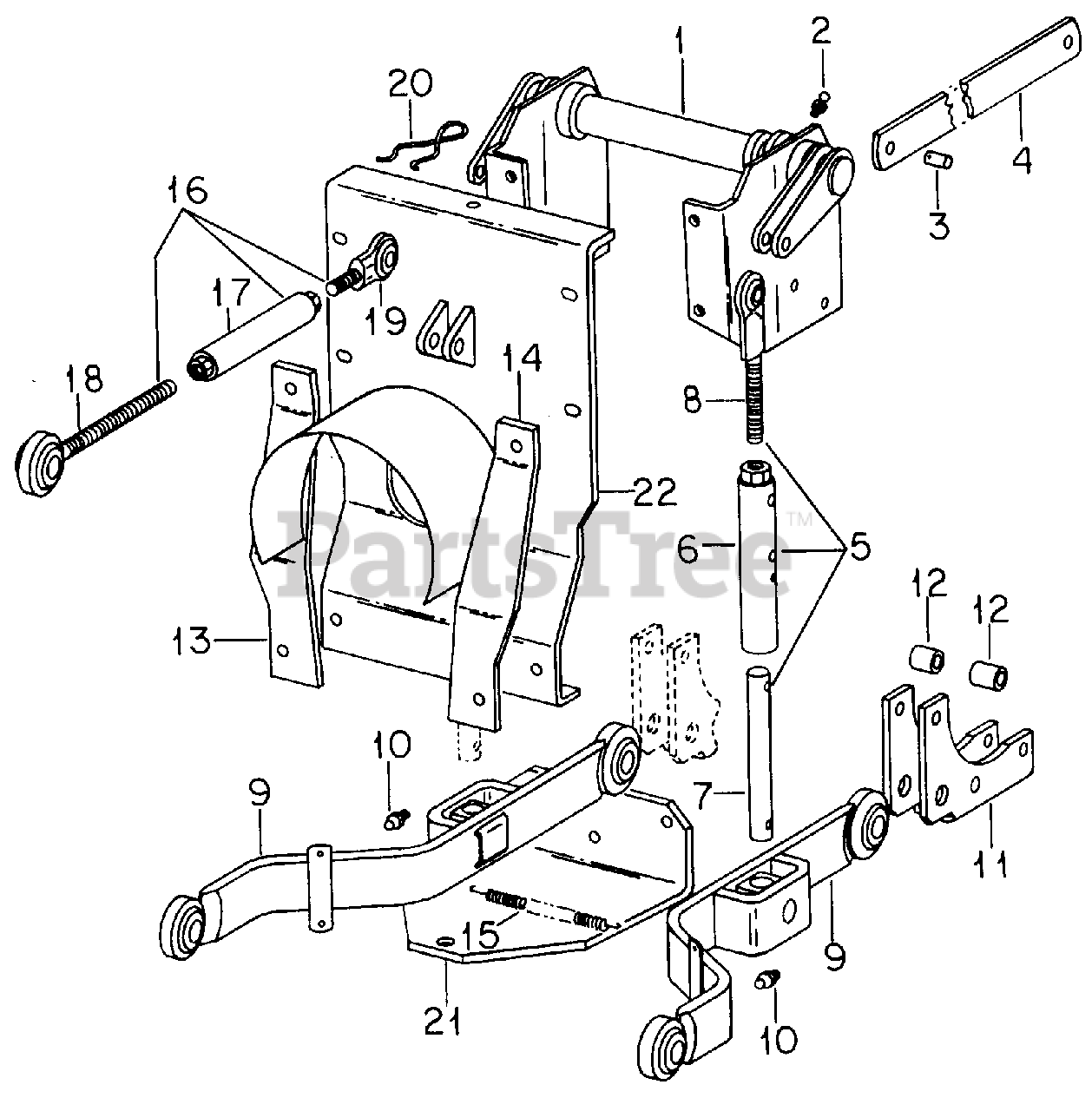

Three Point Hitch Attachment-Category O Parts Diagram

  • Title

1

Cub Cadet 703-0420

Rockshaft Assy

$

$

Not available

Cub Cadet 710-3063

Bolt, 3/8 X 3/4 Type 8
(Superseded to 710-3119)

$6.99

$

In Stock, only 1 left!

0

Cub Cadet 712-0798

Nut, 3/8 Type 5

$4.49

$

In Stock, Qty 6

0

Cub Cadet IH-24841-R1

Bolt, 3/8 X 1-1/2 Phc Type 8

$

$

Currently unavailable

Cub Cadet 710-3030

Bolt, 7/16 X 3/4 Type 5

$

$

Not available

Cub Cadet 712-3019

Nut, 7/16 Type 5

$6.99

$

In Stock, only 1 left!

0

Cub Cadet 710-3063

Bolt, 3/8 X 3/4 Type 8
(Superseded to 710-3119)

Note: (Serial No. 720000 and Above)

$6.99

$

In Stock, only 1 left!

0

Cub Cadet IH-20248-R1

Bolt, 3/8 X 2-1/4 Type 8

$

$

Currently unavailable

Cub Cadet 710-0771

Bolt, 3/8 X 3-3/4 Type 5
(Superseded to 710-04576)

Note: (Serial No. 719999 and Below)

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3045

Bolt, 3/8 X 2-1/2 Type 5

Note: (Serial No. 719999 and Below)

$

$

Currently unavailable

Cub Cadet 710-3030

Bolt, 7/16 X 3/4 Type 5

$

$

Not available

Cub Cadet 712-0798

Nut, 3/8 Type 5

$4.49

$

In Stock, Qty 6

0

Cub Cadet 712-3019

Nut, 7/16 Type 5

$6.99

$

In Stock, only 1 left!

0

2

Cub Cadet 737-3007

Fitting, Straight Dr Type Lub

$

$

Currently unavailable

3

Cub Cadet 711-3080

Pin, Bell Crank Clevis

$

$

Not available

Cub Cadet 715-0134

Pin, 3/16 X 1-1/2 Hvy Pln Cld Spr
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

4

Cub Cadet 703-0428

Bar, Implement Lift

$

$

Not available

Cub Cadet 711-3081

Pin, 1/2 X 2.562 Pln Clevis
(Superseded to 711-0761)

$19.99

$

In Stock, only 4 left!

0

Cub Cadet 736-0108

Washer, .500 X 1.125 X .064

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-0429

Link Assy, Lift

$

$

Not available

6

Cub Cadet 703-0430

Tube Assy, Lift Link

$

$

Not available

7

Cub Cadet 738-3023

Stud, Lift Link

$

$

Not available

Cub Cadet 715-0114A

Pin, 1/4 X 1-1/2 Hvy Pln Cld Spr
(Superseded to 915-0114)

$9.49

$

In Stock, Qty 20+

0

Cub Cadet 715-3014

Pin, 1/4 X 1-1/8 Hvy Pln Cld Spr
(Superseded to 915-3014)

$5.99

$

In Stock, only 1 left!

0

8

Cub Cadet 703-0431

Rod & End Assy, Lift Link

$

$

Not available

Cub Cadet 715-0152

Pin, 1/8 X 5/8 Hvy Pln Cld Spr

$

$

Not available

Cub Cadet 710-3067

Bolt, 1/2 X 1-3/4 Type 5

$6.99

$

In Stock, only 2 left!

0

Cub Cadet IH-9413967

Nut, 1/2 Cad P/T Lock Type 5

$

$

Not available

Cub Cadet 712-3029

Nut, 1/2-NF Jam Type 5

$6.99

$

In Stock, Qty 6

0

9

Cub Cadet 703-0432

Link Assy, Lower

$

$

Not available

Cub Cadet 711-3084

Pin, 5/8 X 1.906 Pln Clevis

$

$

Not available

Cub Cadet 714-3011

Pin, 1/8 X 7/8 Pln Cot

$

$

Not available

10

Cub Cadet 737-3004

Fitting, 1/4-28 Taper Dr Thd 90 Degree Elbow Lub

$11.99

$

In Stock, Qty 6

0

11

Cub Cadet 703-0437

Plate, Lower Link Support

$

$

Not available

12

Cub Cadet 711-3085

Spacer, Plate Lower Link Support

$

$

Not available

Cub Cadet 710-3127

Bolt, 3/8 X 4 Type 5

Note: (Serial No. 720000 and Above)

$

$

Not available

Cub Cadet IH-20248-R1

Bolt, 3/8 X 1/4 Type 8

Note: (Serial No. 720000 and Above)

$

$

Currently unavailable

Cub Cadet 710-0771

Bolt, 3/8 X 3-3/4 Type 5
(Superseded to 710-04576)

Note: (Serial No. 719999 and Below)

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3045

Bolt, 3/8 X 2-1/2 Type 5

Note: (Serial No. 719999 and Below)

$

$

Currently unavailable

13

Cub Cadet 703-0438

Cam, Sway Limiter, LH

$

$

Not available

14

Cub Cadet 703-0439

Cam, Sway Limiter, RH

$

$

Not available

Cub Cadet 710-0514

Bolt, 3/8 X 1 Type 5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-3005

Bolt, 3/8 X 1-1/4 Type 5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-0798

Nut, 3/8 Type 5

$4.49

$

In Stock, Qty 6

0

15

Cub Cadet 732-3006

Spring, Sway Limiter
(Superseded to 932-3006)

$

$

Not available

16

Cub Cadet 703-0440

Link Assy, Upper

$

$

Not available

17

Cub Cadet 703-0441

Tube Assy, Upper Link

$

$

Not available

18

Cub Cadet 703-0442

Rod Assy, Upper Link Rear

$

$

Not available

Cub Cadet 711-3086

Pin, 5/8 X 2.375 Hd Type 5

$

$

Not available

Cub Cadet 714-3012

Pin, QA

$

$

Not available

19

Cub Cadet 703-0443

Rod Assy, Upper Link

$

$

Not available

Cub Cadet 712-3029

Nut, 1/2-NF Jam Type 5

$6.99

$

In Stock, Qty 6

0

Cub Cadet 711-3087

Pin, 1/2 X 1.500 Clevis
(Superseded to 911-0231)

$6.49

$

In Stock, only 2 left!

0

Cub Cadet 714-0115

Pin, 1/8 X 1 Cot

$3.99

$

In Stock, only 2 left!

0

20

Cub Cadet 723-3026

Bail, Upper Link Storage

$

$

Not available

Cub Cadet 736-3063

Washer, .406 X 1.000 X .105 Pln

$

$

Not available

Cub Cadet 710-0514

Bolt, 3/8 X 1 Type 5

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 703-0444

Bar, Drawbar

Note: (Serial No. 719999 and Below)

$

$

Not available

Cub Cadet 703-0869

Bar, Drawbar

Note: (Serial No. 720000 and Above)

$

$

Not available

Cub Cadet 710-3005

Bolt, 3/8 X 1-1/4 Type 5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 710-0514

Bolt, 3/8 X 1 Type 5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0798

Nut, 3/8 Type 5

$4.49

$

In Stock, Qty 6

0

Cub Cadet 736-0140

Washer, .406 X .812 X .051

$7.49

$

In Stock, Qty 6

0

22

Cub Cadet 703-0445

Plate Assy, Drawbar Support

$

$

Not available

Cub Cadet 710-0514

Bolt, 3/8 X 1 Type 5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0798

Nut, 3/8 Type 5

$4.49

$

In Stock, Qty 6

0

Cub Cadet 736-0140

Washer, .406 X .812 X .051

$7.49

$

In Stock, Qty 6

0
