1912 (146-982-100) - Cub Cadet Super Garden Tractor Ignition Parts Diagram

Super Garden Tractor

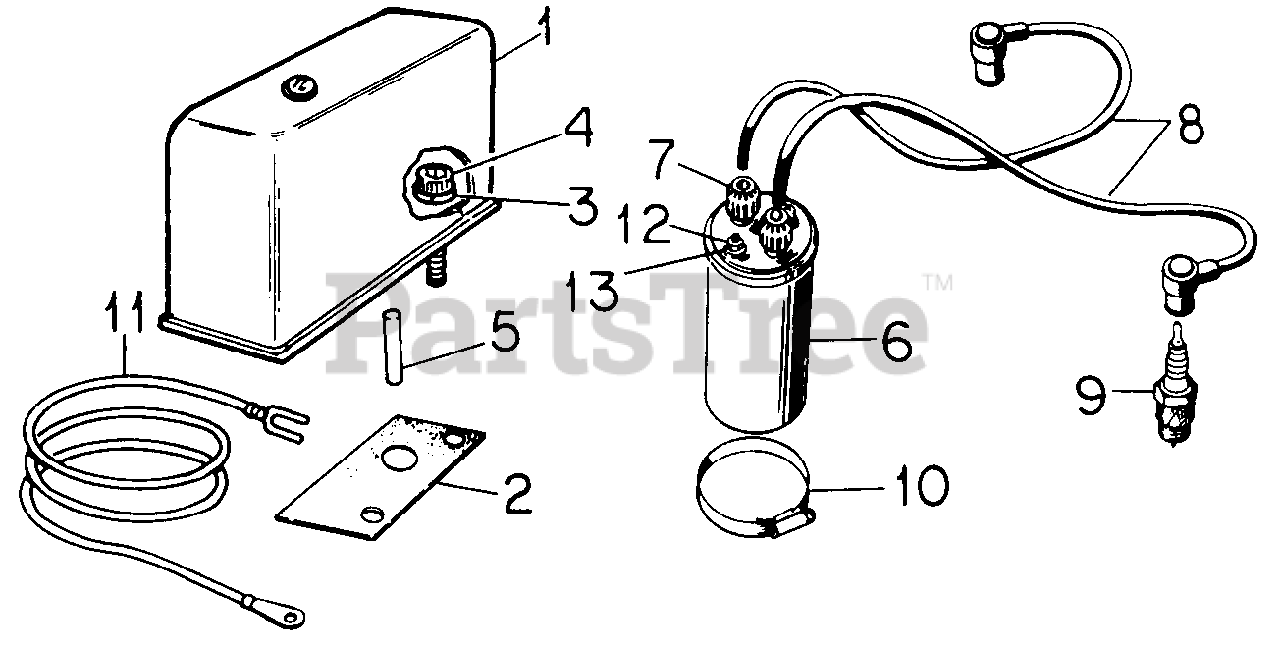

Ignition Parts Diagram

  • Title
1

Cub Cadet ME-160-1303

Box Assy, Breaker

Note: (For list of components see Breaker Box this section)

$

$

Not available

2

Cub Cadet ME-160-1150

Gasket
(Superseded to ME-160-1368)

$

$

Not available

3

Cub Cadet 736-0329

Washer, 1/4 Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

4

Screw, 1/4 X 3/4 H/Shd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

5

Cub Cadet ME-160-1151

Plunger, Breaker Point Assy

$

$

Not available

6

Cub Cadet ME-166-0772

Coil, Ignition

$

$

Not available

7

Cub Cadet ME-166-0604

Cap, Ignition Coil

$

$

Not available

8

Cub Cadet ME-167-1602

Kit, Spark Plug Cable

$

$

Not available

9

Cub Cadet 759-3335

Plug, Spark

$

$

Not available

10

Cub Cadet ME-166-0588

Clamp, Coil

$

$

Not available

11

Cub Cadet ME-336-2378

Cable Assy, Block to Coil

$

$

Not available

12

Cub Cadet ME-166-0554

Nut, Special Hex

$

$

Currently unavailable

13

Cub Cadet IH-78613-C1

Washer, Lock

$

$

Currently unavailable

Screw, 1/4 X 1/2 Znp H/Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available
