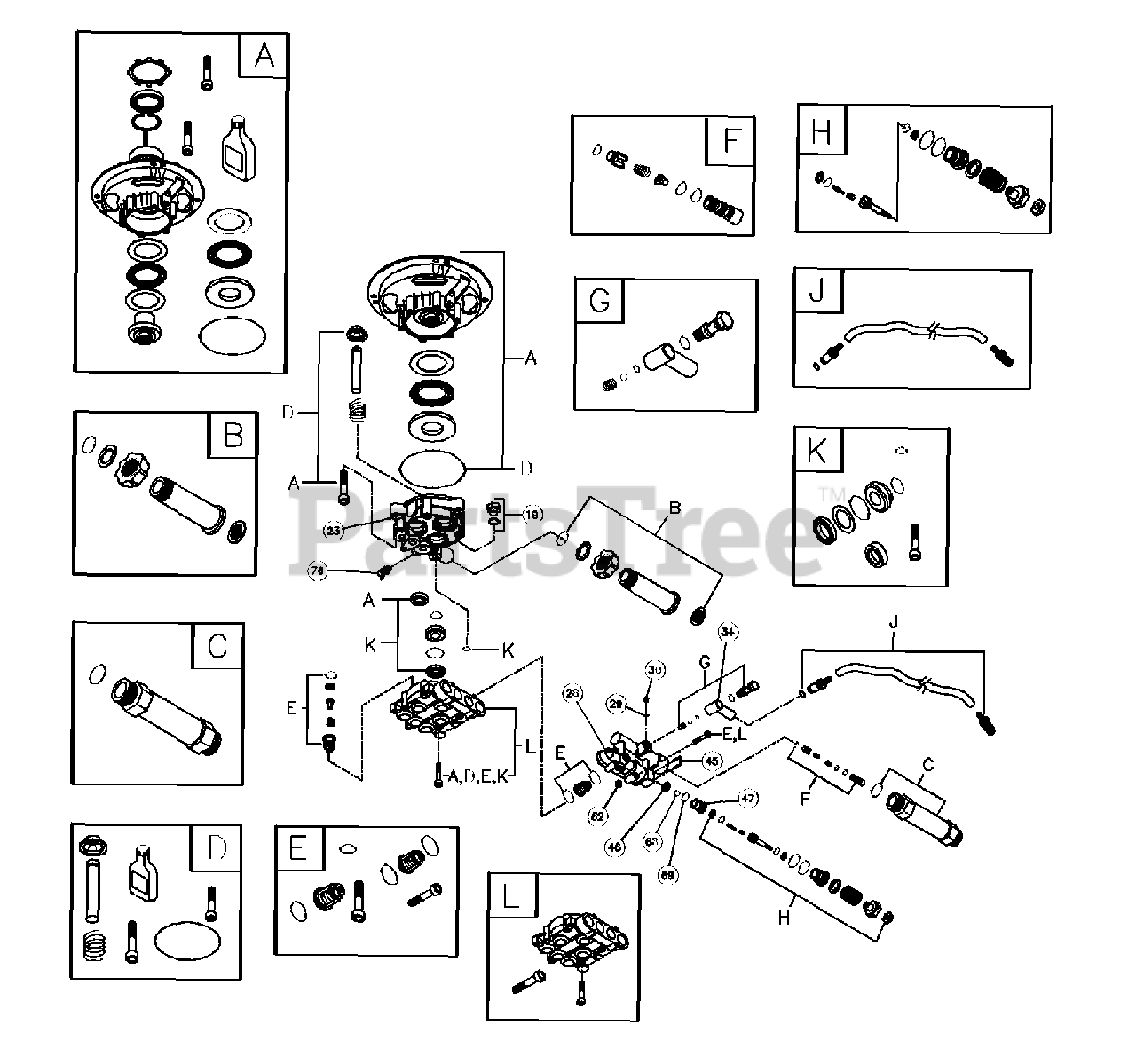

1909-0 - Speed Clean 2,300 PSI Pressure Washer Pump Parts Diagram

2,300 PSI Pressure Washer

Pump Parts Diagram

  • Title

19

Briggs & Stratton 190571

CAP, Oil

$

$

Currently unavailable

23

Briggs & Stratton 190626

CARTER

$

$

Currently unavailable

28

Briggs & Stratton 190627

MANIFOLD

$

$

Currently unavailable

29

Briggs & Stratton 190575

O-RING

$

$

Currently unavailable

30

Briggs & Stratton 190576

SCREW

$

$

Currently unavailable

34

Briggs & Stratton 190577

CONNECTION, Chemical Inlet

$

$

Currently unavailable

45

Briggs & Stratton 190578

PIN

$

$

Currently unavailable

46

Briggs & Stratton 190579

VALVE, Seat Plate, Brass

$

$

Currently unavailable

47

Briggs & Stratton 190580

VALVE, Seat, Stainless

$

$

Currently unavailable

62

Briggs & Stratton 190581

CAP

$

$

Currently unavailable

68

Briggs & Stratton 190582

BALL, Stainless Steel

$

$

Currently unavailable

69

Briggs & Stratton 190584

O-RING

$

$

Currently unavailable

76

Briggs & Stratton 21783

THERMO RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

77

Briggs & Stratton 190586

OIL BOTTLE

$

$

Currently unavailable

A

Briggs & Stratton 190709

KIT,WOBBLE PLATE BEARING

Note: Service kit includes all parts shown within the box.

$

$

Currently unavailable

B

Briggs & Stratton 190632

KIT,WATER INLET,ALUM

Note: Service kit includes all parts shown within the box.

$

$

Currently unavailable

C

Briggs & Stratton 190634

KIT, OUTLET,ALUM

Note: Service kit includes all parts shown within the box.

$

$

Currently unavailable

D

Briggs & Stratton 190710

KIT, PISTON

Note: Service kit includes all parts shown within the box.

$

$

Currently unavailable

E

Briggs & Stratton 190591

KIT, CHECK VALVES

Note: Service kit includes all parts shown within the box.

$

$

Currently unavailable

F

Briggs & Stratton 190592

KIT, INLET CHECK

Note: Service kit includes all parts shown within the box.

$

$

Currently unavailable

G

Briggs & Stratton 190593

KIT, CHEMICAL INJECTION

Note: Service kit includes all parts shown within the box.

$

$

Currently unavailable

H

Briggs & Stratton 190594

KIT, UNLOADER STEM

Note: Service kit includes all parts shown within the box.

$

$

Currently unavailable

J

Briggs & Stratton 189971

KIT, CHEMICAL HOSE

Note: Service kit includes all parts shown within the box.

$

$

Currently unavailable

K

Briggs & Stratton 190595

KIT, SEAL SET

Note: Service kit includes all parts shown within the box.

$

$

Currently unavailable

L

Briggs & Stratton 190596

KIT, HEAD BRASS

Note: Service kit includes all parts shown within the box.

$

$

Currently unavailable
