1906-0 - Husqvarna 3,700 PSI Pressure Washer Unloader Parts Diagram

3,700 PSI Pressure Washer

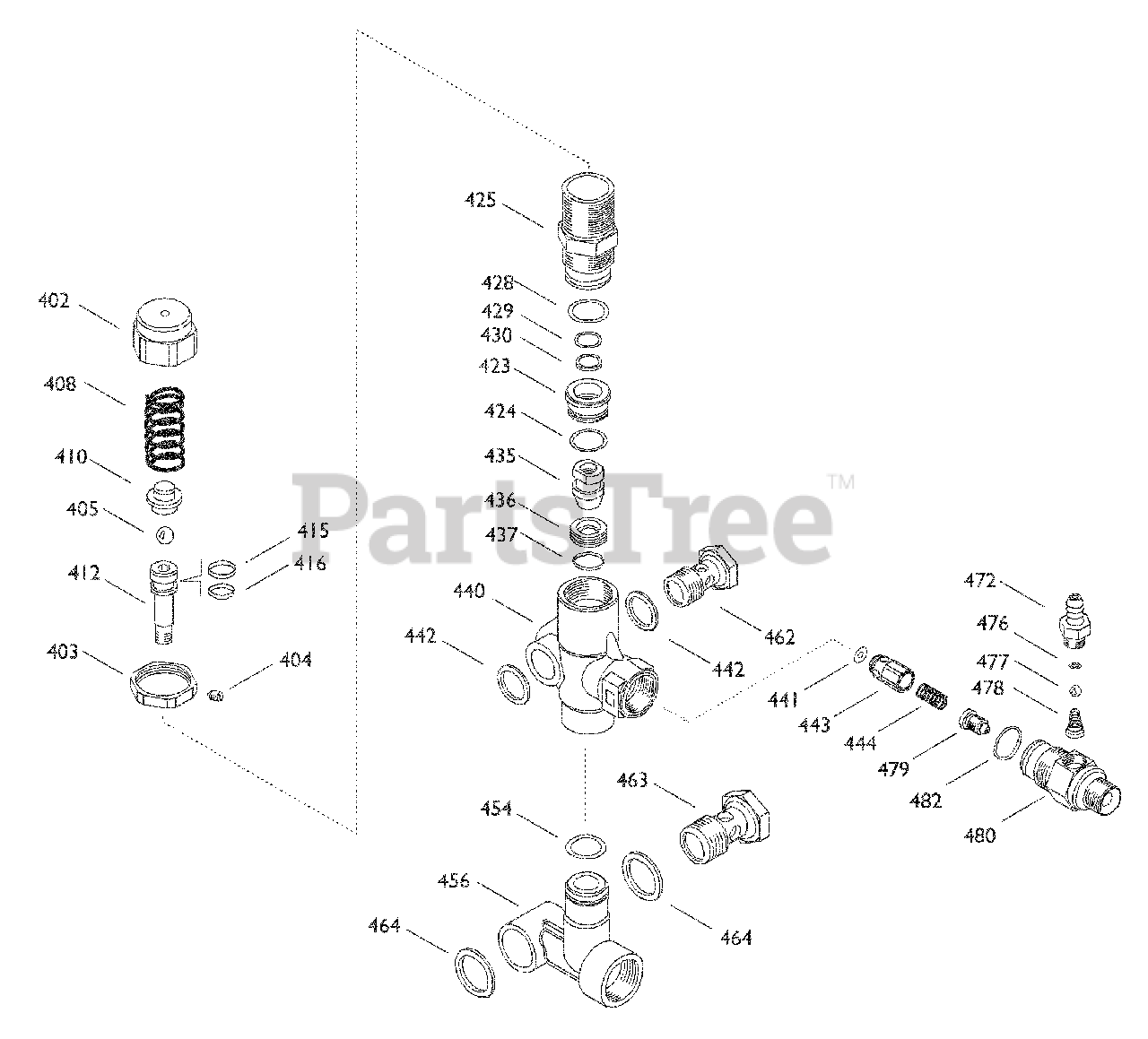

Unloader Parts Diagram

  • Title

402

Briggs & Stratton 188162GS

Cap, Adjusting

$

$

Currently unavailable

403

Briggs & Stratton 188163GS

Nut, Locking

$

$

Currently unavailable

404

Briggs & Stratton 188164GS

Screw

$

$

Currently unavailable

405

Briggs & Stratton 188165GS

Ball

$

$

Currently unavailable

408

Briggs & Stratton 188166GS

Spring

$

$

Currently unavailable

410

Briggs & Stratton 188167GS

Retainer, Spring

$

$

Currently unavailable

412

Briggs & Stratton 188168GS

Stem, Piston

$

$

Currently unavailable

415

Briggs & Stratton 188169GS

Back-up-Ring, Piston Stem

$

$

Currently unavailable

416

Briggs & Stratton 188170GS

O-Ring, Piston Stem

$

$

Currently unavailable

423

Briggs & Stratton 188171GS

Spacer

$

$

Currently unavailable

424

Briggs & Stratton 188172GS

O-Ring, Spacer

$

$

Currently unavailable

425

Retainer, Piston

Note: Only available as a part of the complete assembly (Item 400)

$

$

Not available

428

Briggs & Stratton 188174GS

O-Ring, Retainer

$

$

Currently unavailable

429

Briggs & Stratton 188175GS

O-Ring, Piston Stem

$

$

Currently unavailable

430

Briggs & Stratton 188176GS

Back-up-Ring, Piston Stem

$

$

Currently unavailable

435

Briggs & Stratton 188177GS

Valve/Ball Assembly

$

$

Currently unavailable

436

Briggs & Stratton 188178GS

Seat

$

$

Currently unavailable

437

Briggs & Stratton 188179GS

O-Ring, Seat

$

$

Currently unavailable

440

Valve Body

Note: Only available as a part of the complete assembly (Item 400)

$

$

Not available

441

Briggs & Stratton 188181GS

O-Ring, Check Valve

$

$

Currently unavailable

442

Briggs & Stratton 188182GS

Washer, Seal

$

$

Not available

443

Briggs & Stratton 188183GS

Valve, Check

$

$

Currently unavailable

444

Briggs & Stratton 188184GS

Spring

$

$

Currently unavailable

454

Briggs & Stratton 188185GS

O-Ring, Manifold

$

$

Currently unavailable

456

Manifold

Note: Only available as a part of the complete assembly (Item 400)

$

$

Not available

462

Briggs & Stratton 188187GS

Screw

$57.99

$

Usually ships in 2-12 days

0

463

Briggs & Stratton 188188GS

Screw

$101.99

$

Usually ships in 2-12 days

0

464

Briggs & Stratton 188189GS

Washer, Seal

$34.99

$

Usually ships in 2-12 days

0

472

Briggs & Stratton 188190GS

Barb, Fixed

$

$

Currently unavailable

476

Briggs & Stratton 188191GS

O-Ring, Retainer

$

$

Currently unavailable

477

Briggs & Stratton 188192GS

Ball

$11.99

$

Usually ships in 2-12 days

0

478

Briggs & Stratton 188193GS

Spring

$16.99

$

Usually ships in 2-12 days

0

479

Briggs & Stratton 188195GS

Injector Orifice

$

$

Currently unavailable

480

Body, Unloader Mount

Note: Only available as a part of the complete assembly (Item 400)

$

$

Not available

482

Briggs & Stratton 188197GS

O-Ring

$

$

Currently unavailable

Briggs & Stratton 188212GS

Oil, Bottle, CAT, 21 oz Oil, Service Kits:

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 188198GS

Kit, Seal

Note: (Includes: 98,106,121,127,128)

$310.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 188199GS

Kit, Valve

Note: (Includes: 163,164,166,167,168,172)

$217.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 188200GS

Assembly, Fixed Barb

Note: (Includes: 472,476,477,478)

$86.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 188201GS

Kit, O-Ring
(Superseded to 187953GS)

Note: (Includes: 415,416,424,428,429,430,437,441,454)

$329.99

$

Usually ships in 2-12 days

0
