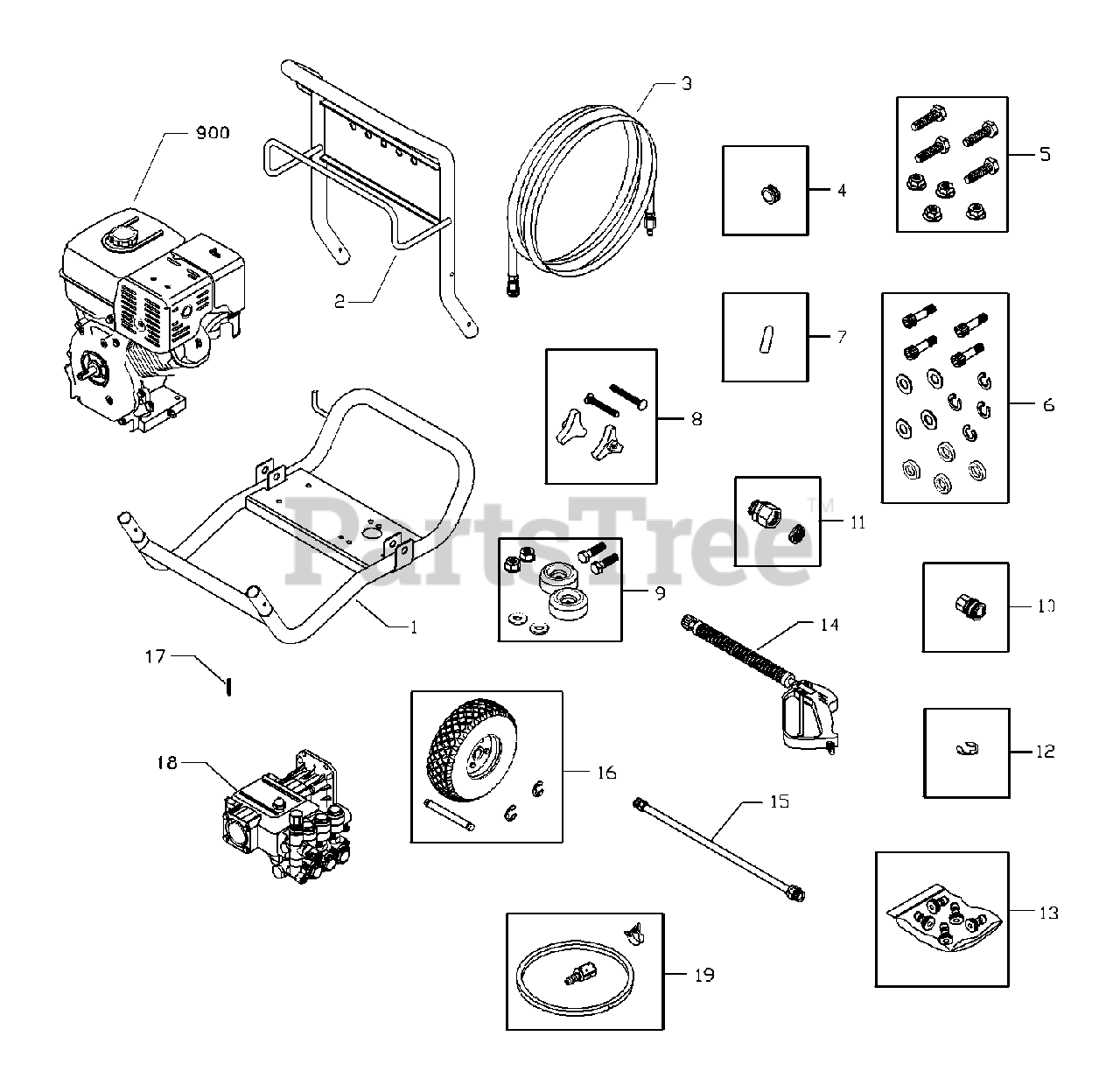

1906-0 - Husqvarna 3,700 PSI Pressure Washer Main Unit Parts Diagram

3,700 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B191938GS

BASE
(Superseded to B193075GS)

$

$

Not available

2

Briggs & Stratton B191942GS

HANDLE
(Superseded to B196133GS)

$164.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B4805GS

HOSE
(Superseded to 205734GS)

$168.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 192886GS

KIT, Engine Mounting Hardware

$6.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192893GS

KIT, Pump Mounting Hardware

$26.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B2516GS

VINYL CAP

$2.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2203GS

KIT, Handle Fastening

$5.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, Qty 6

0

10

Briggs & Stratton 95458GS

QUICK CONNECT
(Superseded to 703824)

$

$

Not available

11

Briggs & Stratton 192135GS

KIT, Garden Hose Inlet

$27.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 10

0

13

Briggs & Stratton B4847GS

KIT, Spray Tips

$32.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B1436BGS

GUN
(Superseded to 704311)

$115.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 190779GS

EXTENSION
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

16

Briggs & Stratton 192317GS

KIT, Wheel

$53.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 188054GS

KEY
(Superseded to 703890)

$4.99

$

In Stock, Qty 6

0

18

Briggs & Stratton 187660GS

ASSY, Pump

Note: (Includes Item 6) (see "Pump" & "Unloader"); Complete Pump available from Cat Pumps only.

$

$

Not available

19

Briggs & Stratton 192796GS

KIT, Chemical Hose/Filter

$16.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE

$

$

Not available

Briggs & Stratton 192103GS

MANUAL, Owner's

Note: Items Not Illustrated:

$

$

Not available

Briggs & Stratton 192894GS

KIT, Decals

Note: Items Not Illustrated:

$57.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

OIL, Engine
(Superseded to 100005)

Note: Items Not Illustrated:

$8.99

$

In Stock, Qty 20+

0
