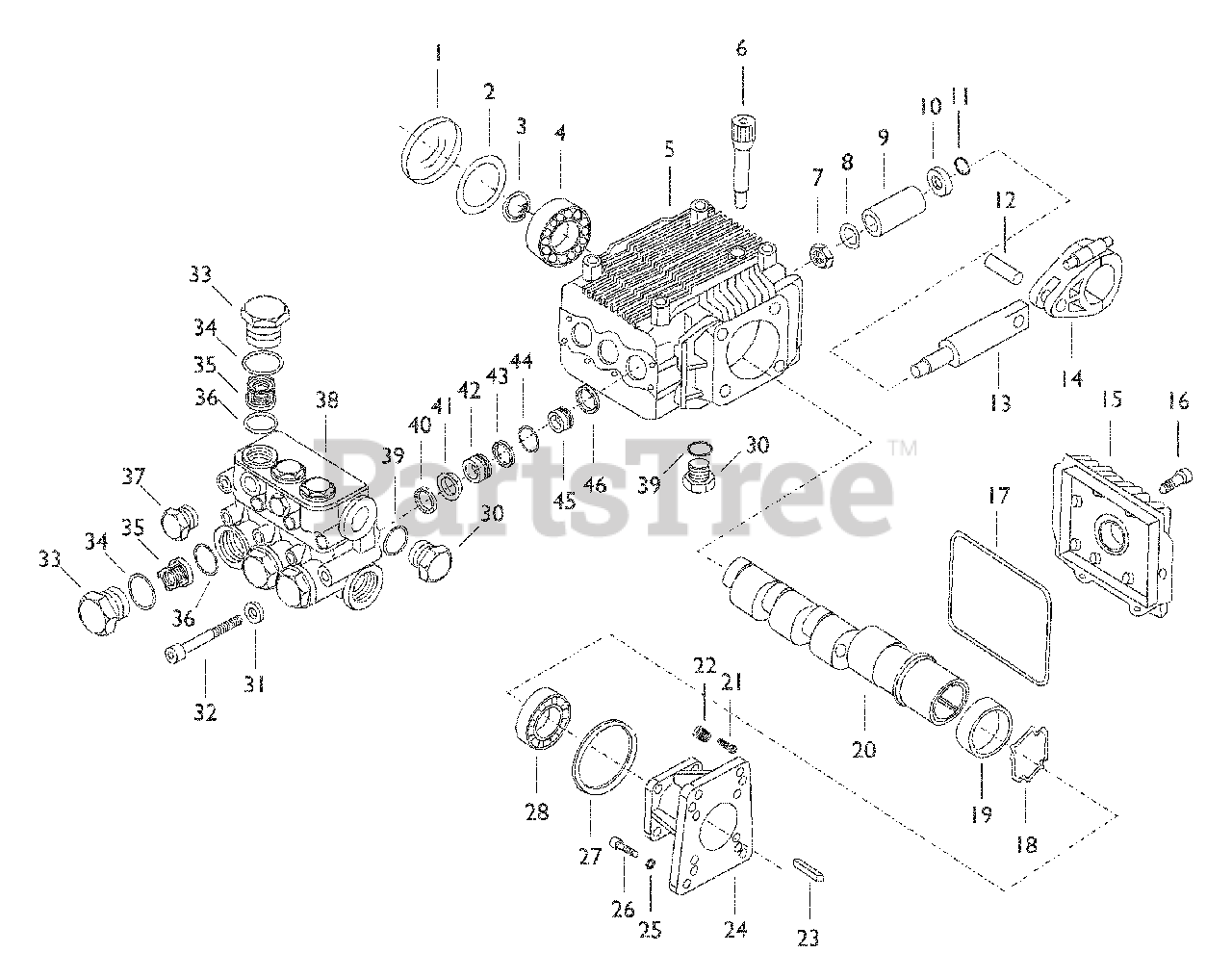

1905-0 - Troy-Bilt 3,400 PSI Pressure Washer Pump Parts Diagram

3,400 PSI Pressure Washer

Pump Parts Diagram

  • Title

1

Briggs & Stratton 110B2126GS

Cap

$19.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 10887628PGS

Circlip

$5.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 112B2126GS

Snap Ring

$2.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 113B2126GS

Bearing

$104.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 109B2126GS

Pump Body

$

$

Not available

6

Briggs & Stratton 11287628PGS

Oil Cap/Dipstick

$28.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 11087822PGS

Nut

$6.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 11187822PGS

Piston Washer

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 123B2126GS

Piston

$140.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 11687628PGS

Spacer Disc

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 11587628PGS

O-Ring
(Superseded to 201-B2126GS)

$421.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 115B2126GS

Piston Pin

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 120B2126GS

Guiding Piston

$102.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 119B2126GS

Con Rod

$56.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 118B2126GS

Complete Rear Cover

$83.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 117B2126GS

Screw

$4.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 116B2126GS

O-Ring

$6.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 12687628PGS

Snap Ring

$24.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 12587628PGS

Bearing

$82.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 149B2126GS

Hollow Shaft

$633.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 155B2327GS

Screw

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 152B2126GS

Grub Screw

$4.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 63281GS

Key
(Superseded to 703890)

$4.99

$

In Stock, Qty 6

0

24

Briggs & Stratton 150B2126GS

Gas Engine Flange

$182.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 22237GS

Washer, Lock

$2.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 23645GS

Screw

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 151B2126GS

Bushing

$39.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 12187822PGS

Seal

$63.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 10487628PGS

Plug

$11.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 137B2126GS

Washer

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 10087822PGS

Screw

$6.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 102B2126GS

Plug
(Superseded to 190641GS)

$31.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 10187822PGS

O-Ring
(Superseded to 100B2327GS)

$5.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 10287822PGS

Complete Valve

$21.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 10387822PGS

O-Ring

$4.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 11193360PGS

Plug

$9.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 136B2126GS

Head

$530.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 10387628PGS

O-Ring

$18.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 106B2126GS

Support Ring

$3.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 10587822PGS

Gasket

$55.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 108B2126GS

Piston Guide

$34.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 10393360PGS

Gasket

$13.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 10493360PGS

O-Ring

$4.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 131B2126GS

Rear Piston Guide

$23.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 16593360PGS

Seal

$20.99

$

Usually ships in 2-12 days

0

A

Briggs & Stratton 50087628PGS

Valve Kit

Note: Includes 6 of item No(s). 35 & 36

$

$

Not available

B

Briggs & Stratton 201B2126GS

Piston Kit

Note: Includes 3 of item No. 8

$421.99

$

Usually ships in 2-12 days

0

C

Briggs & Stratton 202B2126GS

Oil Seal Kit

Note: Includes 1 of item No(s). 1 & 17; 3 of item No. 46

$78.99

$

Usually ships in 2-12 days

0

D

Briggs & Stratton 203B2126GS

Water Seal Kit

Note: Includes 3 of item No(s). 41 & 44

$201.99

$

Usually ships in 2-12 days

0

E

Briggs & Stratton 204B2126GS

Support Ring Kit

Note: Includes 3 of item No. 40

$10.99

$

Usually ships in 2-12 days

0
