190432-5138-01 - Briggs & Stratton Horizontal Engine Alternator Chart Parts Diagram

Horizontal Engine

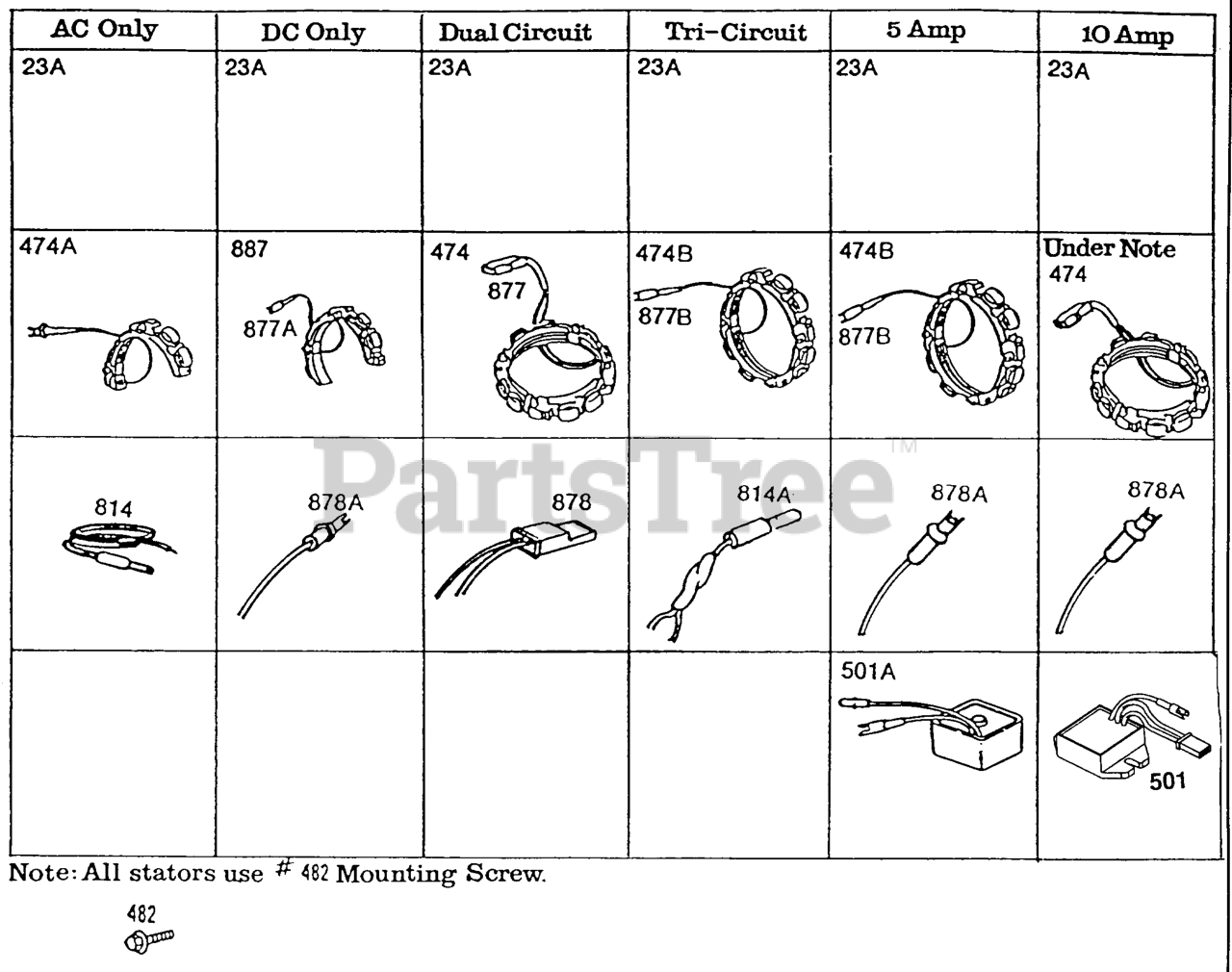

Alternator Chart Parts Diagram

  • Title

23A

Briggs & Stratton 392034

Flywheel/Gear Assy For Engines Without Alternator (Aluminum Ring Gear)

Note: For Use Only on Electric Starter Engines WITHOUT ALTERNATOR (Includes Aluminum Ring Gear.)

$

$

Not available

23A

Briggs & Stratton 391983

Flywheel/Gear Assy (For Engines With Alternator)

Note: For Use on Engines WITH ALTERNATOR. (Includes Aluminum Ring Gear.)

$

$

Not available

474A

Briggs & Stratton 391595

Alternator (Ac Only)

$98.99

$

Usually ships in 2-12 days

0

474B

Briggs & Stratton 392595

Stator, Alternator (Tri Circuit, 9Amp Regulated)
(Superseded to 592829)

$102.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 393474

Stator, Alternator (Dual-Circuit)
(Superseded to 592831)

$101.99

$

In Stock, Qty 8

0

482

Briggs & Stratton 93621

Screw, Tapping Hex
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

501A

Briggs & Stratton 491546

Regulator Assy (9 Amp.)
(Superseded to 794360)

$64.99

$

In Stock, only 2 left!

0

501

Briggs & Stratton 394890

Regulator
(Superseded to 845907)

Note: (10, 13, or 16 Amp, Depending on Size of Flywheel Magnets)

$61.99

$

In Stock, Qty 20+

0

814A

Briggs & Stratton 392606

Harness Assy (Tri-Circuit)
(Superseded to 691955)

$69.99

$

Usually ships in 2-12 days

0

814

Briggs & Stratton 390867

Harness-Alt (Ac Only)

$18.99

$

Usually ships in 2-12 days

0

877B

Briggs & Stratton 393537

Alternator Connecto (Tri Circuit & 9amp)

$

$

Not available

877A

Briggs & Stratton 393814

Alternator Connecto (Dc Only)

$18.99

$

In Stock, only 2 left!

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

$20.99

$

In Stock, only 1 left!

0

878A

Briggs & Stratton 393422

Socket/Wire Assy (Dc Only)
(Superseded to 692306)

$17.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 393362

Harness, Alternator (Dual Circuit)
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

887

Briggs & Stratton 391529

Stator, Alternator (Dc Only)
(Superseded to 592828)

$124.99

$

Usually ships in 2-12 days

0
