190407-6025-01 - Briggs & Stratton Horizontal Engine Muffler Grps Parts Diagram

Horizontal Engine

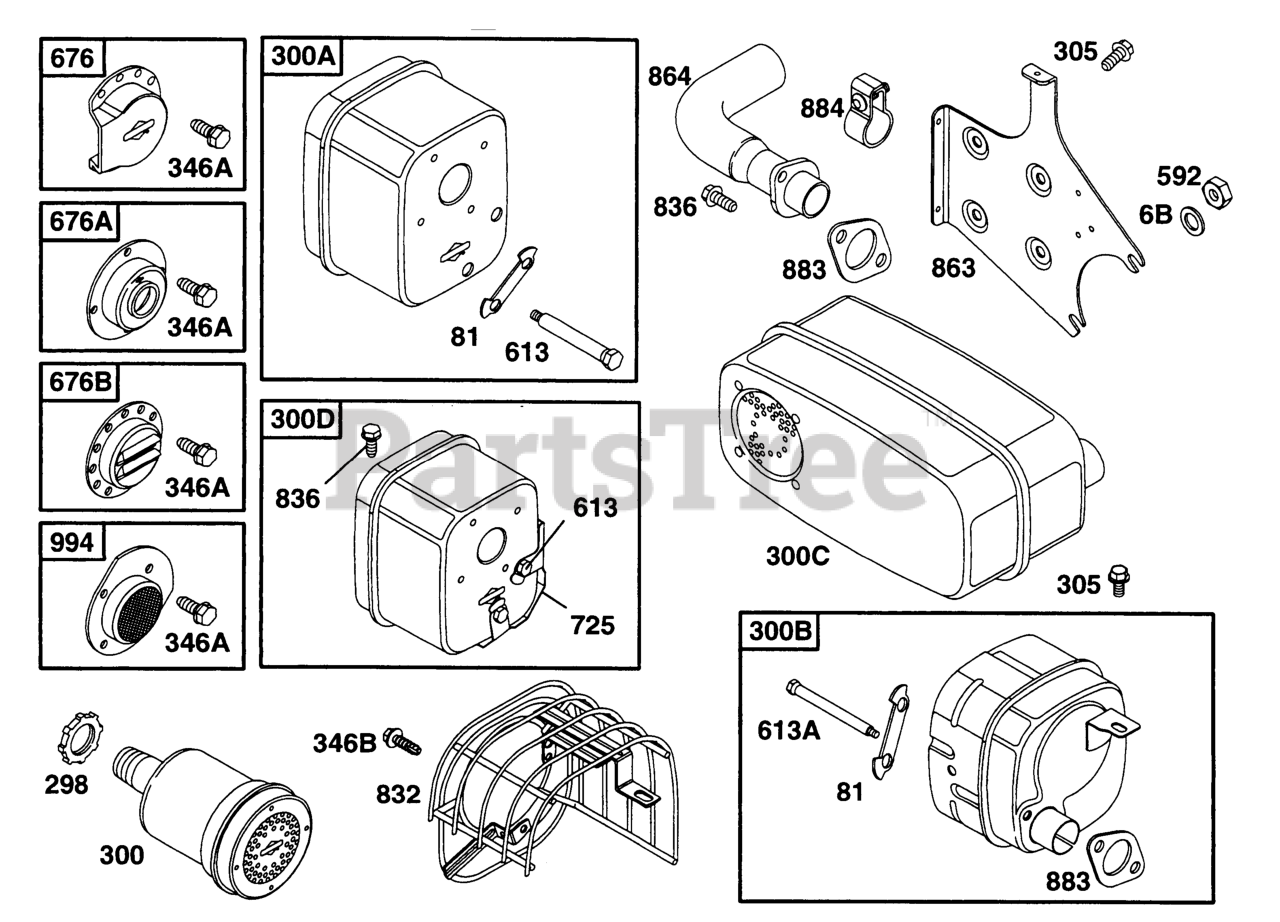

Muffler Grps Parts Diagram

  • Title

6B

Briggs & Stratton 94927

Washer, Plain
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

6B

Briggs & Stratton 93852

Washer, Steel Zinc
(Superseded to 690310)

$4.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 222263

Lock, Screw Head (3/8" Dia. Bolt Holes)
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

298

Briggs & Stratton 261409

Locknut, Muffler/El
(Superseded to 690453)

$4.49

$

In Stock, Qty 9

0

300A

Briggs & Stratton 494221

Muffler-Exhaust

$

$

Not available

300D

Briggs & Stratton 494222

Muffler-Exhaust

$68.99

$

Usually ships in 2-12 days

0

300C

Briggs & Stratton 498984

Muffler-Exhaust
(Superseded to 498984S)

$84.99

$

Usually ships in 2-12 days

0

300B

Briggs & Stratton 391313

Muffler-Exhaust
(Superseded to 692304)

$34.99

$

In Stock, only 4 left!

0

300

Briggs & Stratton 393010

Muffler Assy (Round Lo-tone)
(Superseded to 393010S)

$22.99

$

In Stock, only 4 left!

0

305

Briggs & Stratton 94786

Screw, Machine Hex (1/2" Long)
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

346A

Briggs & Stratton 94896

Screw, Tapping Hex
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

346B

Briggs & Stratton 93606

Screw-Hex

$3.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 94726

Nut, Hex Flange
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

613A

Briggs & Stratton 94042

Screw, Shoulder Muf
(Superseded to 691632)

$8.49

$

In Stock, only 1 left!

0

613

Briggs & Stratton 94054

Screw, Shoulder Muf
(Superseded to 691351)

$8.49

$

In Stock, only 1 left!

0

676B

Briggs & Stratton 393758

Deflector-Muff (Louvered Outlet)

$26.99

$

Usually ships in 2-12 days

0

676A

Briggs & Stratton 395700

Deflector-Muff (Direct Outlet)

$15.99

$

In Stock, only 1 left!

0

676

Briggs & Stratton 393757

Deflector-Muff (Side Outlet)
(Superseded to 796956)

$10.99

$

In Stock, only 1 left!

0

725

Briggs & Stratton 223645

Shield-Muffler
(Superseded to 690433)

$21.99

$

Usually ships in 2-12 days

0

832

Briggs & Stratton 492337

Guard-Muffler
(Superseded to 691988)

$50.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 94905

Screw, Machine Hex
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

863

Briggs & Stratton 224479

Bracket-Muffler
(Superseded to 690454)

$44.99

$

Usually ships in 2-12 days

0

864

Briggs & Stratton 494009

Manifold-Muffler
(Superseded to 690797)

$60.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272309

Gasket-Muffler
(Superseded to 692237)

Note: Included in Gasket Set-Part No. 299577. Included in Valve Overhaul Gasket Set-Part No. 498533

$5.49

$

In Stock, only 2 left!

0

884

Briggs & Stratton 392649

Clamp, Muffler Grp (Used With Muffler 493963)
(Superseded to 691956)

$15.99

$

In Stock, only 3 left!

0

994

Briggs & Stratton 399541

Spark Arrester

$28.99

$

Usually ships in 2-12 days

0
