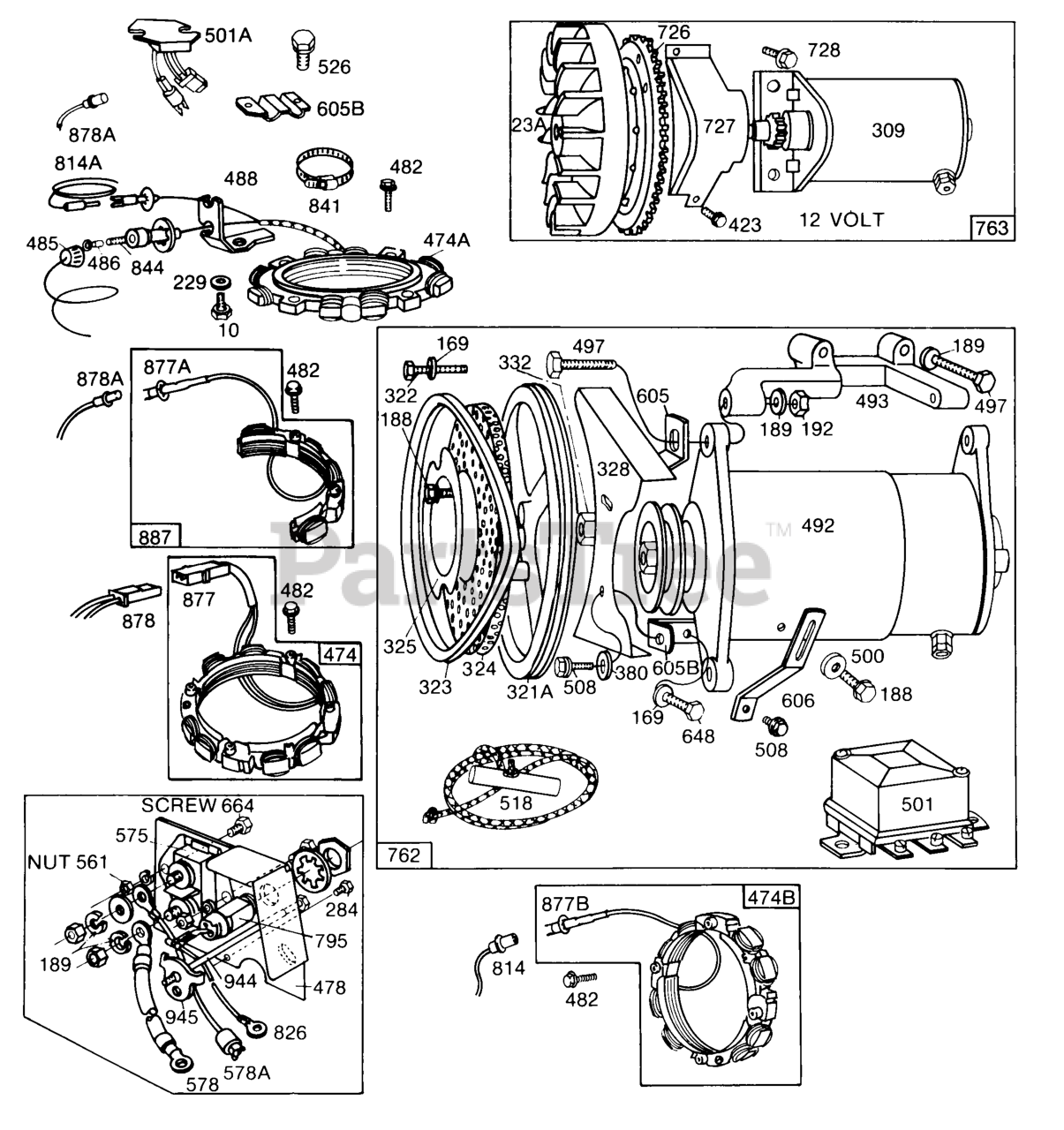

190407-1582-XX - Briggs & Stratton Horizontal Engine Electric Starters Parts Diagram

Horizontal Engine

Electric Starters Parts Diagram

  • Title

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

23A

Briggs & Stratton 392034

Flywheel/Gear Assy For Engines Without Alternator (Aluminum Ring Gear)

Note: For use only on electric starter engines WITHOUT ALTERNATOR (Includes aluminum ring gear). For use only with starter motors with Plastic Drive Gear.

$

$

Not available

23A

Briggs & Stratton 391983

Flywheel/Gear Assy (For Engines With Alternator)

Note: For use on engines WITH ALTERNATOR (Includes aluminum ring gear). For use only with starter motors with Plastic Drive Gear.

$

$

Not available

169

Briggs & Stratton 90832

Washer-Lock
(Superseded to 22097GS)

$3.49

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

189

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 91397

Nut, Hex (5/16-18)
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

229

Briggs & Stratton 220680

Washer, Steel
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

284

Briggs & Stratton 93572

Screw, Hex Head Tap (10-32 X 3/8)
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

309

Briggs & Stratton 392749

Motor/Drive Assy (For 3-1/16" Housing Length)
(Superseded to 497595)

Note: Old Style: Brush End Head is 13/16" Wide.

$110.99

$

In Stock, Qty 20+

0

309

Briggs & Stratton 393851

Starter, Electric G (B&s 110V, 3-1/2" Housing Length)
(Superseded to 396505)

$319.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 394805

Motor/Drive Assy (For 3-1/16" Housing Length)
(Superseded to 497595)

$110.99

$

In Stock, Qty 20+

0

321A

Briggs & Stratton 210899

Pulley-Vee Belt

$39.99

$

Usually ships in 2-12 days

0

322

Briggs & Stratton 90931

Screw-Hex 1/4-20 X 2 1/4"

$3.99

$

Usually ships in 2-12 days

0

323

Briggs & Stratton 67708

Belt-Vee

$19.99

$

Usually ships in 2-12 days

0

324

Briggs & Stratton 221067

Screen-Rotating

$51.99

$

Usually ships in 2-12 days

0

325

Briggs & Stratton 299307

Pulley-Rope Start (With Screen)

$29.99

$

Usually ships in 2-12 days

0

328

Briggs & Stratton 221447

Guard-Belt

$28.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 92284

Nut, Jam (Flywheel)
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

380

Briggs & Stratton 91324

Washer

$

$

Not available

423

Briggs & Stratton 93410

Screw-Hex

$7.99

$

In Stock, only 1 left!

0

423

Briggs & Stratton 93984

Screw, Shoulder Hex
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

474B

Briggs & Stratton 392595

Stator, Alternator (Tri Circuit, 9Amp Regulated)
(Superseded to 592829)

$102.99

$

Usually ships in 2-12 days

0

474A

Briggs & Stratton 393800

Alternator (Dual Circuit With Fuse)
(Superseded to 592831)

$101.99

$

In Stock, Qty 8

0

474

Briggs & Stratton 393474

Stator, Alternator (Dual-Circuit)
(Superseded to 592831)

$101.99

$

In Stock, Qty 8

0

478

Briggs & Stratton 222751

Starter Panel
(Superseded to 395408)

Note: Used Before Code Date 81102100

$80.99

$

Usually ships in 2-12 days

0

478

Briggs & Stratton 395410

Panel-Instrument
(Superseded to 395408)

$80.99

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93621

Screw, Tapping Hex
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

485

Briggs & Stratton 390888

Wire/Fuse Cap

$14.99

$

Usually ships in 2-12 days

0

486

Briggs & Stratton 391507

Rectifier

$17.99

$

Usually ships in 2-12 days

0

488

Briggs & Stratton 222211

Bracket-Output

$6.49

$

Usually ships in 2-12 days

0

492

Briggs & Stratton 296028

Starter-Gen (12v Delco-Remy #1101695 & Pulley #1949358)

$

$

Not available

493

Briggs & Stratton 211594

Bracket-Starter

$39.99

$

Usually ships in 2-12 days

0

497

Briggs & Stratton 91203

Screw, Hex Head Cap (5/16-18 X 1-3/4")
(Superseded to 691614)

$6.99

$

Usually ships in 2-12 days

0

500

Briggs & Stratton 91325

Washer-Plain
(Superseded to 690282)

$3.99

$

Usually ships in 2-12 days

0

501A

Briggs & Stratton 295924

Regulator (Flat Mount, Delco-remy)

$76.99

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 393374

Regulator, Alt (10 Amp)
(Superseded to 845907)

$61.99

$

In Stock, Qty 20+

0

508

Briggs & Stratton 93294

Screw, Sem (5/8" Long)
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

518

Briggs & Stratton 69932

Rope/Grip Assy (55")
(Superseded to 69932S)

$9.49

$

In Stock, only 1 left!

0

526

Briggs & Stratton 93343

Screw, Tapping Hex
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0

561

Briggs & Stratton 92278

Nut, Hex (1/4-20)
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

575

Briggs & Stratton 299139

Switch, Starter Grp
(Superseded to 692303)

$

$

Not available

578A

Briggs & Stratton 393109

Wire Assy (Starter Switch To Alternator)

$14.99

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 392683

Wire-Starter Switch
(Superseded to 690630)

$12.99

$

Usually ships in 2-12 days

0

605B

Briggs & Stratton 297171

Bracket-Support (Lower)

$5.49

$

Usually ships in 2-12 days

0

605

Briggs & Stratton 222934

Bracket-Regulator
(Superseded to 691177)

$24.99

$

Usually ships in 2-12 days

0

606

Briggs & Stratton 221443

Strap-Adjusting

$17.99

$

Usually ships in 2-12 days

0

648

Briggs & Stratton 91439

Screw-Cap, Hex. Head 1/4-20 X 3/8"

$

$

Not available

664

Briggs & Stratton 93415

Screw-Hex (1/4-20 X 3/4)
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

726

Briggs & Stratton 392134

Gear, Ring Kit
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 221940

Guard-Ring Gear
(Superseded to 690490)

Note: Uses: 93623 Screw (2)

$14.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 391629

Cover-Starter Gear (Used With Motor 392749)
(Superseded to 395405)

$

$

Not available

727

Briggs & Stratton 395405

Cover-Str Drive

$

$

Not available

728

Briggs & Stratton 93523

Screw, Sem Hex Head (5/16-18 X 11/16" Long)
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

762

Briggs & Stratton 297335

Electric Starter-Generator Kit 12 Volt (Low Position)

$

$

Not available

763

Briggs & Stratton 391604

Starter Kit, Elec 12 Volt (Gear Drive)
(Superseded to 394952)

$

$

Not available

795

Briggs & Stratton 392697

Switch, Ignition (Toggle)
(Superseded to 496590)

Note: Uses: 93888 Nut-Hex.

$18.99

$

Usually ships in 2-12 days

0

795

Briggs & Stratton 392833

Key Switch

$41.99

$

In Stock, only 2 left!

0

814A

Briggs & Stratton 390867

Harness-Alt (Ac Only)

$18.99

$

Usually ships in 2-12 days

0

814

Briggs & Stratton 392606

Harness Assy (Tri-Circuit)
(Superseded to 691955)

$69.99

$

Usually ships in 2-12 days

0

826

Briggs & Stratton 392684

Wire, Ground Assy
(Superseded to 690647)

Note: (Starter Switch to Ground Wire Terminal)

$18.99

$

In Stock, only 1 left!

0

841

Briggs & Stratton 393514

Clamp-Regulator
(Superseded to 690635)

$24.99

$

Usually ships in 2-12 days

0

844

Briggs & Stratton 261269

Spring-Diode

$2.49

$

Usually ships in 2-12 days

0

877B

Briggs & Stratton 393537

Alternator Connecto (Tri Circuit & 9amp)

$

$

Not available

877A

Briggs & Stratton 393814

Alternator Connecto (Dc Only)

$18.99

$

In Stock, only 2 left!

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

$20.99

$

In Stock, only 1 left!

0

878A

Briggs & Stratton 393422

Socket/Wire Assy (Dc Only)
(Superseded to 692306)

$17.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 393362

Harness, Alternator (Dual Circuit)
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

887

Briggs & Stratton 391529

Stator, Alternator (Dc Only)
(Superseded to 592828)

$124.99

$

Usually ships in 2-12 days

0

944

Briggs & Stratton 94003

Screw, Hex Flange H (For 3-5/8" Housing Length)
(Superseded to 690323)

$4.49

$

In Stock, Qty 7

0

945

Briggs & Stratton 223159

Bracket-Starter Panel
(Superseded to 692132)

$12.99

$

Usually ships in 2-12 days

0
