190407-0155-XX - Briggs & Stratton Horizontal Engine Fuel Tank,Sno-Gard,Primer Parts Diagram

Horizontal Engine

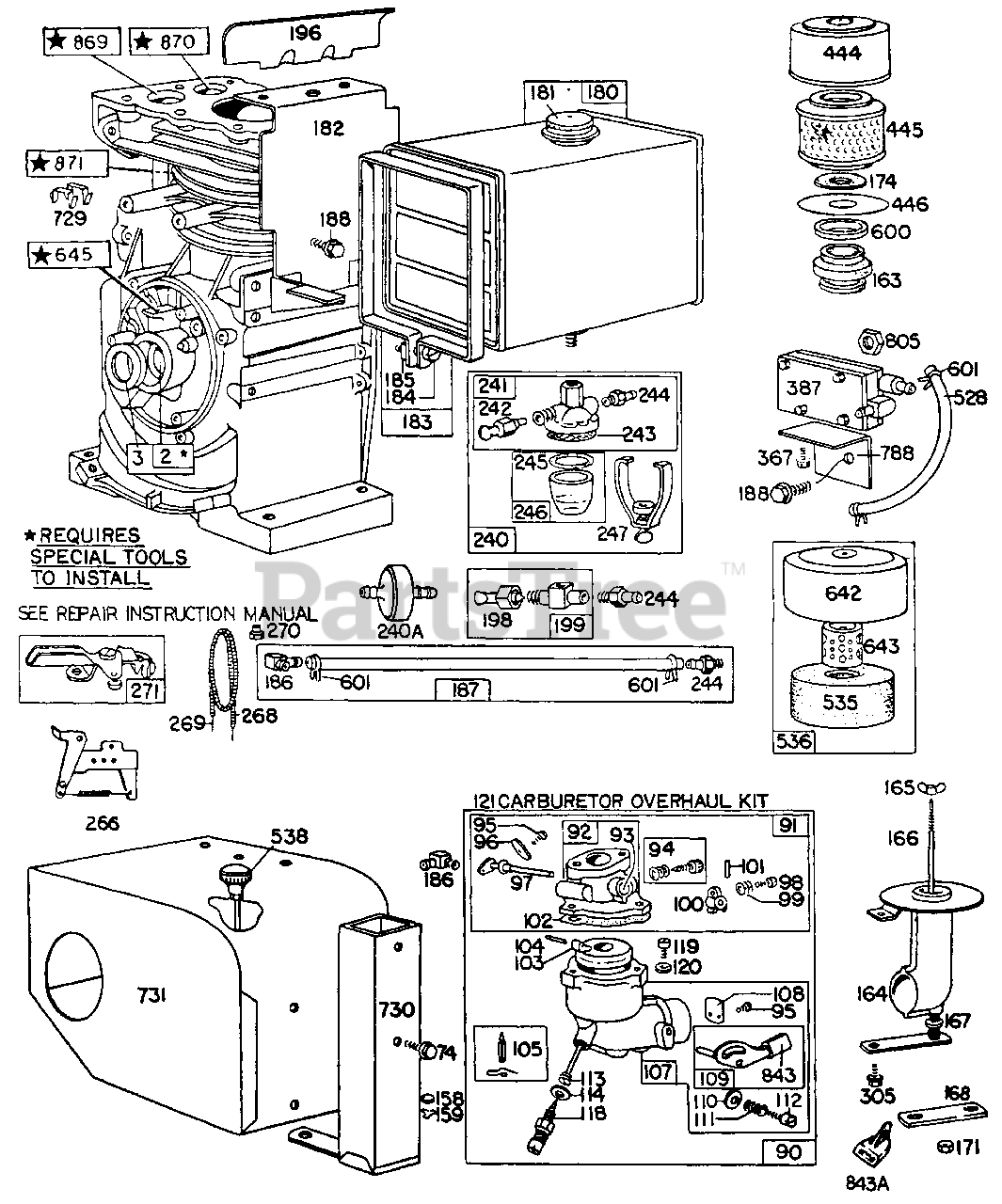

Fuel Tank,Sno-Gard,Primer Parts Diagram

  • Title

2

Briggs & Stratton 295962

Bushing/Seal Kit

Note: Requires special tools for installation.

$28.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 294606

Seal, Oil
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

74

Briggs & Stratton 93014

Screw, Sem
(Superseded to 93014GS)

$14.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Screw, Sem Hex Head
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 390424

Carburetor Assembly

$114.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 390404

Body Assy.-Upper Carburetor

$123.99

$

Usually ships in 2-12 days

0

92

Briggs & Stratton 390503

Body-Upper Carb.
(Superseded to 390404)

$123.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve-Idle Mixture

Note: Included in Carburetor Overhaul Kit-Part No. 295938

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 62940

Valve-Throttle
(Superseded to 223370)

$9.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 298826

Shaft-Throttle

$30.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 61967

Stop-Throttle Lever
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin-Throttle Stop And Governor Shaft
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 27918

Gasket-Carburetor Body

Note: Included in Carburetor Overhaul Kit-Part No. 295938

$4.49

$

In Stock, Qty 14

0

103

Briggs & Stratton 99333

Float-Carburetor

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 230896

Pin-Hinge
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 295938

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 299096

Valve-Fuel Inlet
(Superseded to 394681)

$7.99

$

In Stock, only 1 left!

0

107

Briggs & Stratton 390425

Body Assy.-Lower Carburetor
(Superseded to 299811)

$58.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 62872

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 299452

Shaft And Lever-Choke

$19.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 62899

Washer-Thermostat
(Superseded to 691186)

$4.99

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 26155

Spring-Lever
(Superseded to 691590)

$4.99

$

In Stock, Qty 7

0

112

Briggs & Stratton 23123

Screw-Shoulder
(Superseded to 691587)

$6.49

$

In Stock, only 1 left!

0

113

Briggs & Stratton 390395

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 295938

$

$

Not available

114

Briggs & Stratton 68667

Washer, Fiber (Viton Seat)
(Superseded to 691610)

Note: Included in Carburetor Overhaul Kit-Part No. 295938

$6.49

$

In Stock, only 1 left!

0

118

Briggs & Stratton 99525

Valve-Needle
(Superseded to 99525S)

Note: Included in Carburetor Overhaul Kit-Part No. 295938

$12.99

$

In Stock, only 1 left!

0

119

Briggs & Stratton 91359

Screw-Slotted (10-32 X 3/4")
(Superseded to 690278)

$3.99

$

In Stock, only 1 left!

0

120

Briggs & Stratton 92290

Lockwasher, Zinc Pl
(Superseded to 690286)

$3.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 295938

Carburetor Overhaul Kit

$31.99

$

In Stock, Qty 20+

0

158

Briggs & Stratton 27590

Filter-Carburetor Drin

$6.49

$

In Stock, only 1 left!

0

159

Briggs & Stratton 220521

Retainer-Carb Drain

$

$

Not available

163

Briggs & Stratton 27907

Gasket-Air Cleaner Mtg.

$7.99

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 391628

Pipe Assy.-Air Cleaner
(Superseded to 398596)

$45.99

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 93453

Nut, Wing
(Superseded to 691331)

$5.99

$

In Stock, only 3 left!

0

166

Briggs & Stratton 390325

Strap-Cl Mtg

$28.99

$

Usually ships in 2-12 days

0

167

Briggs & Stratton 65978

Seal, O-Ring (Needle Valve)
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

168

Briggs & Stratton 222150

Strap-Air Cleaner Pipe

$8.99

$

Usually ships in 2-12 days

0

171

Briggs & Stratton 92129

Nut, Hex Mach (1/4-28)
(Superseded to 690284)

$2.99

$

Usually ships in 2-12 days

0

174

Briggs & Stratton 270730

Gasket-Air Cleaner Mtg.

$7.99

$

In Stock, only 1 left!

0

180

Briggs & Stratton 291488

Tank-Fuel (Metal)

$

$

Not available

181

Briggs & Stratton 392301

Cap-Fuel Tank
(Superseded to 791545)

$

$

Not available

182

Briggs & Stratton 221935

Bracket-Fuel Tank

$22.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 291490

Strap, Tank Assy (6 Quart)
(Superseded to 691937)

$33.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 91257

Screw, Machine Fill (1/4-20 X 1-1/2")
(Superseded to 690280)

$3.99

$

Usually ships in 2-12 days

0

185

Briggs & Stratton 90970

Nut, Square (1/4-20)
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 67218

Connector, Fuel
(Superseded to 691609)

$7.49

$

In Stock, Qty 7

0

187

Briggs & Stratton 296004

Line-Fuel (23" Cut To Length)
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

188

Briggs & Stratton 93623

Screw-Flywheel Guard Mtg.

$3.99

$

Usually ships in 2-12 days

0

196

Briggs & Stratton 22907

Support, Tank (8 Quart) (Remote Mount Only)
(Superseded to 691068)

$25.99

$

Usually ships in 2-12 days

0

198

Briggs & Stratton 293934

Valve, Shutoff Assy
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

199

Briggs & Stratton 297563

Outlet, Tank Assy
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

240A

Briggs & Stratton 298090

Filter, Fuel
(Superseded to 298090S)

$

$

Not available

240

Briggs & Stratton 295984

Carburetor (Used With Flexible Fuel Pipe)
(Superseded to 690612)

$

$

Not available

241

Briggs & Stratton 296005

Fuel Filter Cover
(Superseded to 690612)

$

$

Not available

242

Briggs & Stratton 295913

Valve-Shut
(Superseded to 690612)

$

$

Not available

243

Briggs & Stratton 22547

Screen-Fuel Filter
(Superseded to 691962)

$4.99

$

In Stock, Qty 14

0

244

Briggs & Stratton 230318

Connector, Fuel
(Superseded to 691764)

$14.99

$

In Stock, only 4 left!

0

245

Briggs & Stratton 68477

Gasket-Fuel Filter Bowl
(Superseded to 692190)

Note: Included in Gasket Set-Part No. 299577

$4.99

$

In Stock, only 3 left!

0

246

Briggs & Stratton 298683

Bowl-Fuel Filter

$14.99

$

In Stock, only 1 left!

0

247

Briggs & Stratton 99665

Yoke-Fuel Filter
(Superseded to 691700)

$22.99

$

Usually ships in 2-12 days

0

266

Briggs & Stratton 291460

Control-Throttle (Disc Type)

$33.99

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 65616

Casing, Wire (72", Cut To Required Length)
(Superseded to 691025)

Note: If longer casing is required, specify length in inches; if shorter wire is needed, order No. 65616 and cut to required length.

$

$

Not available

269

Briggs & Stratton 222267

Anchor-Spring Return

$8.49

$

Usually ships in 2-12 days

0

269

Briggs & Stratton 222268

Connector-Control Wire

$5.99

$

Usually ships in 2-12 days

0

269

Briggs & Stratton 261137

Spring-Throttle Return
(Superseded to 690457)

$11.99

$

In Stock, Qty 9

0

269

Briggs & Stratton 26633

Wire, Control (78" Cut To Required Length)
(Superseded to 691026)

Note: If longer wire is required, specify length in inches; if shorter wire is needed, Order No. 26633 and cut to required length.

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

367

Briggs & Stratton 93380

Screw-Sem

$1.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 390765

Pump-Impulse
(Superseded to 791885)

$90.99

$

In Stock, only 1 left!

0

444

Briggs & Stratton 390588

Cover-Air Cleaner
(Superseded to 497158)

$21.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 390492

Filter-Air

$31.99

$

In Stock, only 1 left!

0

446

Briggs & Stratton 221969

Support-Air Cleaner

$1.99

$

Usually ships in 2-12 days

0

528

Briggs & Stratton 390674

Impulse Pipe/Clamp
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

535

Briggs & Stratton 270093

Filter-Air

$19.99

$

In Stock, Qty 7

0

536

Briggs & Stratton 390400

Cleaner Assy.-Air
(Superseded to 393858)

$98.99

$

Usually ships in 2-12 days

0

538

Briggs & Stratton 390167

Rod-Governor Control

$11.99

$

Usually ships in 2-12 days

0

600

Briggs & Stratton 270055

Spacer

$

$

Not available

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

642

Briggs & Stratton 221468

Cover-Air Cleaner

$58.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 280001

Spacer-Air Cleaner

$

$

Not available

645

Briggs & Stratton 23513

Bushing-Plunger

Note: (Used only with Breaker Point Ignition)

$2.49

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 221907

Clip-Wire

$3.49

$

Usually ships in 2-12 days

0

730

Briggs & Stratton 299384

Tube-Intake

$21.99

$

Usually ships in 2-12 days

0

731

Briggs & Stratton 299391

Hood-Snow
(Superseded to 492291)

$

$

Not available

731

Briggs & Stratton 391166

Hood-Snow
(Superseded to 399159)

Note: Uses: 222322 Strap-Support 93730 Stud-Strap to Crankcase Cover 93490 Screw-Strap to Hood 93203 Nut-Hex. (1)

$48.99

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 222221

Bracket-Impulse Pump Mounting
(Superseded to 223610)

$22.99

$

Usually ships in 2-12 days

0

805

Briggs & Stratton 231001

Nut-Lock

$1.99

$

Usually ships in 2-12 days

0

843A

Briggs & Stratton 280147

Knob-Control (For Sno-Gard Engines)

$7.49

$

In Stock, only 1 left!

0

843

Briggs & Stratton 280149

Sleeve-Lever
(Superseded to 691895)

$4.99

$

In Stock, only 1 left!

0

869

Briggs & Stratton 211661

Seat-Valve (Intake)
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 211661

Seat-Valve (Intake)
(Superseded to 691844)

Note: For options see Repair Instruction Manual.

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 230655

Guide-Exhaust Valve

$12.99

$

In Stock, only 2 left!

0
