19034S - MTD Rear Chute Deflector (1985) Rear Parts Diagram

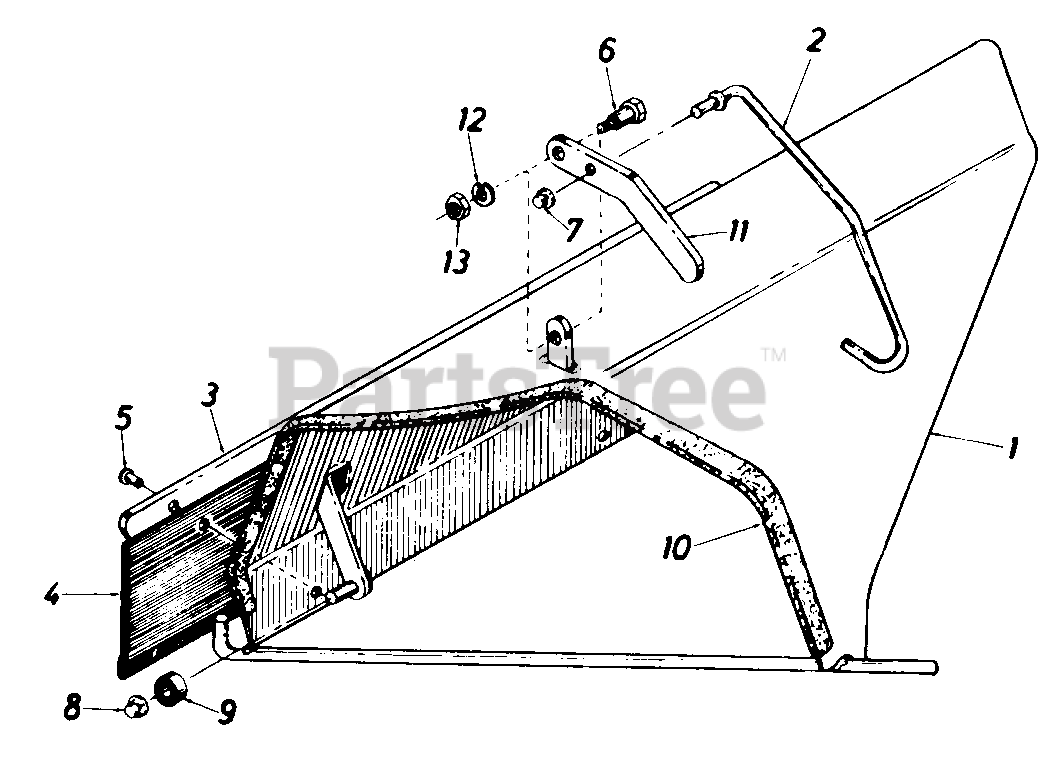

Rear Chute Deflector

Rear Parts Diagram

  • Title
1

MTD 15720

Deflector Ass'y.

$

$

Currently unavailable

2

MTD 747-0447

Hook Ass'y.

$

$

Currently unavailable

3

MTD 14838

Retaining Strip

$

$

Currently unavailable

4

$

$

Not available

5

MTD 728-0156

Rivet

$

$

Currently unavailable

6

MTD 738-0255

Shld. Bolt .375" Dia. x .171 Lg.
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 8

0

7

MTD 726-0106

Palnut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

8

MTD 726-0100

Palnut 3/8" Rod

$4.49

$

In Stock, Qty 20+

0

9

MTD 731-0430

Roller

$

$

Not available

10

MTD 731-0511

Moulding

$3.99

$

Usually ships in 3-6 days

0

11

MTD 15724

Latch Arm

$

$

Not available

12

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

13

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0
