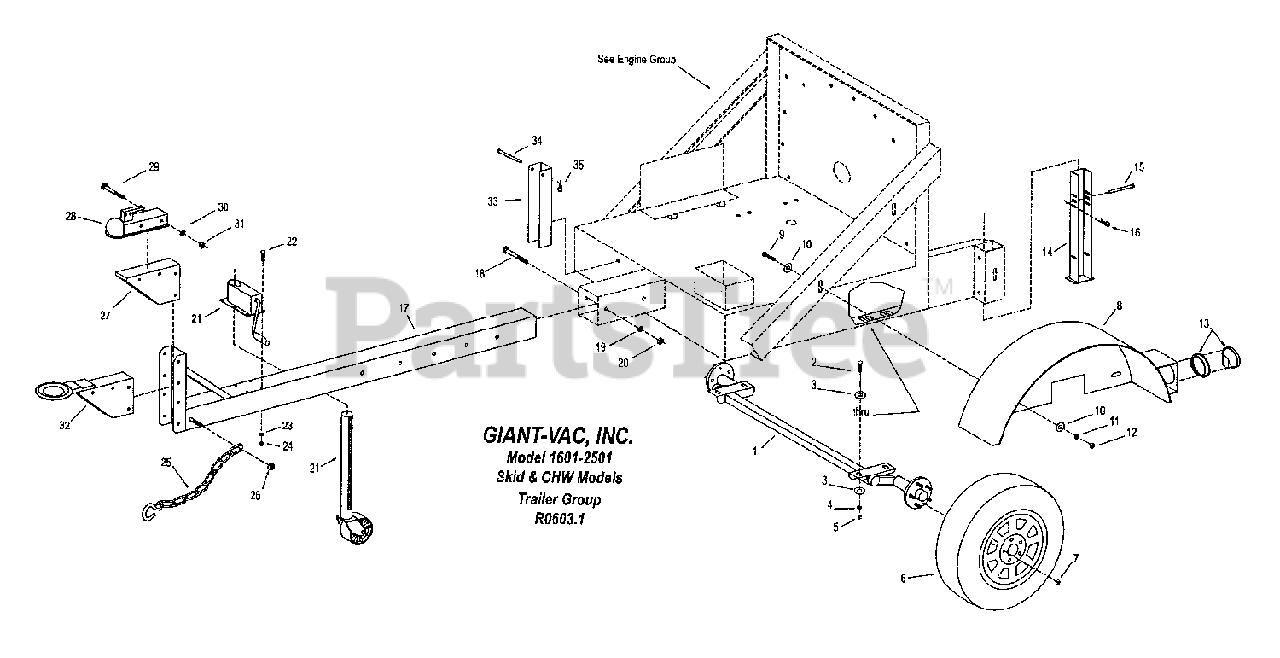

1901CHW (3070600) - Giant-Vac Trailer Mount Truck Loader Vacuum, 20hp Trailer Group (CHW Units Only) Parts Diagram

Trailer Mount Truck Loader Vacuum, 20hp

Trailer Group (CHW Units Only) Parts Diagram

  • Title

1

Giant-Vac 3033296

Torflex Axle

$

$

Not available

2

3032154

1/2-13 x 1-1/4" gr 5 black oxide hex bolt

$

$

Not available

3

3032155

1/2 Flat washer

$

$

Not available

4

Giant-Vac 3031121

1/2 Lockwasher

$

$

Currently unavailable

5

Giant-Vac 3032156

1/2-13 hex end locknut
(Superseded to 703567)

$4.49

$

In Stock, only 2 left!

0

6

Giant-Vac 3033126

F78 x 15 tire and wheel assy

$

$

Not available

7

Giant-Vac 3031152

1/2-20 Lug nut

$

$

Currently unavailable

8

Giant-Vac 3033303

Fender -Left side

$

$

Not available

8

Giant-Vac 3033302

Fender -Right side (not shown)

$

$

Currently unavailable

9

Giant-Vac 3031033

3/8-16 x 1" Hex bolt
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

10

Giant-Vac 3031034

3/8 Flat washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Giant-Vac 3031008

3/8 Lock washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

12

Giant-Vac 3031009

3/8-16 Hex nut
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

13

Giant-Vac 3031639

Tail lamp (w/rubber mounting ring)

$

$

Currently unavailable

--

Giant-Vac 3031640

Tail lamp wiring harness

$

$

Currently unavailable

--

Giant-Vac 3031644

Wiring harness body clip -large

$

$

Not available

--

Giant-Vac 3031823

Wiring harness body clip -small

$

$

Not available

--

Giant-Vac 3032090

#10 x 1/2" Self-tapping screw (fastens harness grounds)

$

$

Currently unavailable

14

3041026

Support leg

$

$

Not available

15

Giant-Vac 3031125

3/8x4" Clevis pin

$

$

Not available

16

Giant-Vac 3031126

Bridge Pin

$

$

Not available

17

Giant-Vac 3033043

Draw Bar

$

$

Not available

18

3031017

5/8"x4.50" Hex Bolt

$

$

Not available

19

Giant-Vac 3031326

Washer, Split Lock, ZP 5/16 Lock washer

$

$

Not available

20

3031199

5/8" Lock Nut

$

$

Not available

21

Giant-Vac 3033040

Jack, Trailer Support, 1 Wheel 600# Rack & Pinion

$

$

Currently unavailable

22

3031037

3/8"x5" Hex Bolt

$

$

Not available

23

Giant-Vac 3031108

Washer, Split Lock, ZP .375 nom

$

$

Currently unavailable

24

Giant-Vac 3031126

Bridge pin

$

$

Not available

25

Giant-Vac 3031641

Chain, w/ 1 S-Hook, ZP .313x2.00x26.00

$

$

Currently unavailable

26

3031047

.5x5 Hex Bolt

$

$

Not available

27

Giant-Vac 3038014

Ball Hitch Mount, Black

$

$

Currently unavailable

28

Giant-Vac 3038011

Ball Hitch

Note: 2501

$

$

Not available

29

3031039

1/2"x3.500 Hex Bolt

Note: 2501

$

$

Not available

30

3031040

1/2" Lock Washer

Note: 2501

$

$

Not available

31

3031042

1/2"Lock Nut

Note: 2501

$

$

Not available

32

Giant-Vac 3038012

(Optional) Pintle Ring

$

$

Not available

33

3034114

Nozzle Holder

Note: 2501

$

$

Not available

33a

Giant-Vac 3031033

Bolt, Hex Hd, GR5ZP .375-16x1. (Not shown at #33)
(Superseded to 703407)

Note: 2501

$11.99

$

In Stock, Qty 7

0

33b

Giant-Vac 3031008

Washer, Split Lock, ZP .375 (Not shown at #33)
(Superseded to 703454)

Note: 2501

$3.49

$

In Stock, Qty 17

0

33c

Giant-Vac 3031009

Nut, Hex Finish, ZP .375-16UNC
(Superseded to 7091302SM)

Note: 2501

$4.49

$

Usually ships in 2-12 days

0

34

Giant-Vac 3031125

Pin, Clevis, ZP. .375x4.00

Note: 2501

$

$

Not available

35

Giant-Vac 3031126

Pin, Hair Cotter, (.0920) ZP, .375-.438 Shaft x 1.875

Note: 2501

$

$

Not available
