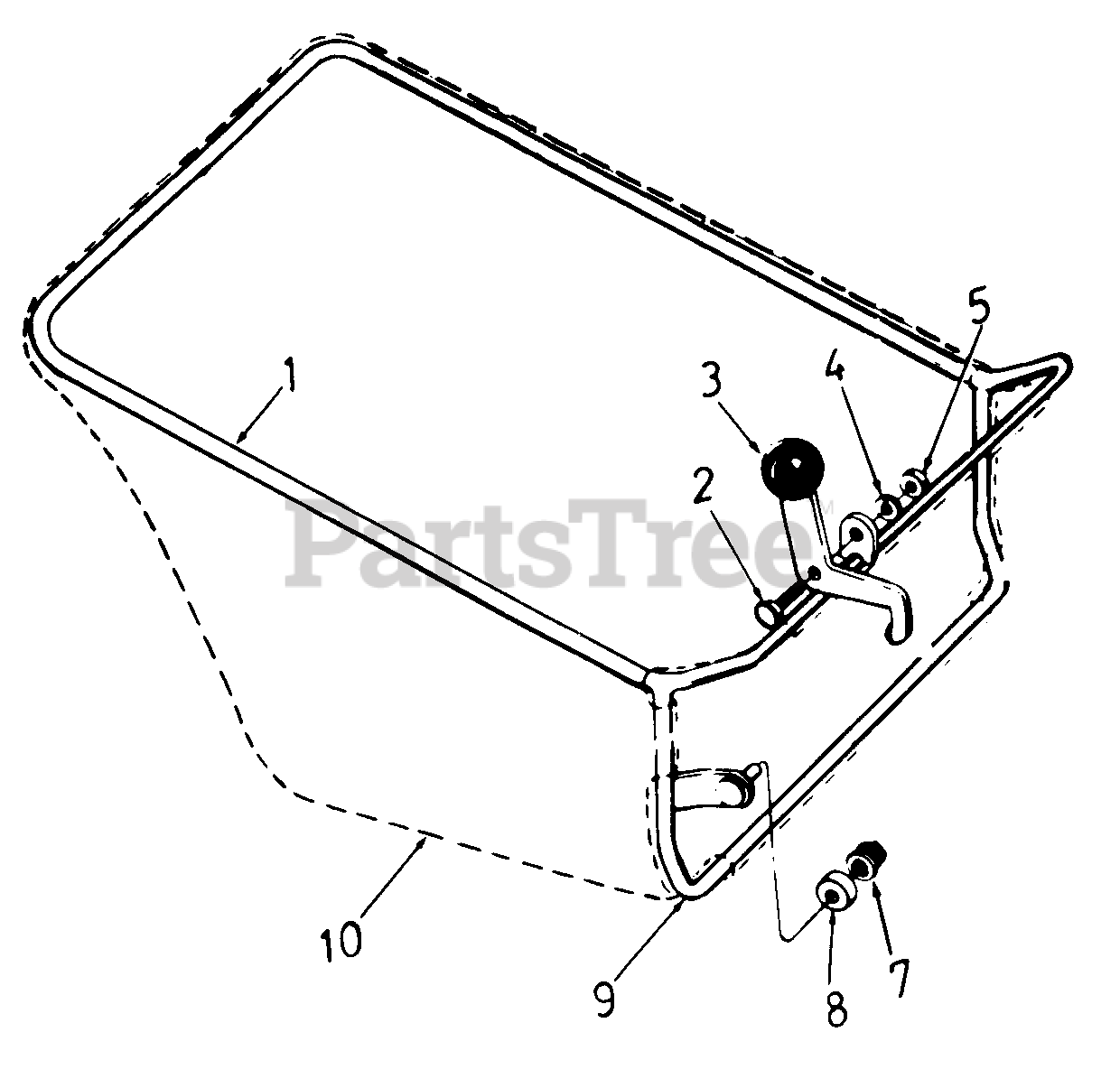

19019C - MTD Grassbag Assembly (1986) Grass Parts Diagram

Grassbag Assembly

Grass Parts Diagram

  • Title
1

MTD 749-0278

Upper Frame

Note: (028)

$

$

Not available

2

MTD 749-0512

Upper Frame

Note: (019)

$

$

Not available

3

MTD 738-0140

Shld. Scr. .437 Dia. x .180

$5.99

$

In Stock, Qty 15

0

4

MTD 13435

Cam Lever Grip Ass'y.

$

$

Not available

5

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

MTD 726-0100

Push Cap

$4.49

$

In Stock, Qty 20+

0

8

MTD 731-0430

Plastic Roller

$

$

Not available

9

MTD 13924

Lower Frame Ass'y.

$

$

Not available

10

MTD 764-0171

Grass Bag
(Superseded to 964-0171B)

Note: (006)

$

$

Not available

MTD 764-0191

Grass Bag

Note: (019)

$

$

Not available
