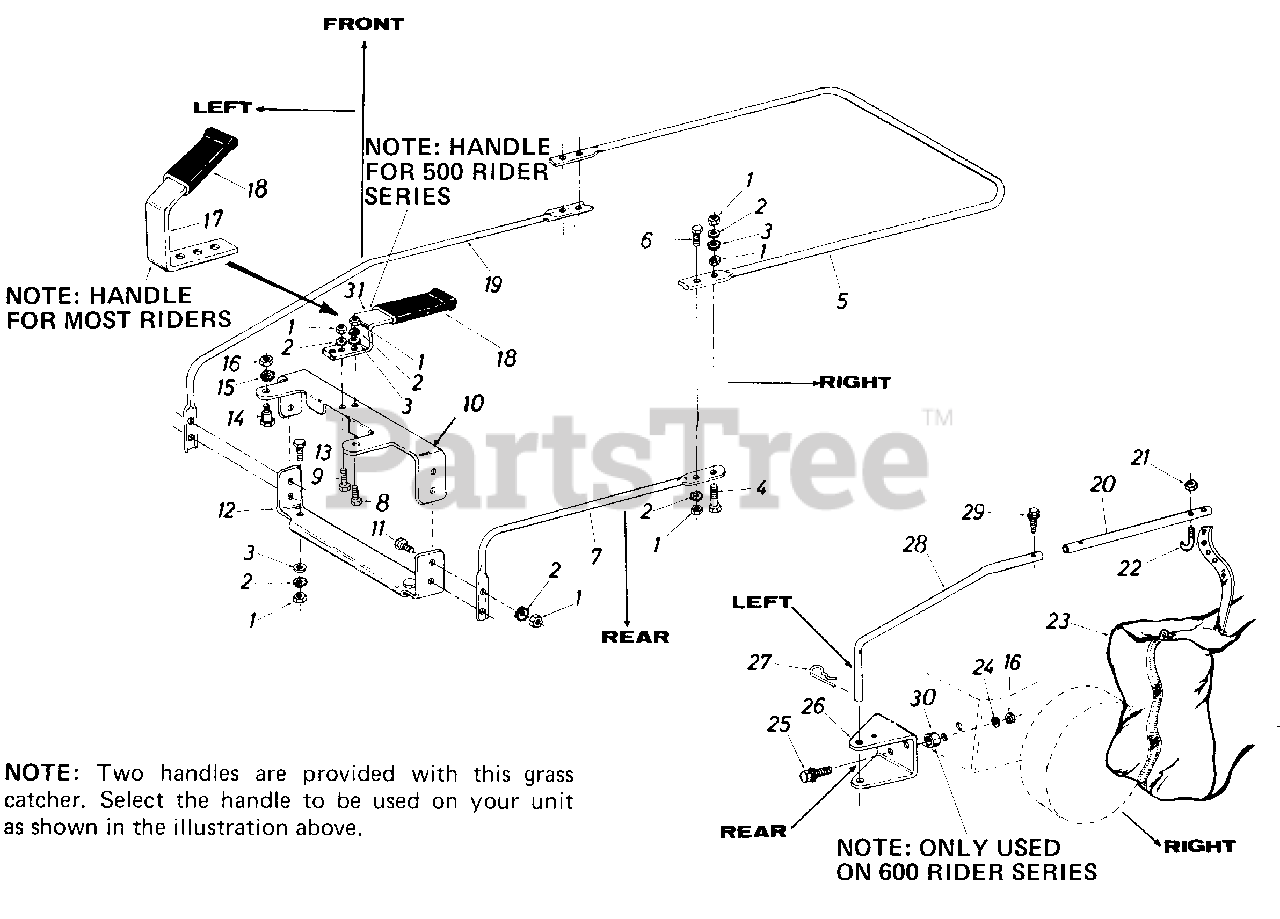

19015S - MTD Grassbag Assembly (1985) Grass Parts Diagram

Grassbag Assembly

Grass Parts Diagram

  • Title
1

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

2

MTD 736-0222

Ext. L-Wash. 1/4" Scr.*

$5.99

$

In Stock, only 3 left!

0

3

MTD 736-0142

Fl-Wash. .281 I.D. x .50 O.D.

$4.99

$

In Stock, only 4 left!

0

4

MTD 710-0606

Hex Scr. 1/4-20 x 1.50" Lg.*

$5.49

$

In Stock, Qty 9

0

5

MTD 11706

Upper Frame Half

$

$

Not available

6

MTD 710-0597

Hex Scr. 1/4-20 x 1.00" Lg.*

$3.99

$

In Stock, Qty 14

0

7

MTD 11705

Lower Frame Tubing

$

$

Currently unavailable

8

MTD 710-0258

Hex Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0252

Hex Scr. 1/4-20 x .75" Lg.*
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

10

MTD 11703

Upper Opening Support

$

$

Not available

11

MTD 710-0597

Hex Scr. 1/4-20 x 1.0" Lg.*

$3.99

$

In Stock, Qty 14

0

12

MTD 11702

Lower Opening Support

$

$

Not available

13

MTD 710-0289

Hex Scr. 1/4-20 x .50" Lg.*
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

14

MTD 738-0141

Shld. Scr. .437 Dia. x .350
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

15

MTD 736-0607

Ext. L-Wash. 5/16" Scr.*

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 11707

Handle

Variations

MTD 11707-0637

Handle - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 720-0142

Grip-Black

$3.99

$

Usually ships in 3-6 days

0

19

MTD 11704

Lower Frame Arm

$

$

Not available

20

MTD 11710

Upper Holding Arm

Variations

MTD 11710-0637

No Longer Available ARM-UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

22

$

$

Not available

23

MTD 764-0121

Grass Catcher Bag

$

$

Not available

24

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

MTD 710-0198

Hex Sems Scr. 5/16-18 x .75" Lg.*
(Superseded to 910-0198)

$

$

Not available

MTD 710-0442

Hex Sems Bolt 5/16-18 x 1.50" Lg.*
(Superseded to 710-0805A)

$4.49

$

In Stock, only 2 left!

0

26

MTD 11708

Hitch Bracket

$

$

Not available

27

MTD 714-0117

Internal Cotter Pin 5/8" Dia.

$4.49

$

In Stock, Qty 6

0

28

MTD 749-0681

Lower Holding Arm

$

$

Not available

29

MTD 710-0599

Hex Wash. Hd. Self-Tap .50" Lg.

$4.49

$

In Stock, Qty 20+

0

30

MTD 22550

Spacer

$

$

Not available

31

MTD 15498

Handle

$

$

Not available
