19014S - MTD Grassbag Assembly (1985) Grass Parts Diagram

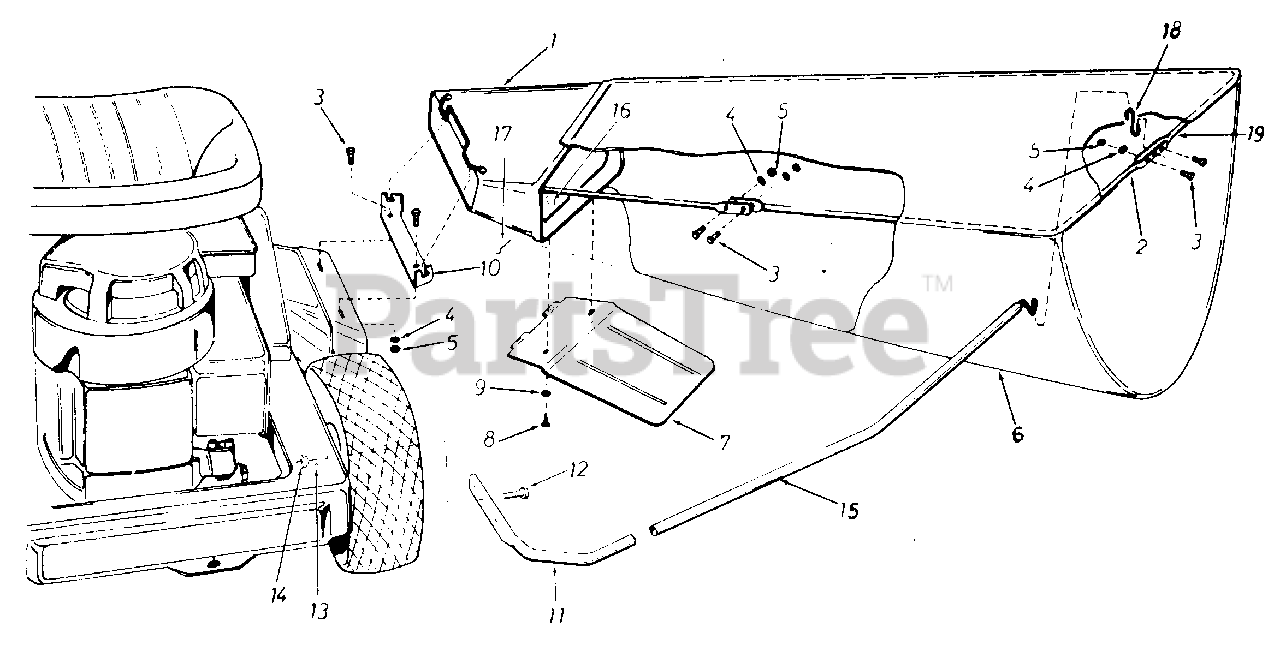

Grassbag Assembly

Grass Parts Diagram

  • Title

1

MTD 5153-027

Shroud Assy.

$

$

Currently unavailable

2

MTD 4683-068

Rear Supporting Rd.-L.H.

$

$

Currently unavailable

3

MTD 710-0252

Hex Scr. 1/4-20 x .75" Lg.*
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

4

MTD 736-0329

L-Wash. 1/4" Scr.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

5

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

6

MTD 764-0157

Bag

$

$

Currently unavailable

7

MTD 3606-091

Skid Plate

$

$

Currently unavailable

8

MTD 710-0227

Hex Scr. Wash. HD. #10 x .50" lg.*

$4.49

$

In Stock, Qty 20+

0

9

MTD 736-0722

L-Wash. #10 Scr.*

$6.99

$

Usually ships in 3-6 days

0

10

MTD 2609-307

Attachment Bracket

$

$

Not available

11

MTD 15070

Lower Support Tube

$

$

Currently unavailable

12

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg.*

$4.49

$

In Stock, Qty 15

0

13

MTD 736-0169

L-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

15

MTD 3170-007

Upper Support Tube Assy.

$

$

Not available

16

MTD 712-0121

Sq Nut #10-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-0473

Mach. Scr. Rd. Hd. Slot #10-24 x .50" Lg.*

$4.49

$

In Stock, only 2 left!

0

18

MTD 1669-010

Hook-Bag Support

$

$

Currently unavailable

19

MTD 4683-066

Rear Supporting Rod. R.H.

$

$

Currently unavailable
