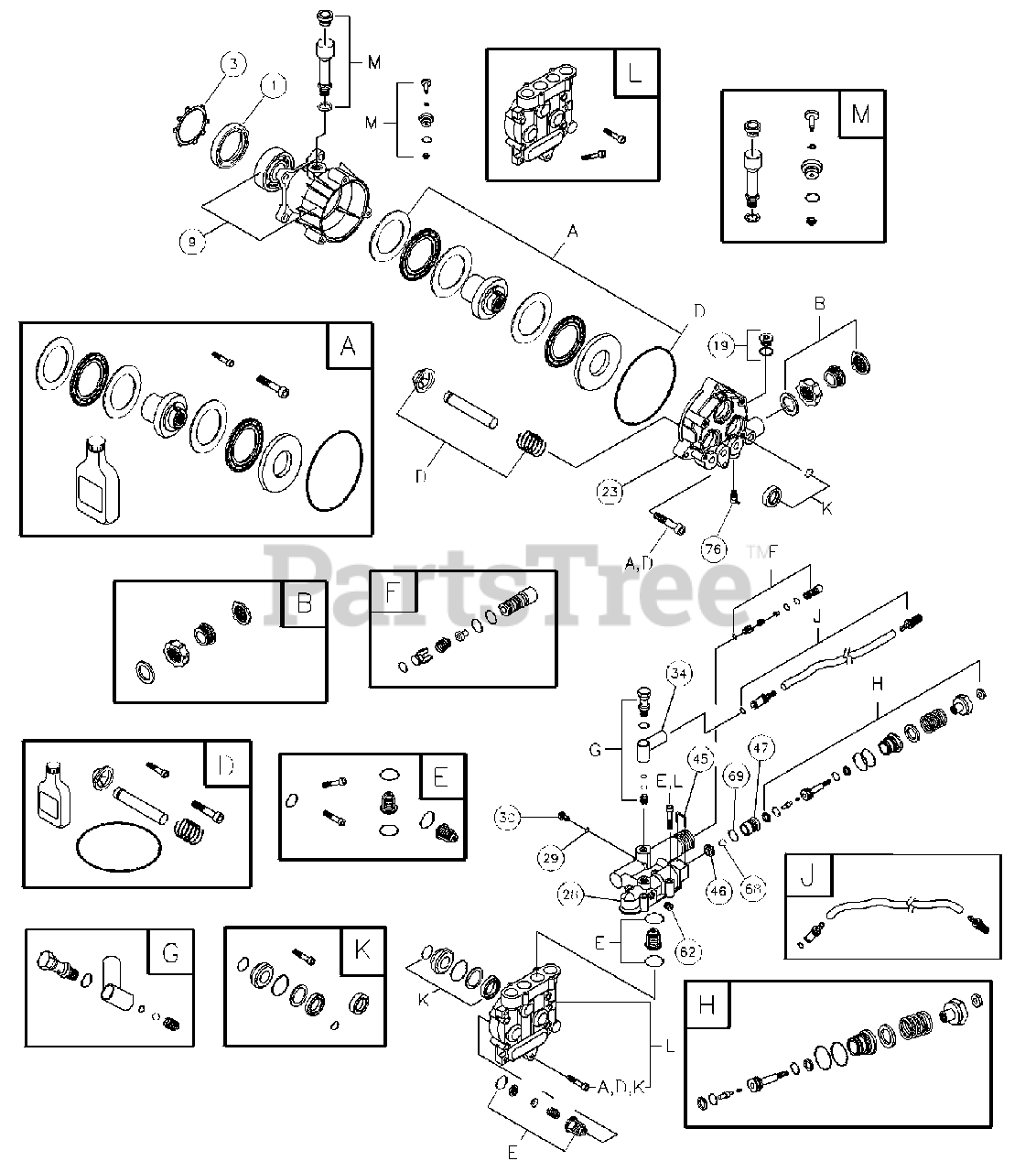

1901-0 - Craftsman 2,550 PSI Pressure Washer Pump Parts Diagram

2,550 PSI Pressure Washer

Pump Parts Diagram

  • Title

1

Briggs & Stratton 190568GS

SEAL

$59.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 190569GS

RETAINER RING

$4.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 190671GS

ENGINE ADAPTER & BEARING

$176.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 190571GS

CAP, Oil

$

$

Not available

23

Briggs & Stratton 190573GS

PISTON HOUSING

$

$

Not available

28

Briggs & Stratton 190673GS

MANIFOLD

$

$

Not available

29

Briggs & Stratton 190575GS

O-RING
(Superseded to 193971GS)

$7.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 190576GS

SCREW, Venturi
(Superseded to 193971GS)

$7.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 190577GS

CONNECTION, Chemical Inlet

$6.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 190578GS

PIN

$

$

Not available

46

Briggs & Stratton 190579GS

VALVE, Seat Plate Brass
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

47

Briggs & Stratton 190580GS

VALVE, Seat Stainless
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

62

Briggs & Stratton 190581GS

CAP

$7.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 190582GS

BALL, Stainless Steal
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

69

Briggs & Stratton 190584GS

O-RING
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

76

Briggs & Stratton 21783GS

THERMAL RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

77

Briggs & Stratton 190585GS

OIL BOTTLE

$15.99

$

In Stock, only 3 left!

0

A

Briggs & Stratton 190672GS

KIT, WOBBLE PLATE BEARING

Note: Service kit and includes all parts shown within the box.

$166.99

$

Usually ships in 2-12 days

0

B

Briggs & Stratton 190670GS

KIT, WATER INLET

Note: Service kit and includes all parts shown within the box.

$40.99

$

Usually ships in 2-12 days

0

D

Briggs & Stratton 190590GS

KIT, PISTON

Note: Service kit and includes all parts shown within the box.

$93.99

$

Usually ships in 2-12 days

0

E

Briggs & Stratton 190591GS

KIT, CHECK VALVES

Note: Service kit and includes all parts shown within the box.

$40.99

$

In Stock, Qty 5

0

F

Briggs & Stratton 190592GS

KIT, INLET CHECK

Note: Service kit and includes all parts shown within the box.

$20.99

$

In Stock, Qty 6

0

G

Briggs & Stratton 190593GS

KIT, CHEMICAL INJECTION

Note: Service kit and includes all parts shown within the box.

$

$

Not available

H

Briggs & Stratton 190594GS

KIT, UNLOADER

Note: Service kit and includes all parts shown within the box.

$

$

Not available

J

Briggs & Stratton 189971GS

KIT, CHEMICAL HOSE

Note: Service kit and includes all parts shown within the box.

$

$

Not available

K

Briggs & Stratton 190595GS

KIT, SEAL SET

Note: Service kit and includes all parts shown within the box.

$96.99

$

Usually ships in 2-12 days

0

L

Briggs & Stratton 190596GS

KIT, HEAD BRASS

Note: Service kit and includes all parts shown within the box.

$163.99

$

Usually ships in 2-12 days

0

M

Briggs & Stratton 190669GS

KIT, BREATHER TUBE

Note: Service kit and includes all parts shown within the box.

$47.99

$

Usually ships in 2-12 days

0
