19003S - MTD Grassbag Assembly (1985) Grass Parts Diagram

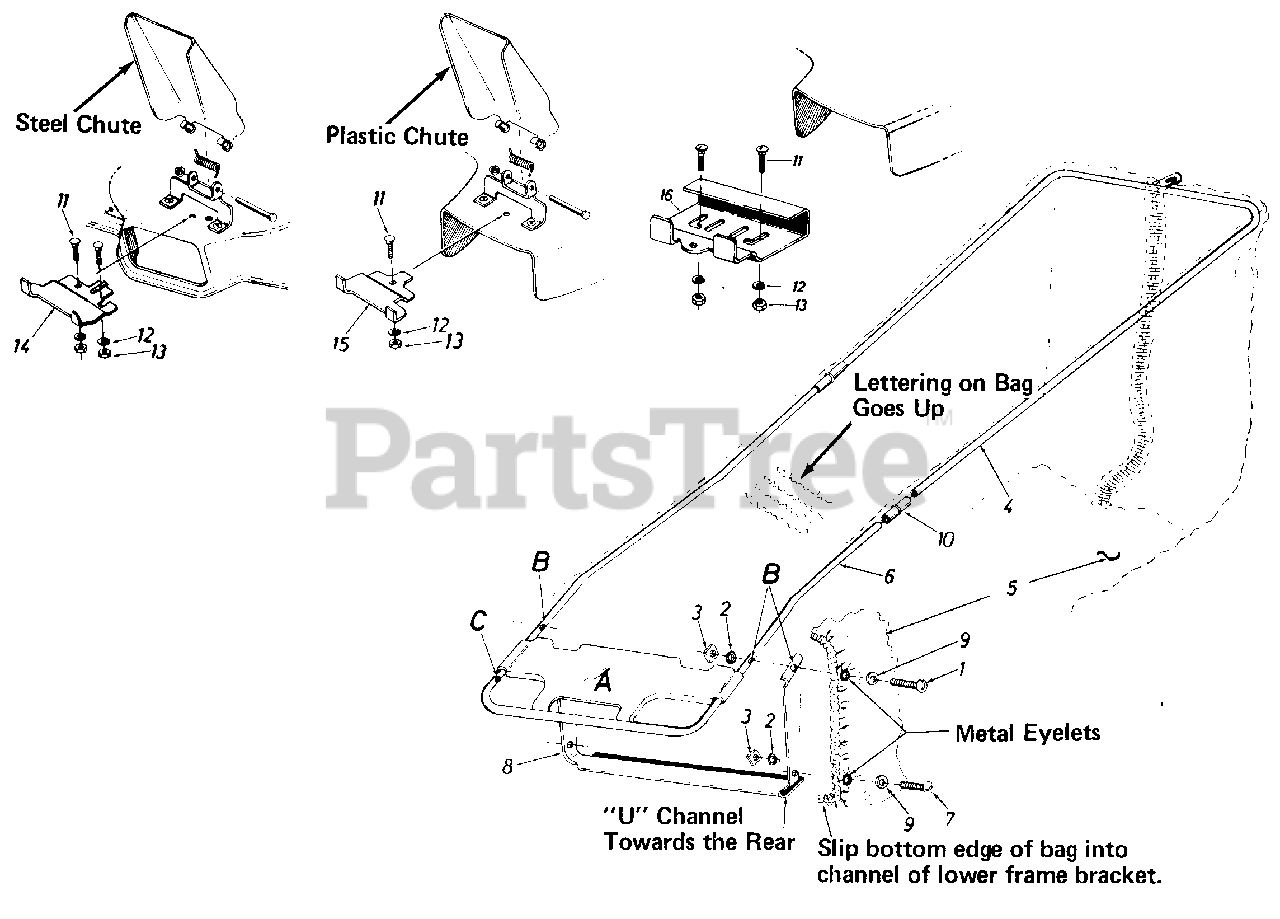

Grassbag Assembly

Grass Parts Diagram

  • Title

1

MTD 710-0467

Truss Mach. Scr. #10-24 x 1.00" Lg.*

$

$

Not available

2

MTD 736-0147

Ext. L-Wash. #10 Scr.*
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

3

MTD 712-0425

Sq. Nut #10-24 Thd.*
(Superseded to 912-0121)

$4.49

$

In Stock, Qty 20+

0

4

MTD 749-0364

Frame Upper Half

$

$

Currently unavailable

5

MTD 764-0176

Grass Catcher Bag
(Superseded to 764-0176B)

$

$

Not available

6

MTD 14061

Frame Lower Half

$

$

Currently unavailable

7

MTD 710-0425

Truss Mach. Scr. #10-24 x .62" Lg.*

$4.99

$

Usually ships in 3-6 days

0

8

MTD 08834

Lower Frame Bracket

$

$

Currently unavailable

9

MTD 736-0931

Fl.-Wash. .203 I.D. x .41 O.D.

$4.99

$

In Stock, only 1 left!

0

10

MTD 750-0473

Tubing Connector

$

$

Not available

11

MTD 710-0167

Carriage Bolt
(Superseded to 710-05177)

Note: (004 & 043)

$4.99

$

In Stock, Qty 20+

0

12

MTD 736-0329

Lock Washer 1/4" I.D.*
(Superseded to 936-0329)

Note: (004 & 043)

$4.49

$

In Stock, Qty 11

0

13

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

Note: (004 & 043)

$4.99

$

In Stock, only 1 left!

0

14

MTD 14587

Adapter Plate

Note: (004 & 043)

$

$

Currently unavailable

15

MTD 14343

Adapter Plate

Note: (004)

$

$

Currently unavailable

16

MTD 08832

Adapter Plate

Note: (004)

$

$

Currently unavailable
