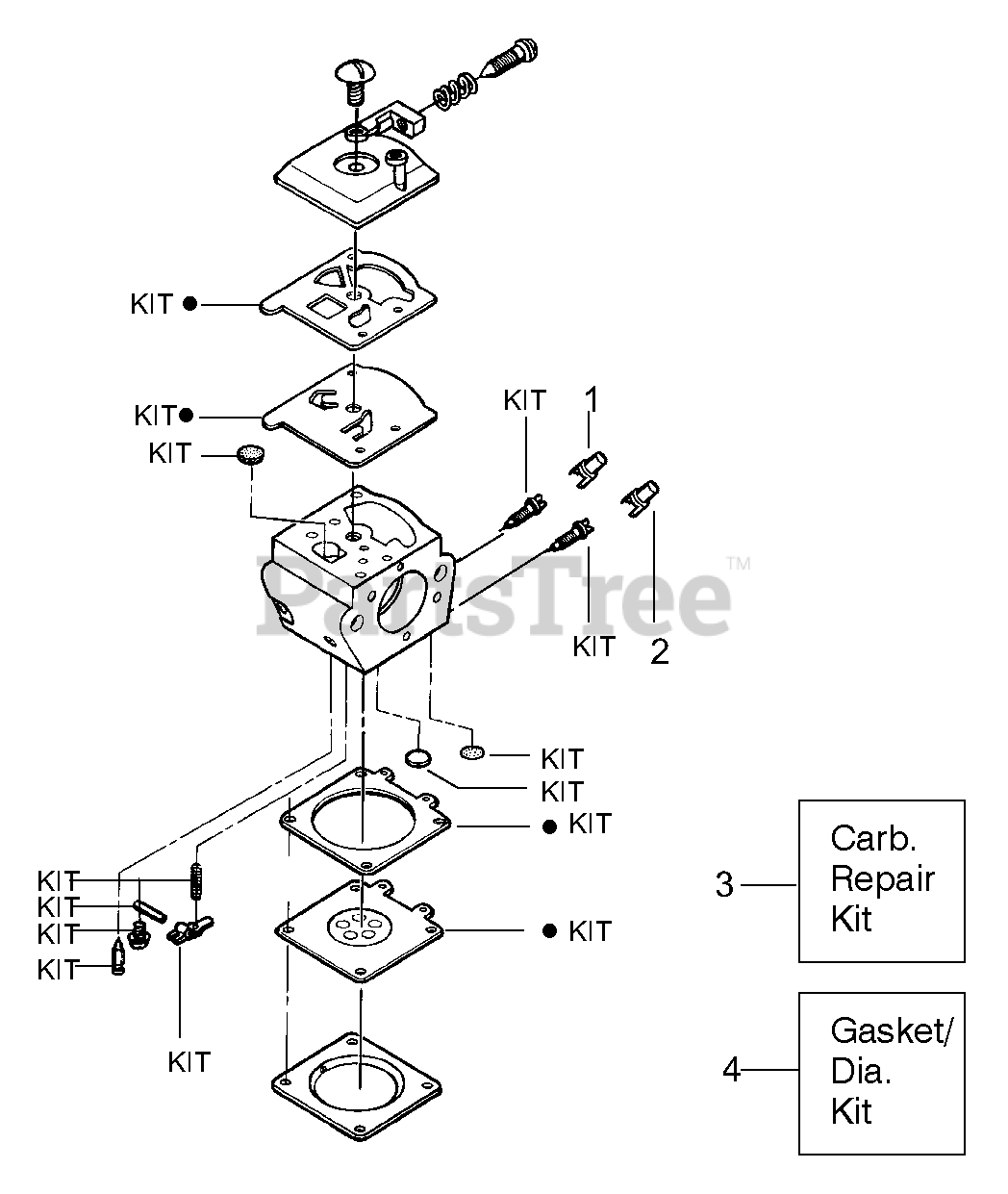

1900 - Poulan Patriot Chainsaw Carburetor Assembly - Zama C1Q-W8 Parts Diagram

Poulan 530038479

Poulan 530038478

Poulan 530071352

Note: (KIT = Indicates Contents); If replacing the complete Zama Carburetor, it is not serviceable; you will need to order P/N 530069703 Walbro Carburetor Assy. The contents of the P/N 530035270 Gasket/Diaphragm kit are included in the P/N 530071352 Carb. Repair kit.

Poulan 530035270

Note: (DOT = Indicates Contents); If replacing the complete Zama Carburetor, it is not serviceable; you will need to order P/N 530069703 Walbro Carburetor Assy. The contents of the P/N 530035270 Gasket/Diaphragm kit are included in the P/N 530071352 Carb. Repair kit.

Poulan 530069703
