1900 EM - Green Machine Edger Carburetor Assembly Parts Diagram

Edger

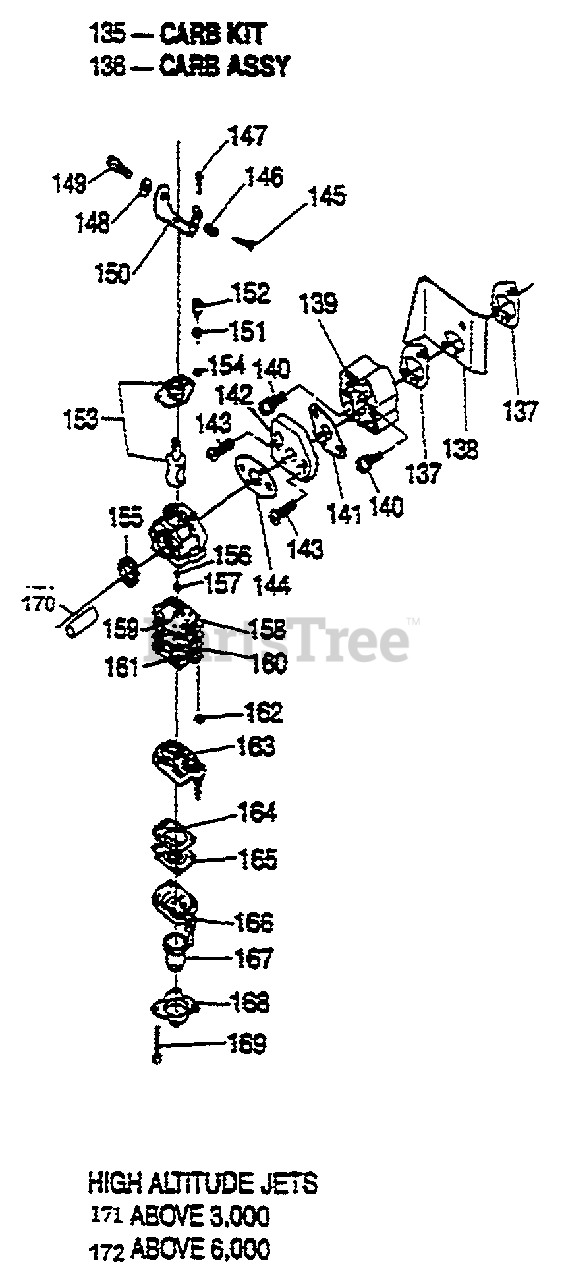

Carburetor Assembly Parts Diagram

  • Title
135

Homelite GM287202

CARB. KIT

$

$

Not available

136

Homelite GM287201

CARB ASSY

$

$

Not available

137

Homelite GM287402

GASKET, INSULATOR

$

$

Currently unavailable

138

$

$

Currently unavailable

139

Homelite GM285201

INSULATOR

$

$

Currently unavailable

140

Homelite GM002804

SCREW & WASHER

$

$

Currently unavailable

141

Homelite GM287401

GASKET, CARB

$

$

Not available

142

$36.99

$

Usually ships in 3-7 days

0

143

$

$

Not available

144

Homelite GM287410

GASKET, CARB.

$

$

Not available

145

Homelite GM247213

SCREW, IDLE

$

$

Not available

146

Homelite GM247214

SPRING, IDLE

$4.49

$

Usually ships in 3-7 days

0

147

$

$

Not available

148

Homelite GM247207

NUT, CABLE ADJ.
(Superseded to PS00544)

$

$

Not available

149

Homelite GM247206

ADJUSTER CABLE

$

$

Currently unavailable

150

$11.99

$

Usually ships in 3-7 days

0

$

$

Not available

152

$10.99

$

Usually ships in 3-7 days

0

153

Homelite GM307218

VALVE, THROTTLE

$85.99

$

Usually ships in 3-7 days

0

154

Homelite GM247202

RING, SWIVEL

$

$

Currently unavailable

155

$

$

Currently unavailable

$9.49

$

Usually ships in 3-7 days

0

157

$

$

Currently unavailable

158

Homelite GM307206

GASKET, PUMP

$

$

Not available

159

Homelite GM307207

DIAPHRAGM

$

$

Not available

160

$11.99

$

Usually ships in 3-7 days

0

161

$

$

Not available

162

Homelite GM287204

SCREEN, INLET

$

$

Not available

163

Homelite GM287205

BODY ASSY.
(Superseded to GM287201)

$

$

Not available

164

Homelite GM247405

GASKET, DIAPH.
(Superseded to GM287202)

$

$

Not available

165

Homelite GM170121

DIAPHRAGM

$

$

Currently unavailable

166

Homelite GM247222

BODY, PUMP

$

$

Currently unavailable

167

Homelite GM247223

PUMP PRIMER
(Superseded to UP04802)

$8.49

$

In Stock, only 4 left!

0

168

Homelite GM247224

COVER, PRIMER

$

$

Currently unavailable

169

Homelite GM167212

SCREW, COVER

$4.99

$

Usually ships in 3-7 days

0

170

$

$

Currently unavailable

171

Homelite GM257208

JET HIGH ALT.

$

$

Not available

172

Homelite GM257207

JET HIGH ALT.

$

$

Currently unavailable
