1900 E (UT-26100-A) - Green Machine Edger Fuel Tank Parts Diagram

Edger

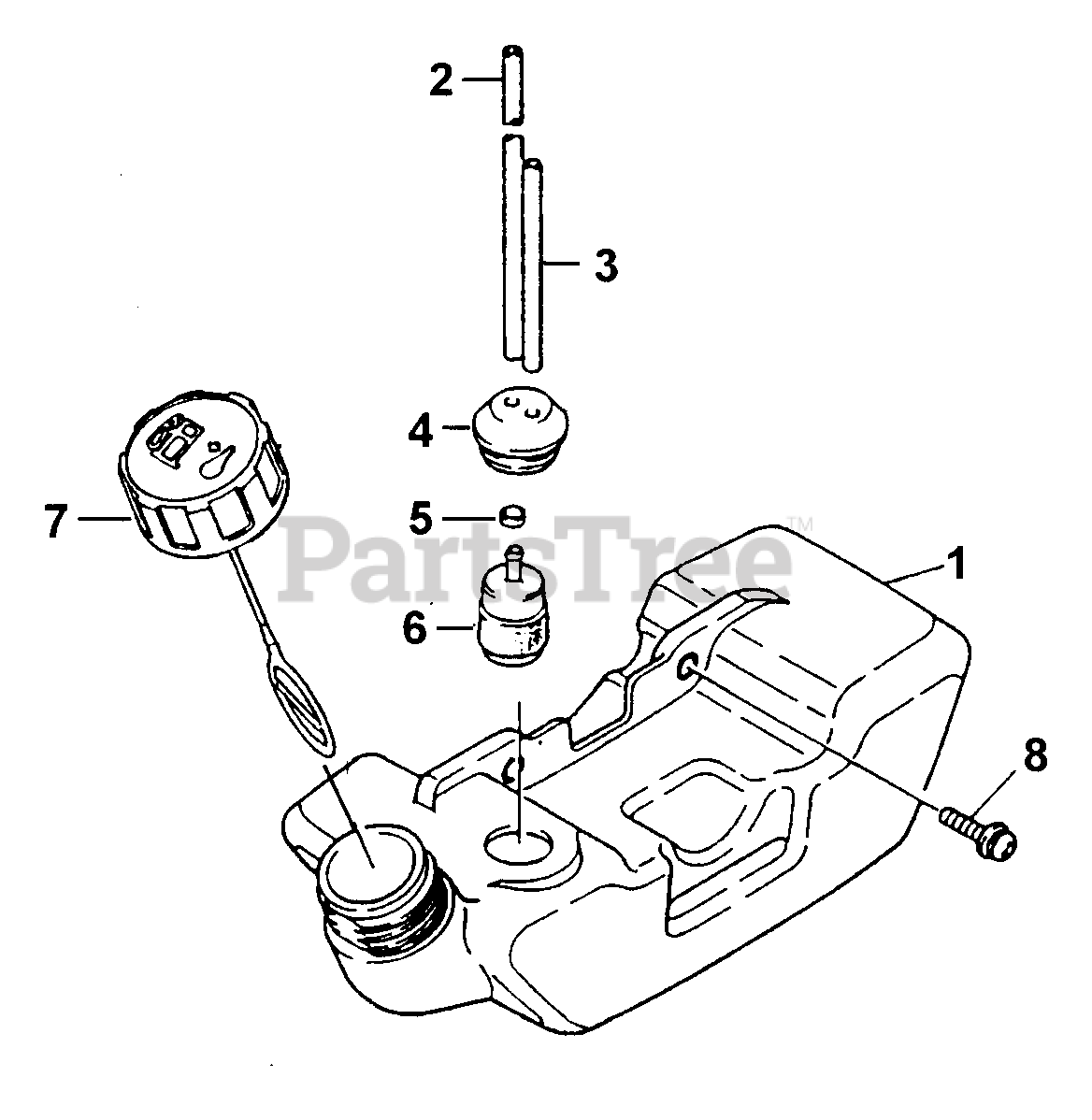

Fuel Tank Parts Diagram

  • Title
1

Homelite A07782

FUEL TANK ASSY

Note: (23cc)

$

$

Not available

2

Homelite 07790

TUBE, FUEL

$

$

Not available

3

Homelite 07791

TUBE, FUEL

$

$

Not available

$

$

Not available

5

Homelite 07792

BUSHING

$

$

Not available

6

Homelite 07793

FILTER, FUEL

$

$

Not available

7

Homelite 07784

TANK CAP

$

$

Not available

8

Homelite 07794

SCREW & WASHER

Note: Torque Specifications: 35-45 In/Lbs; 4-5 Nm

$

$

Not available
