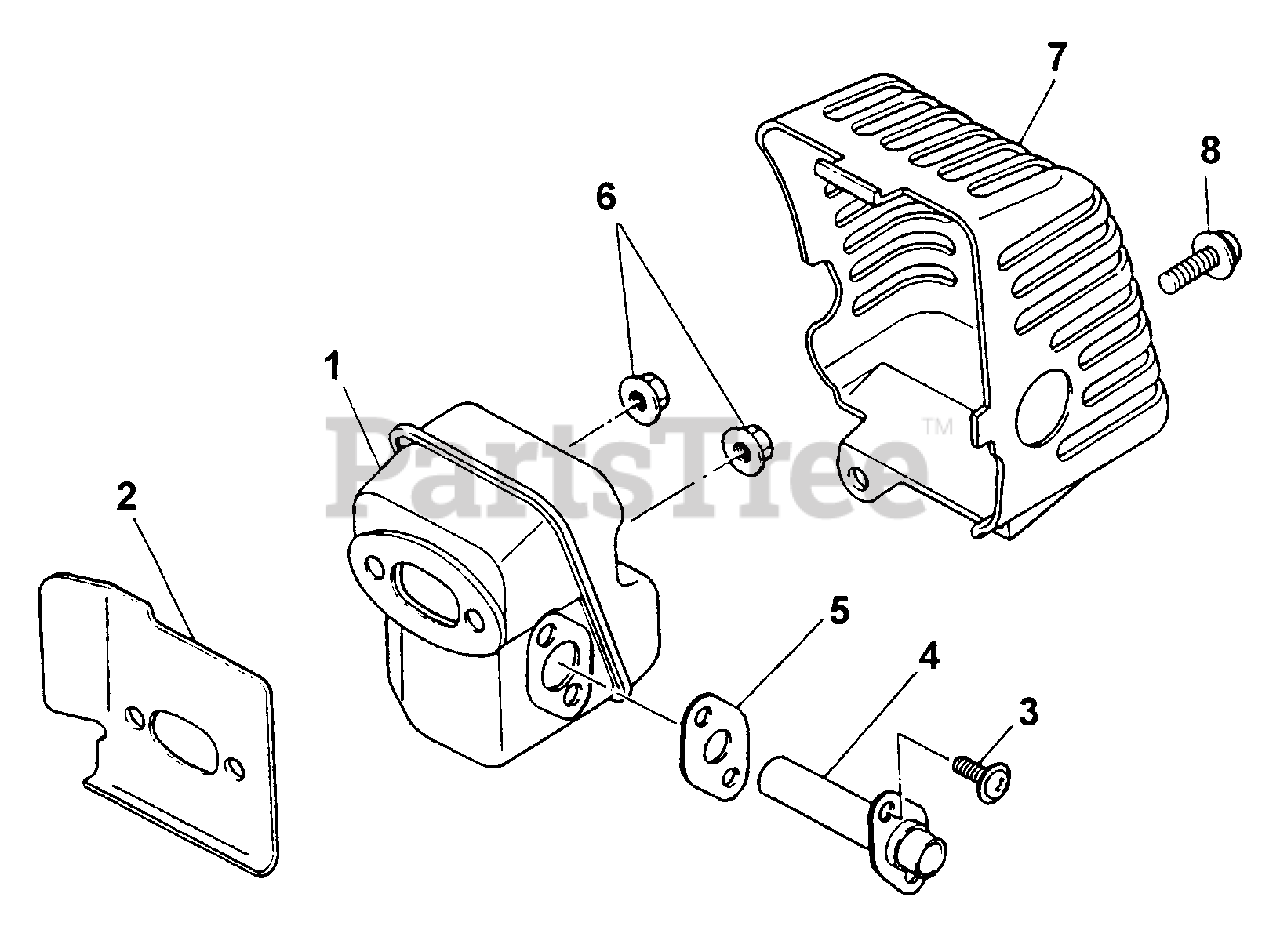

1900 E (UT-26100-A) - Green Machine Edger Exhaust System Parts Diagram

Edger

Exhaust System Parts Diagram

  • Title

1

Homelite A07894

MUFFLER ASSY

$

$

Not available

2

Homelite 07755

GASKET, MUFFLER

$

$

Not available

3

Homelite 07761

SCREW & WASHER

Note: Torque Specifications: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

4

Homelite 07758

TAIL PIPE

$

$

Not available

5

Homelite PS07759

GASKET, TAIL PIPE

$

$

Not available

6

Homelite GM050069

NUT, FLANGE

Note: Torque Specifications: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

7

Homelite PS07762

COVER, MUFFLER

$

$

Not available

8

Homelite 07763

SCREW & WASHER

Note: Torque Specifications: 35-45 In/Lbs; 4-5 Nm

$

$

Not available
