1900 E (UT-26100-A) - Green Machine Edger Driveshaft And Handle Parts Diagram

Edger

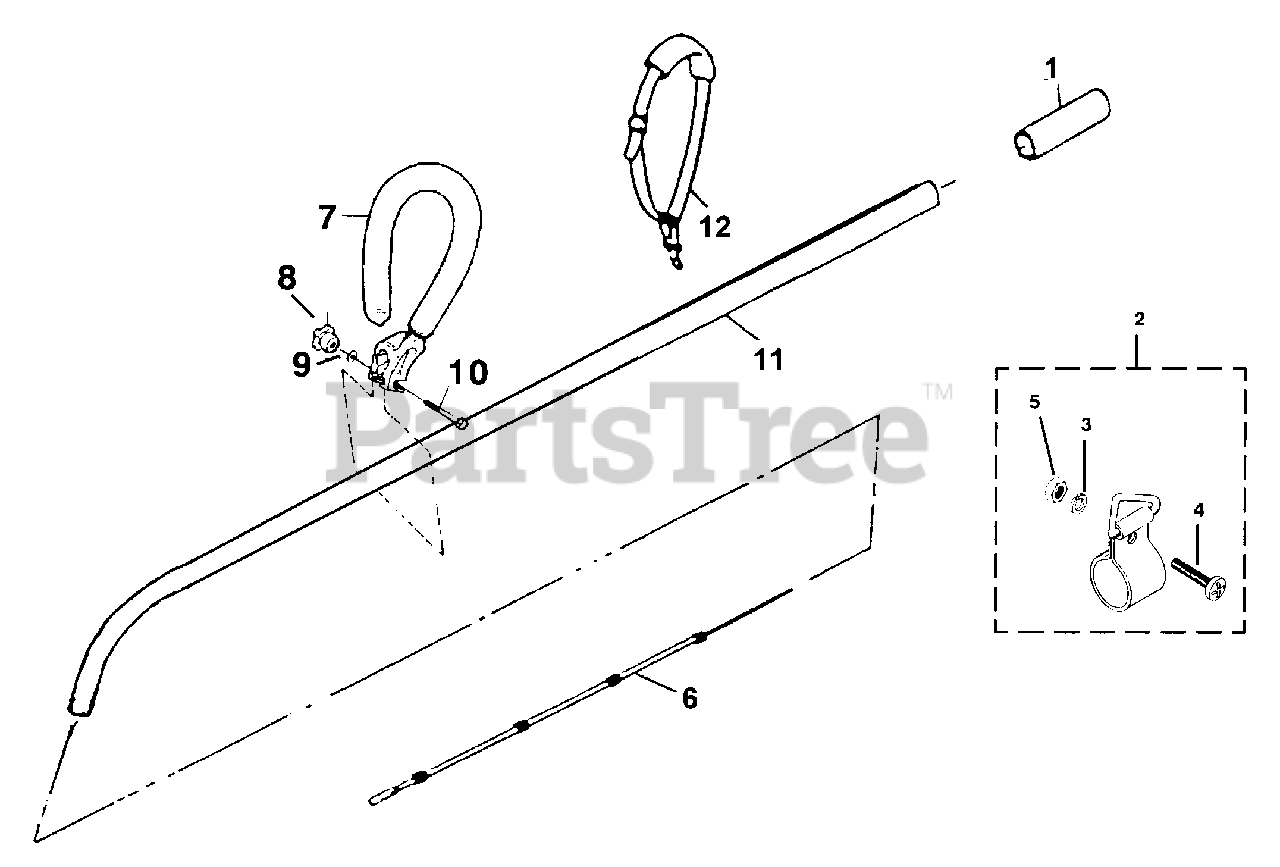

Driveshaft And Handle Parts Diagram

  • Title

1

Homelite GM300038

FOAM GRIP

$

$

Not available

2

Homelite GM300245

HANGER ASSY
(Superseded to UP06800)

$

$

Not available

3

Homelite GM041101

WASHER

$

$

Not available

4

Homelite GM010002

SCREW

$2.49

$

Usually ships in 3-7 days

0

5

Homelite GM050003

NUT

Note: Torque Specifications: 5-30 In/Lbs; .5-3.4 Nm

$

$

Not available

6

Homelite GM287801

FLEX SHAFT

$

$

Not available

7

Homelite GM300302

HANDLE ASSY.

$

$

Not available

8

Homelite 08290

KNOB

$

$

Not available

9

Homelite 80295

BOLT

$4.99

$

Usually ships in 3-7 days

0

10

Homelite 84006

WASHER

$

$

Not available

11

Homelite GM280344

TUBE ASSY

$

$

Currently unavailable

12

Homelite GM257601

HARNESS

Note: (OPTIONAL)

$

$

Not available
