1900 E - Green Machine Edger Engine Internal Parts Diagram

Edger

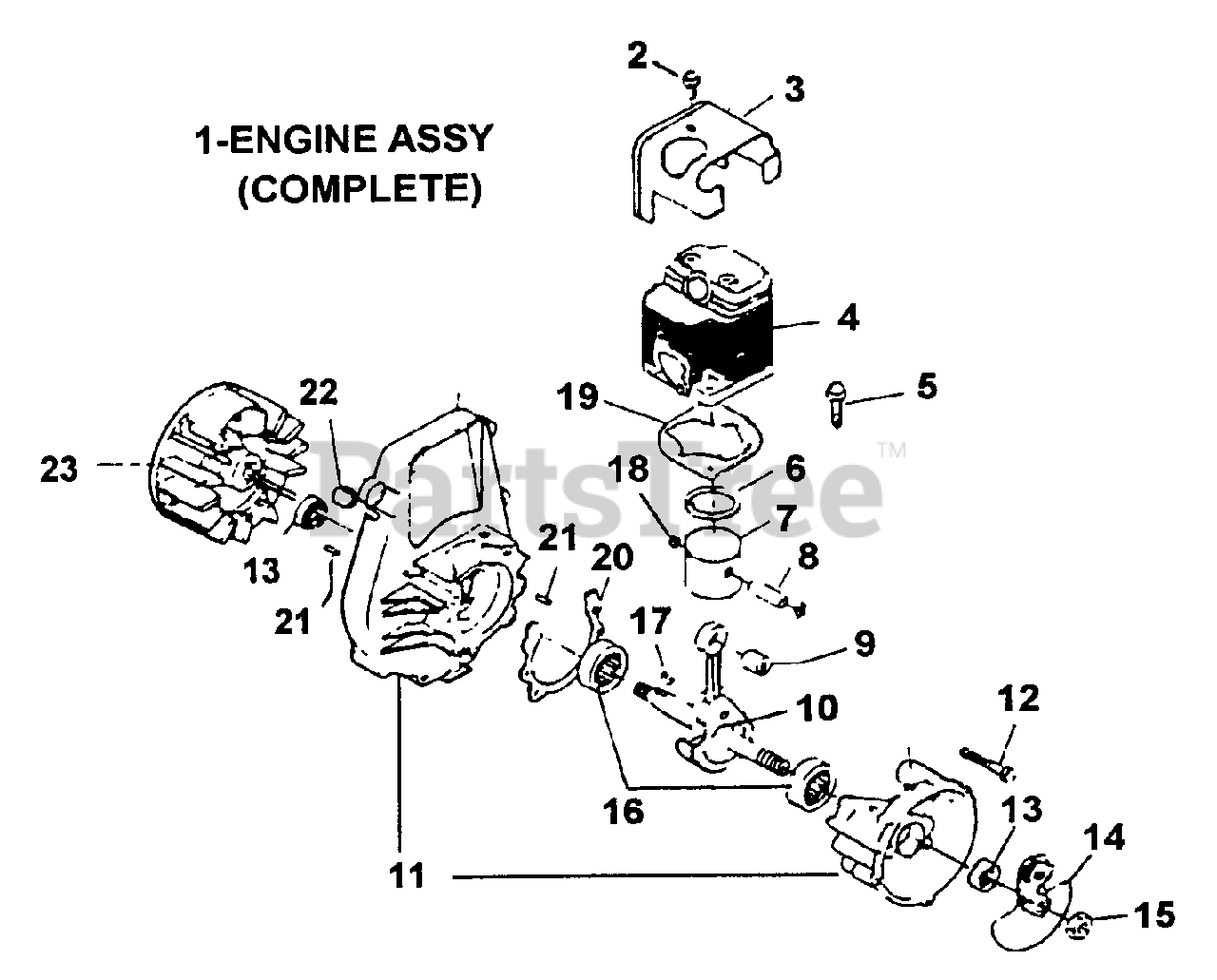

Engine Internal Parts Diagram

  • Title
1

Homelite GM190600

ENGINE ASSY. (25cc)

Note: Complete

$

$

Currently unavailable

$4.49

$

Usually ships in 3-7 days

0

3

Homelite GM196704

COVER, CYLINDER

$8.99

$

Usually ships in 3-7 days

0

4

Homelite GM196715

CYLINDER (25cc)

$114.99

$

Usually ships in 3-7 days

0

Homelite GM196705

CYLINDER (21cc)

$

$

Currently unavailable

$4.49

$

Usually ships in 3-7 days

0

6

Homelite GM062011

PIN, PISTON (25cc)

$

$

Currently unavailable

Homelite GM062007

PIN, PISTON (21cc)

$

$

Currently unavailable

7

Homelite GM196716

PISTON (25cc)

$74.99

$

Usually ships in 3-7 days

0

Homelite GM196707

PISTON (21cc)

$82.99

$

Usually ships in 3-7 days

0

8

Homelite GM197610

WRIST PIN (25cc)

$4.49

$

Usually ships in 3-7 days

0

Homelite GM197604

WRIST PIN (21cc)

$4.99

$

Usually ships in 3-7 days

0

9

$33.99

$

Usually ships in 3-7 days

0

10

Homelite GM196718

CRANKSHAFT ASSY. (25cc)

$

$

Currently unavailable

Homelite GM196708

CRANKSHAFT ASSY. (21cc)

$

$

Currently unavailable

11

Homelite GM196706

CRANKCASE ASSY.

$

$

Currently unavailable

$4.99

$

Usually ships in 3-7 days

0

$

$

Not available

14

Homelite GM197609

RATCHET ASSY. (25cc)

$31.99

$

Usually ships in 3-7 days

0

14

Homelite GM197602

RATCHET ASSY. (21cc)

$

$

Currently unavailable

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Homelite GM197605

KEY, FLYWHEEL

$4.49

$

Usually ships in 3-7 days

0

18

Homelite GM062006

SNAP RING

$

$

Currently unavailable

19

Homelite GM197404

GASKET, CYLINDER

$

$

Currently unavailable

20

Homelite GM197405

GASKET, CRANKCASE

$

$

Currently unavailable

$4.49

$

Usually ships in 3-7 days

0

22

$

$

Currently unavailable

23

$

$

Currently unavailable
