190-993-401 - Yard-Man Mower Deck Assembly Only (1996) Mowing Deck Assembly Parts Diagram

Mower Deck Assembly Only

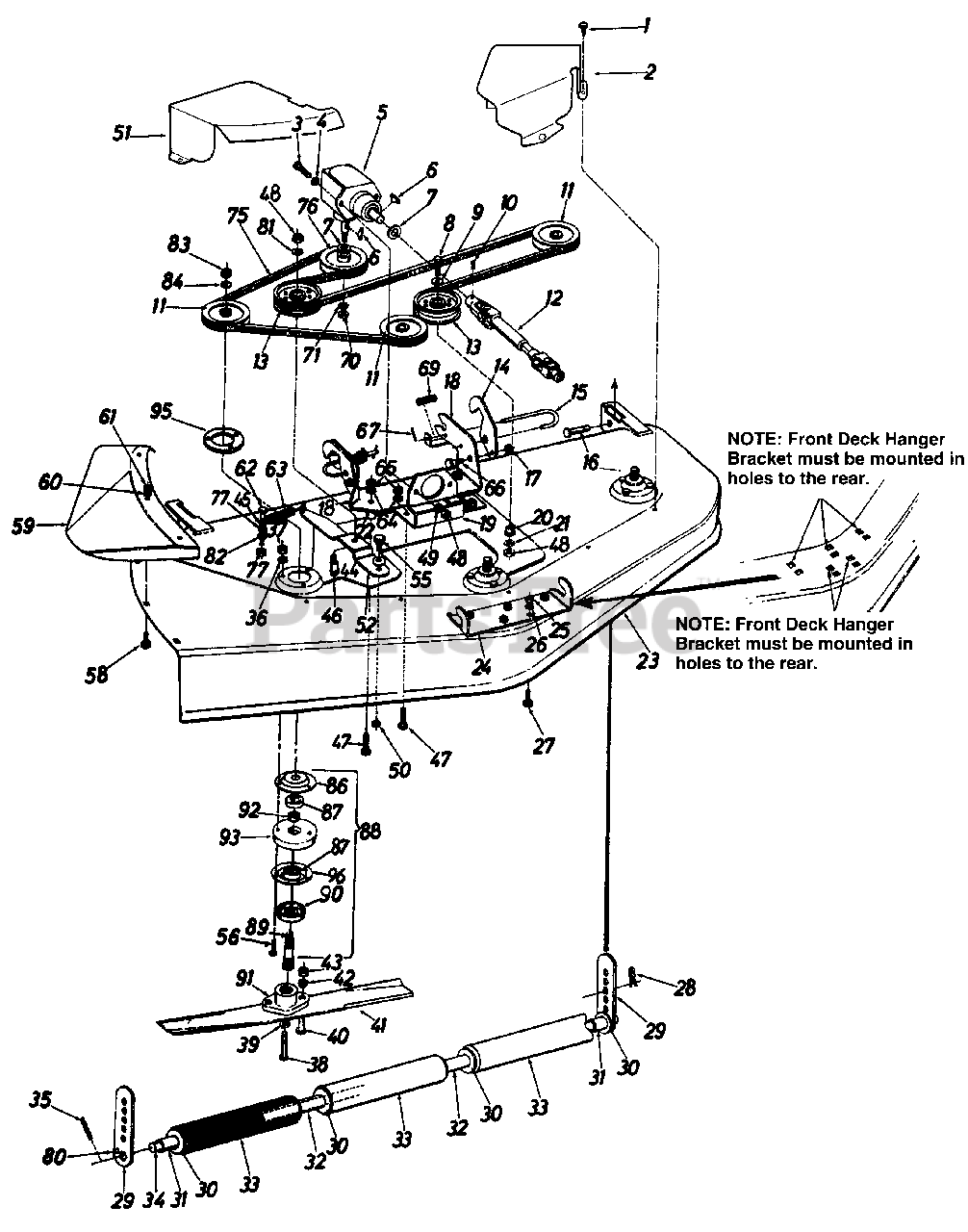

Mowing Deck Assembly Parts Diagram

  • Title

1

MTD 710-0599

Hex TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

2

MTD 783-0131

Belt Cover - L.H.

Variations

MTD 783-0131-0480

GUARD-BELT LH - BRILLIANT GREEN (0480)

$50.99

$

Usually ships in 3-6 days

0

MTD 783-0131-0483

GUARD-BELT LH - CHARCOAL GRAY (0483)

$50.99

$

Usually ships in 3-6 days

0

MTD 783-0131-0637

GUARD-BELT LH - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

MTD 783-0131-0638

GUARD-BELT LH - MTD/TROY-BILT RED (0638)

$50.99

$

Usually ships in 3-6 days

0

MTD 783-0131-0648

GUARD-BELT LH - TECH GRAY (0648)

$50.99

$

Usually ships in 3-6 days

0

MTD 783-0131-0665

GUARD-BELT LH - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0131-0498

No Longer Available GUARD-BELT - OLD CUB YELLOW (0498)

$

$

Not available

$50.99

$

Usually ships in 3-6 days

0

3

MTD 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 11

0

4

MTD 736-0148

Ext. L-Wash. 3/8" I.D.

$3.99

$

In Stock, only 3 left!

0

5

MTD n/a

Right Angle Drive

Note: (Refer to Right Angle Drive Box)

$

$

Currently unavailable

6

MTD 714-0126

#9 Hi-Pro Key 3/16 x 3/4" Dia.

$4.99

$

In Stock, Qty 18

0

7

MTD 736-0181

Fl-Wash. 29/32" I.D.

$

$

Not available

8

MTD 710-0756

Hex Bolt 3/8-16 x 2.25" Lg.

$

$

Not available

9

MTD 736-0300

Fl-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0357

Sq. Hd. Set Scr. 3/8-16 x .50"

$

$

Not available

11

MTD 756-0519

Deck Pulley

$85.99

$

In Stock, only 3 left!

0

12

MTD 717-0401

Universal Drive Shaft Ass'y.

$873.99

$

Usually ships in 3-6 days

0

12

MTD 717-0439

Universal Drive Male Half

$568.99

$

Usually ships in 3-6 days

0

12

MTD 717-0440

Universal Drive Female Half

$568.99

$

Usually ships in 3-6 days

0

13

MTD 711-0306

Deck Idler Pulley

$115.99

$

Usually ships in 3-6 days

0

14

MTD 12564

Hanger Lock

$

$

Not available

15

MTD 747-0160

Release Pin

$

$

Not available

16

MTD 711-0310

Clevis Pin .50" Dia.

$10.99

$

Usually ships in 3-6 days

0

17

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

18

MTD 12648

Rear Deck Hanger Brkt.

Variations

MTD 12648-0637

No Longer Available BRACKET-DE - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 13705

Gear Box Mounting Brkt. Ass'y.

Variations

MTD 13705-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 711-0598

Idler Adapter

$

$

Not available

21

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

22

MTD 750-0776

Spacer .33" I.D. x .88" O.D.

$

$

Not available

23

MTD 12640

Deck Ass'y.

Variations

MTD 12640-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 12640-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 12640-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

24

MTD 12646

Front Deck Hanger Brkt.

Variations

MTD 12646-0637

Front Deck Hanger Brkt. - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 712-3010

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

28

MTD 714-0101

Internal Cotter Pin

$4.99

$

In Stock, only 2 left!

0

29

MTD 12650

Height Adjuster

Variations

MTD 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 3 left!

0

MTD 12650-4008

Height Adjuster - WINE RED (4008)

$43.99

$

In Stock, only 3 left!

0

$35.99

$

Usually ships in 3-6 days

0

30

MTD 736-0188

Fl-Wash. .75" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

31

MTD 750-0212

Spacer .758" I.D. x 1.25" O.D. x .530

$10.99

$

In Stock, Qty 18

0

32

MTD 750-0288

Spacer Tube

Variations

MTD 750-0288-0637

Spacer, .82 x 1.0 x 5.75 - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 731-0335

Roller

$72.99

$

In Stock, Qty 11

0

34

MTD 738-0295

Roller Shaft

$124.99

$

In Stock, only 2 left!

0

35

MTD 715-0246

Roll Pin 3/16 x 1.25"
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

36

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

37

MTD 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

38

MTD 710-0180

Hex Self-Tap Scr. 3/8-24 x .75" Lg. (Gr. 5)

Note: (Use with 14199A )

$6.99

$

In Stock, only 3 left!

0

38

MTD 710-0696

Hex Bolt 3/8-24 x .88" Lg. (Gr. 5)

Note: (Use with 918-0118)

$6.99

$

In Stock, only 2 left!

0

39

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 9

0

40

MTD 710-0888

Hex Bolt 5/16-24 x 1" Lg.

$4.49

$

In Stock, Qty 5

0

41

MTD 942-0171B

Blade 17" (Round hole blade)
(Superseded to 742-0171B-0637)

$

$

Not available

42

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

MTD 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

44

MTD 736-0141

Spr. Wash..445" I.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

45

MTD 736-0176

Fl-Wash. 1/4" I.D.

$4.99

$

In Stock, only 4 left!

0

46

MTD 738-0150

Shld. Scr. .625" Dia. x .96"
(Superseded to 938-0150)

$24.99

$

Usually ships in 3-6 days

0

47

MTD 710-0262

Carriage Bolt 5/16-18 x 1.5" Lg.

$3.99

$

In Stock, Qty 12

0

48

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

49

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

50

MTD 712-0290

Hex L-Nut 7/16-14 Thd.

$4.99

$

In Stock, Qty 11

0

51

MTD 783-0130

Belt Cover - R.H.

Variations

MTD 783-0130-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0130-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0130-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 783-0130-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0130-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 783-0130-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0130-0498

No Longer Available GUARD-BELT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0130-0629

No Longer Available GUARD-BELT - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0130-0662

No Longer Available GUARD-BELT - OYSTER GRAY (0662)

$

$

Not available

$

$

52

MTD 09489

Deck Spring Idler Brkt.

Variations

MTD 09489-0637

No Longer Available BRACKET-SP - POWDER BLACK (0637)

$

$

Not available

$

$

55

MTD 738-0163

Shld. Bolt .625" Dia. x .26"

$

$

Not available

56

MTD 710-0672

Hex Bolt 5/16-24 x 1.5" Lg. (Grade 5)

$4.49

$

In Stock, Qty 18

0

56

MTD 710-1016

Screw-Rib Neck 5/16-24 x 1.12" Lg.

Note: (If equipped)

$3.99

$

Usually ships in 3-6 days

0

58

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

59

MTD 12649

Chute Guard
(Superseded to 12649-0637)

Variations

MTD 12649-0637

GUARD-CHUTE - POWDER BLACK (0637)

$168.99

$

Usually ships in 3-6 days

0

MTD 12649-0638

GUARD-CHUTE - MTD/TROY-BILT RED (0638)

$168.99

$

Usually ships in 3-6 days

0

MTD 12649-0648

GUARD-CHUTE - TECH GRAY (0648)

$

$

Not available

MTD 12649-0650

No Longer Available GUARD-CHUT - RED METALLIC (0650)

$

$

Not available

MTD 12649-0662

No Longer Available GUARD-CHUT - OYSTER GRAY (0662)

$

$

Not available

MTD 12649-0665

No Longer Available GUARD-CHUT - YARDMAN GREEN (0665)

$

$

Not available

$168.99

$

Usually ships in 3-6 days

0

60

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

61

MTD 912-3010

Hex Nut 5/16-18 Thd.
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

62

MTD 710-0559

Hex Bolt 1/4-28 x 1-3/4" Lg.

$

$

Not available

63

MTD 732-0180

Extension Spring
(Superseded to 932-0180)

$12.99

$

In Stock, only 2 left!

0

64

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

65

MTD 912-3010

Hex Nut 5/16-18 Thd.
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

66

MTD 738-0296

Shld. Bolt

$4.49

$

In Stock, Qty 20+

0

67

MTD 715-0129

Roll Pin 1/8" Dia.

$4.99

$

In Stock, only 1 left!

0

69

MTD 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

70

MTD 712-0923

Hex L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

71

MTD 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, only 1 left!

0

75

MTD 954-0197

V-Belt 1/2"

$83.99

$

In Stock, only 2 left!

0

76

MTD 756-0632

Drive Pulley

$112.99

$

Usually ships in 3-6 days

0

77

MTD 712-0138

Hex L-Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

80

MTD 715-0108

Spring Pin Spiral 1/4" Dia. 1.00" Lg.

$4.99

$

In Stock, Qty 15

0

81

MTD 736-0105

Bell-Wash. 3/8" I.D. x . 87" O.D.

$4.49

$

In Stock, Qty 20+

0

82

MTD 736-0329

L-Wash. 1/4" I.D."
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

83

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

84

MTD 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, only 1 left!

0

86

MTD 08253B

Bearing Housing

Note: (Use with 14199A )

$19.99

$

In Stock, only 1 left!

0

86

MTD 15297A

Bearing Housing

Note: (Use with 918-0118)

$69.99

$

Usually ships in 3-6 days

0

87

MTD 741-0919A

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

88

MTD 14199A

Deck Spindle Assembly 3/4"

Note: (Use with 748-0235 Blade Adapter for3/4" spindle)

$

$

Not available

88

MTD 918-0118

Deck Spindle Assembly 1"

Note: (Use with 748-0300 Blade Adapter for 1" spindle)

$177.99

$

Usually ships in 3-6 days

0

89

MTD 738-0469B

Spindle 3/4"
(Superseded to 938-0469B)

$112.99

$

In Stock, only 1 left!

0

90

MTD 13703

Bearing Shield

$

$

Not available

91

MTD 748-0235

Blade Adapter 3/4"

Note: (Replaces 748-0283; Use with 14199A )

$

$

Not available

91

MTD 748-0300

Blade Adapter 1"

Note: (Use with 918-0118)

$13.99

$

In Stock, only 4 left!

0

92

MTD 750-0456

Spacer

$4.49

$

In Stock, Qty 20+

0

93

MTD 14088B

Spindle Spacer Plate
(Superseded to 14088B-0637)

Variations

MTD 14088B-0637

Spindle Spacer - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

95

MTD 14249A

Spindle Reinforcement Plate

$

$

Not available

96

MTD 15296A

Open Bearing Housing

Note: (Use with 14199A )

$8.99

$

In Stock, only 2 left!

0

96

MTD 741-0163A

Bearing Housing w/bearing 741-0919A

Note: (Use with 918-0118)

$48.99

$

Usually ships in 3-6 days

0
