190-993-190 - White Outdoor 50" Mower Deck (1995) Right Angle Drive Box (Peerless) Parts Diagram

50" Mower Deck

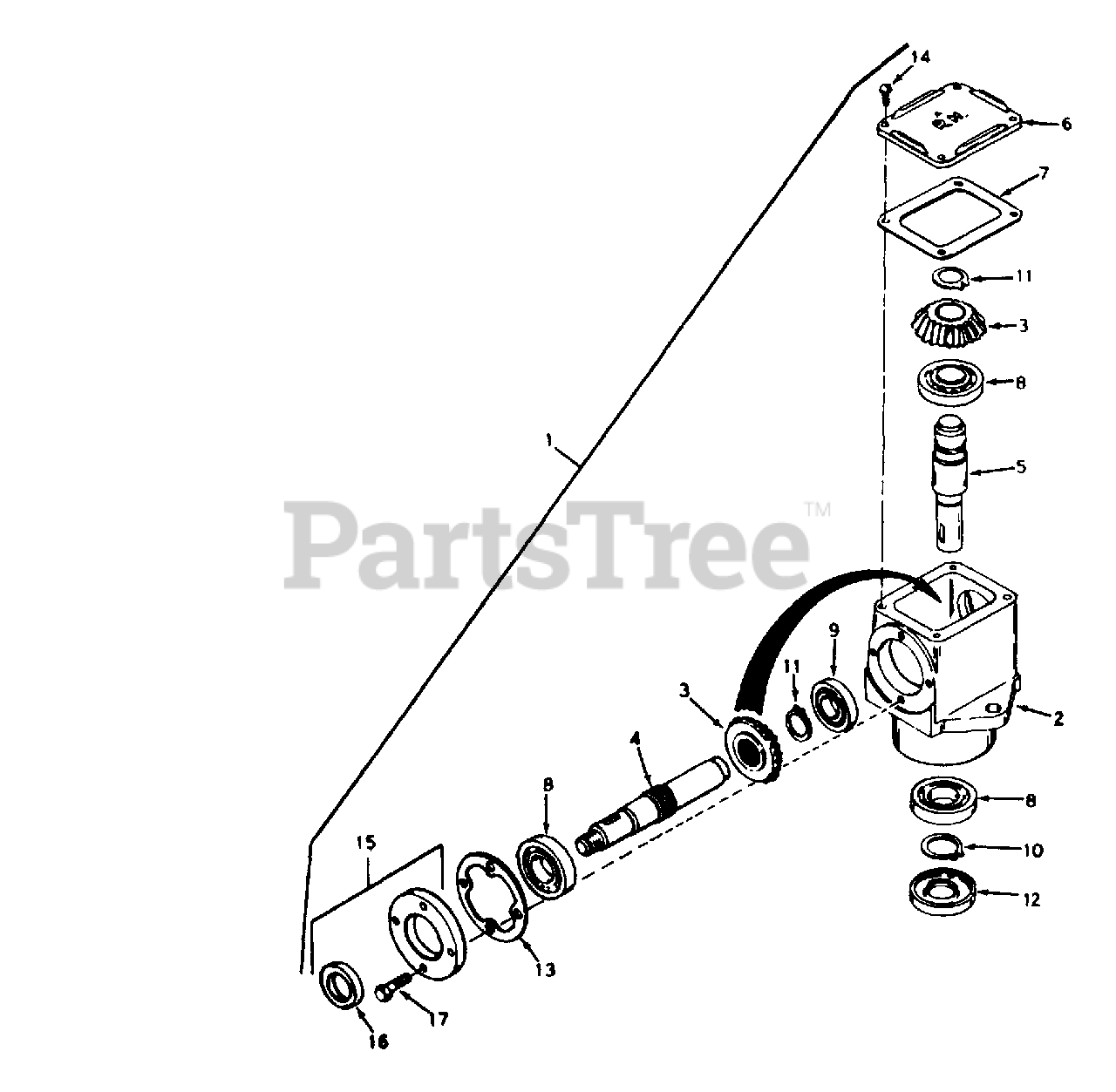

Right Angle Drive Box (Peerless) Parts Diagram

  • Title

1

PE-794111

Head Ass'y. R.H.

Note: (Incl. Nos. 2 thru 15)

$

$

Not available

2

PE-770026

Housing, Right Angle Drive

$

$

Not available

3

MTD PE-778046

Gear, Miter
(Superseded to TC-778046)

$44.99

$

Usually ships in 3-12 days

0

4

PE-776149

Shaft, Input

$

$

Not available

5

PE-7761P9

Shaft, Output

$

$

Not available

6

PE-772034

Cover, Right Hand

$

$

Not available

7

PE-788028

Gasket, Cover

$

$

Not available

8

PE-780034

Bearing, Ball

$

$

Not available

9

PE-780024

Bearing, Ball

$

$

Not available

10

PE-788019

Ring, Snap

$

$

Not available

11

PE-788018

Ring, Snap

$

$

Not available

12

PE-788029

Seal, Oil

$

$

Not available

13

PE-788030

Gasket, Cap

$

$

Not available

14

PE-792025

Screw, Rd. Hd. Self-Tap. 10-24 x 1/2

$

$

Not available

15

PE-786029

Cap & Seal Ass'y., Retainer

Note: (Incl. Nos. 16 & 17)

$

$

Not available

16

PE-788031

Seal, Oil

$

$

Not available

17

PE-792026

Screw, Hex Hd. 1/4-20 x 7/8

$

$

Not available
