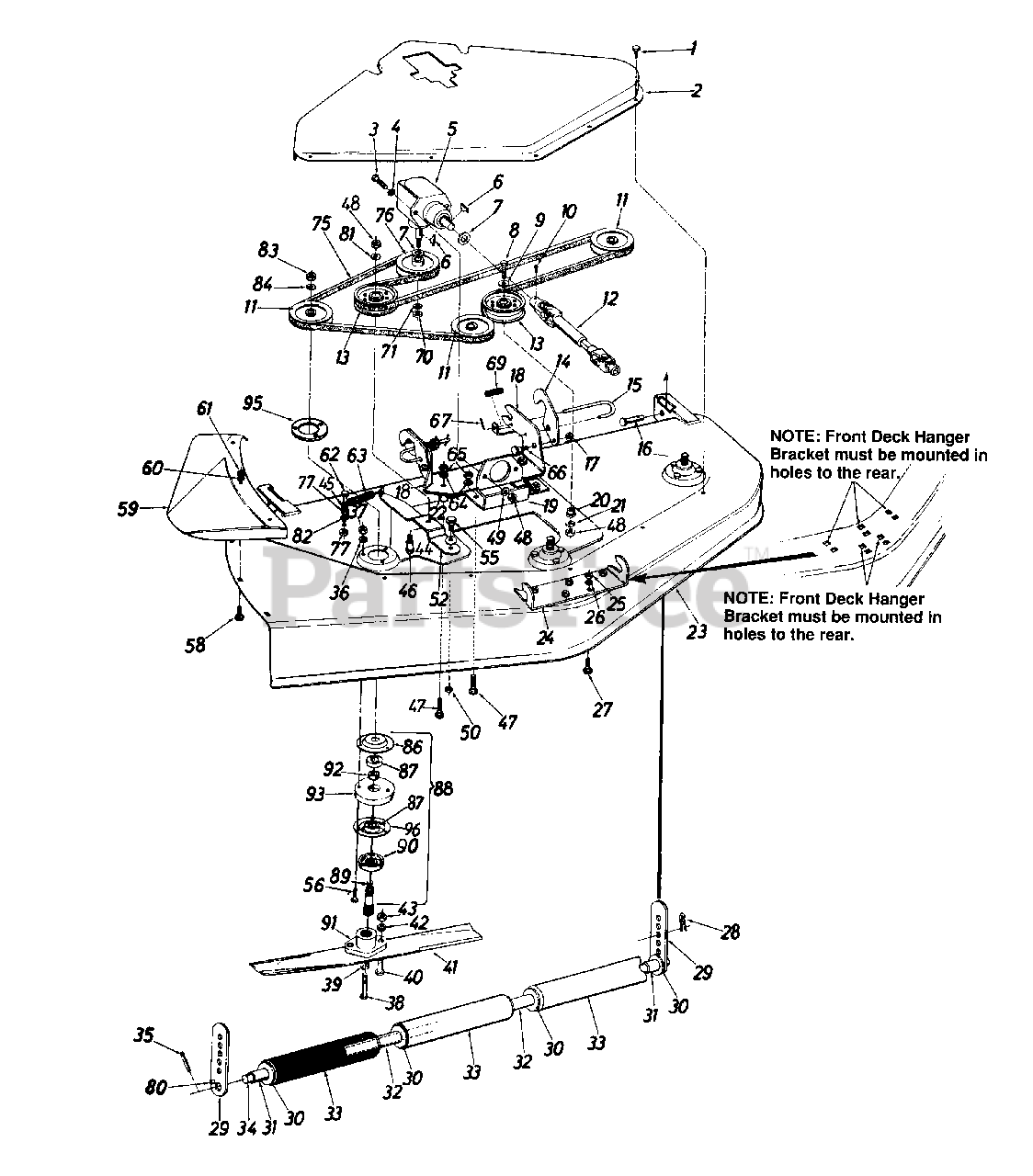

190-993-190 - White Outdoor 50" Mower Deck (1995) Mowing Deck Parts Diagram

50" Mower Deck

Mowing Deck Parts Diagram

  • Title

1

White Outdoor 710-0352

Hex B-Tap Scr. 1/4-20 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

2

White Outdoor 12651

Belt Cover

Variations

White Outdoor 12651-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 12651-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 12651-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

3

White Outdoor 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 10

0

4

White Outdoor 736-0148

Ext. L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

5

Right Angle Drive

$

$

Not available

6

White Outdoor 714-0126

#9 Hi-Pro Key 3/16 x 3/4" Dia.

$4.99

$

In Stock, Qty 16

0

7

White Outdoor 736-0181

Fl-Wash. 29/32" I.D.

$

$

Not available

8

White Outdoor 710-0756

Hex Bolt 3/8-16 x 2.25" Lg.

$

$

Not available

9

White Outdoor 736-0300

Fl-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0357

Sq. Hd. Set Scr. 3/8-16 x .50"

$

$

Not available

11

White Outdoor 756-0519

Deck Pulley

$85.99

$

In Stock, only 3 left!

0

12

White Outdoor 717-0401

Universal Drive Shaft Ass'y.

$873.99

$

Usually ships in 3-6 days

0

White Outdoor 717-0439

Universal Drive Male Half

$568.99

$

Usually ships in 3-6 days

0

White Outdoor 717-0440

Universal Drive Female Half

$568.99

$

Usually ships in 3-6 days

0

13

White Outdoor 711-0306

Deck Idler Pulley

$115.99

$

Usually ships in 3-6 days

0

14

White Outdoor 12564

Hanger Lock

$

$

Not available

15

White Outdoor 747-0160

Release Pin

$

$

Not available

16

White Outdoor 711-0310

Clevis Pin .50" Dia.

$10.99

$

Usually ships in 3-6 days

0

17

White Outdoor 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

18

White Outdoor 12648

Rear Deck Hanger Brkt.

Variations

White Outdoor 12648-0637

No Longer Available BRACKET-DECK HANGE - POWDER BLACK (0637)

$

$

Not available

$

$

19

White Outdoor 13705

Gear Box Mounting Brkt. Ass'y.

Variations

White Outdoor 13705-0637

No Longer Available BRACKET ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

20

White Outdoor 711-0598

Idler Adapter

$

$

Not available

21

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 750-0776

Spacer .33" I.D. x .88" O.D.

$

$

Not available

23

White Outdoor 12640

Deck Ass'y.

Variations

White Outdoor 12640-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 12640-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 12640-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

24

White Outdoor 12646

Front Deck Hanger Brkt.

Variations

White Outdoor 12646-0637

BRACKET-DECK HANGE - POWDER BLACK (0637)

$

$

Not available

$

$

25

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

26

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 714-0101

Internal Cotter Pin

$4.99

$

In Stock, only 2 left!

0

29

White Outdoor 12650

Height Adjuster

Variations

White Outdoor 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 3 left!

0

White Outdoor 12650-4008

Height Adjuster - WINE RED (4008)

$43.99

$

In Stock, only 3 left!

0

$35.99

$

Usually ships in 3-6 days

0

30

White Outdoor 736-0188

Fl-Wash. .75" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 750-0212

Spacer .758" I.D. x 1.25" O.D. x .530

$10.99

$

In Stock, Qty 18

0

32

White Outdoor 750-0288

Spacer Tube

Variations

White Outdoor 750-0288-0637

SPACER-TUBE - POWDER BLACK (0637)

$

$

Not available

$

$

33

White Outdoor 731-0335

Roller

$72.99

$

In Stock, Qty 11

0

34

White Outdoor 738-0295

Roller Shaft

$124.99

$

In Stock, only 2 left!

0

35

White Outdoor 715-0246

Roll Pin 3/16 x 1.25"
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

36

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

?37

White Outdoor 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

38

White Outdoor 710-0180

Hex Self-Tap Scr. 3/8-24 x .75" Lg.

$6.99

$

In Stock, only 3 left!

0

39

White Outdoor 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 8

0

40

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 742-0171

Blade 17"
(Superseded to 942-0171B)

$

$

Not available

42

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

White Outdoor 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

44

White Outdoor 736-0141

Spr. Wash. .445" I.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

45

White Outdoor 736-0176

Fl-Wash. 1/4" I.D.

$4.99

$

In Stock, only 4 left!

0

46

White Outdoor 738-0150

Shld. Scr. .625" Dia. x .96"
(Superseded to 938-0150)

$24.99

$

Usually ships in 3-6 days

0

47

White Outdoor 710-0262

Carriage Bolt 5/16-18 x 1.5" Lg.

$3.99

$

In Stock, Qty 11

0

48

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

49

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

50

White Outdoor 712-0290

Hex L-Nut 7/16-14 Thd.

$4.99

$

In Stock, Qty 11

0

52

White Outdoor 09489

Deck Spring Idler Brkt.

Variations

White Outdoor 09489-0637

No Longer Available BRACKET-SPRING IDL - POWDER BLACK (0637)

$

$

Not available

$

$

55

White Outdoor 738-0163

Shld. Bolt .625" Dia. x .26"

$

$

Not available

56

White Outdoor 710-0672

Hex Bolt 5/16-24 x 1.5" Lg. (Grade 5)

$4.49

$

In Stock, Qty 18

0

58

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 12649

Chute Guard
(Superseded to 12649-0637)

Variations

White Outdoor 12649-0637

GUARD-CHUTE - POWDER BLACK (0637)

$168.99

$

Usually ships in 3-6 days

0

White Outdoor 12649-0638

GUARD-CHUTE - MTD/TROY-BILT RED (0638)

$168.99

$

Usually ships in 3-6 days

0

White Outdoor 12649-0648

GUARD-CHUTE - TECH GRAY (0648)

$

$

Not available

White Outdoor 12649-0650

GUARD-CHUTE - RED METALLIC (0650)

$

$

Not available

White Outdoor 12649-0662

GUARD-CHUTE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 12649-0665

No Longer Available GUARD-CHUTE - YARDMAN GREEN (0665)

$

$

Not available

$168.99

$

Usually ships in 3-6 days

0

60

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

61

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

62

White Outdoor 710-0559

Hex Bolt 1/4-28 x 1-3/4" Lg.

$

$

Not available

63

White Outdoor 732-0180

Extension Spring
(Superseded to 932-0180)

$12.99

$

In Stock, only 2 left!

0

64

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

65

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

66

White Outdoor 738-0296

Shld. Bolt

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 715-0129

Roll Pin 1/8" Dia.

$4.99

$

In Stock, only 1 left!

0

69

White Outdoor 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

70

White Outdoor 712-0923

Hex L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

71

White Outdoor 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

75

White Outdoor 754-0197

"V"-Belt
(Superseded to 954-0197)

$83.99

$

In Stock, only 2 left!

0

76

White Outdoor 756-0632

Drive Pulley

$112.99

$

Usually ships in 3-6 days

0

77

White Outdoor 712-0318

Hex L-Nut 1/4-28 Thd.

$3.49

$

In Stock, Qty 12

0

80

White Outdoor 715-0108

Spring Pin Spiral 1/4" Dia. 1.00" Lg.

$4.99

$

In Stock, Qty 15

0

81

White Outdoor 736-0105

Bell-Wash. 3/8" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

82

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

83

White Outdoor 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

84

White Outdoor 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

86

White Outdoor 08253B

Bearing Housing

$19.99

$

In Stock, only 1 left!

0

87

White Outdoor 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

88

White Outdoor 14199A

Deck Spindle Ass'y.

$

$

Not available

89

White Outdoor 738-0469B

Spindle
(Superseded to 938-0469B)

$112.99

$

In Stock, only 1 left!

0

90

White Outdoor 13703

Bearing Shield

$

$

Not available

91

White Outdoor 748-0235

Blade Adapter

$

$

Not available

92

White Outdoor 750-0456

Spacer

$4.49

$

In Stock, Qty 20+

0

93

White Outdoor 14088B

Spindle Spacer Plate
(Superseded to 14088B-0637)

Variations

White Outdoor 14088B-0637

Spindle Spacer - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

95

White Outdoor 14249A

Spindle Reinforcement Plate

$

$

Not available

96

White Outdoor 15296A

Open Bearing Housing

$8.99

$

In Stock, only 2 left!

0
