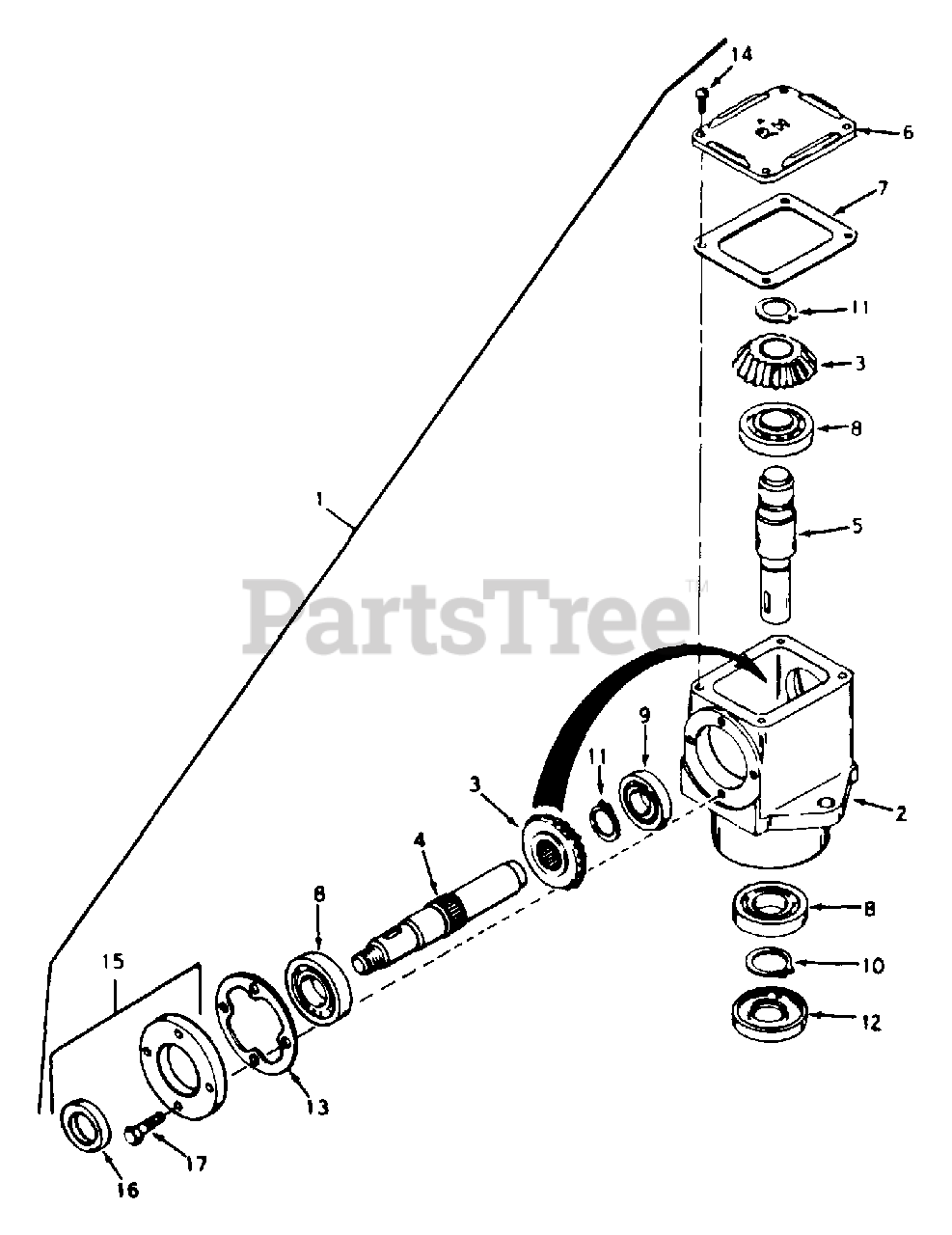

190-993-000 - MTD 50" Mower Deck (1993) Right Angle Drive Box Parts Diagram

50" Mower Deck

Right Angle Drive Box Parts Diagram

  • Title

1

MTD PE-794111

Head Ass'y. R.H.

Note: (Incl. Nos. 2 thru 15)

$

$

Currently unavailable

2

MTD PE-770026

Housing, Right Angle Drive

$

$

Currently unavailable

3

MTD PE-778046

Gear, Miter
(Superseded to TC-778046)

$44.99

$

Usually ships in 3-12 days

0

4

MTD PE-776149

Shaft, Input

$

$

Currently unavailable

5

MTD PE-776129

Shaft, Output

$

$

Currently unavailable

6

MTD PE-772034

Cover, Right Hand

$

$

Currently unavailable

7

MTD PE-788028

Gasket, Cover

$

$

Currently unavailable

8

MTD PE-780034

Bearing, Ball

$

$

Currently unavailable

9

MTD PE-780024

Bearing, Ball

$

$

Currently unavailable

10

MTD PE-788019

Ring, Snap

$

$

Currently unavailable

11

MTD PE-788018

Ring, Snap

$

$

Currently unavailable

12

MTD PE-788028

Seal, Oil

$

$

Currently unavailable

13

MTD PE-788030

Gasket, Cap

$

$

Currently unavailable

14

MTD PE-792025

Screw, Rd. Hd. Self-Tap. 10-24 x 1/2

$

$

Currently unavailable

15

MTD PE-786029

Cap & Seal Ass'y., Retainer

Note: (Incl. Nos. 16 & 17)

$

$

Currently unavailable

16

MTD PE-788031

Seal, Oil

$

$

Currently unavailable

17

MTD PE-792026

Screw, Hex Hd. 1/4-20 x 7/8

$

$

Currently unavailable
