190-993-000 - MTD 50" Mower Deck (1990) 50" Mowing Deck Parts Diagram

50" Mower Deck

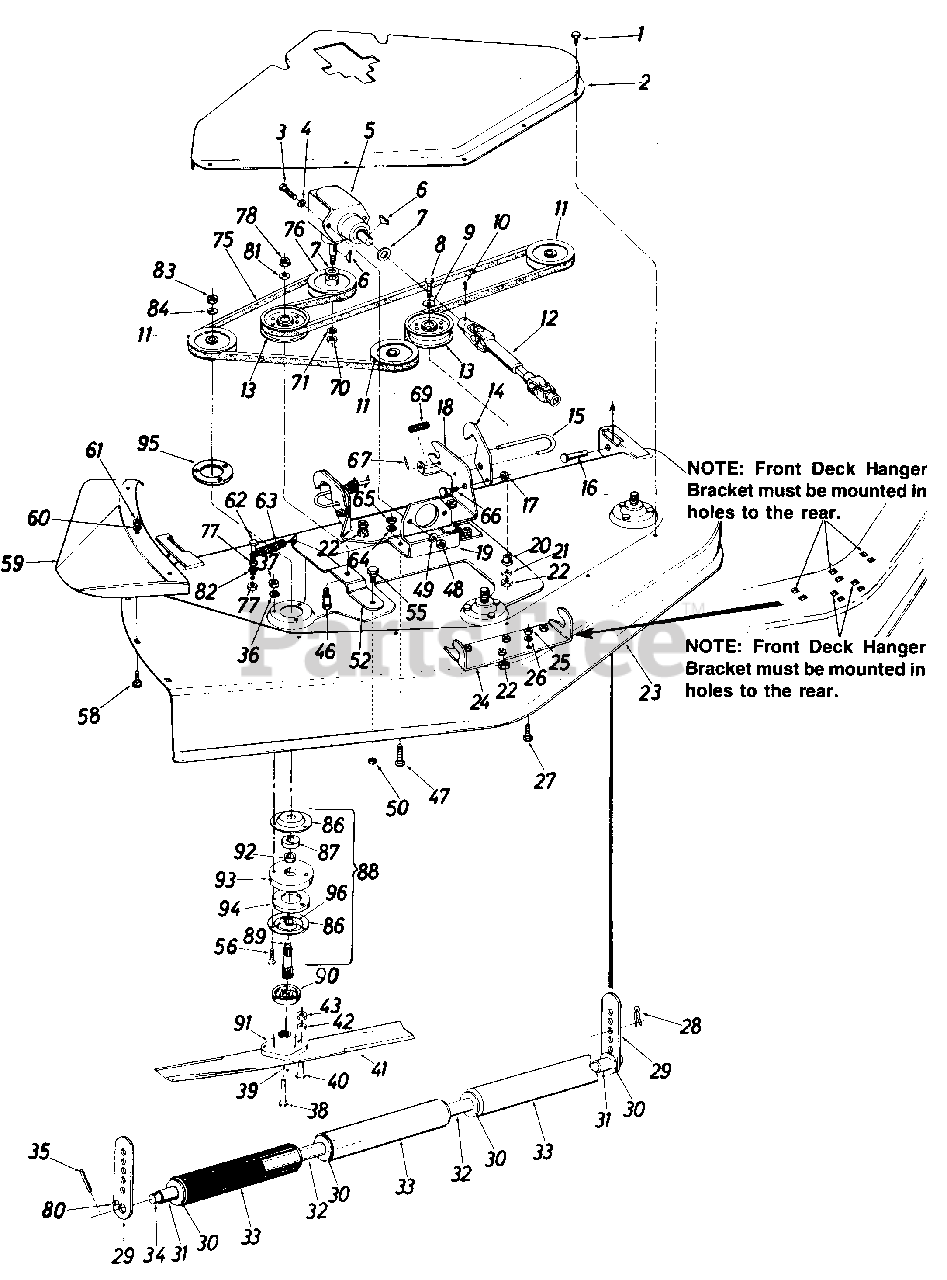

50" Mowing Deck Parts Diagram

  • Title

1

MTD 710-0352

Hex B-Tap Scr. 1/4-20 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

2

MTD 12651

Belt Cover

Variations

MTD 12651-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 12651-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 12651-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

3

MTD 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

4

MTD 736-0148

Ext. L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

5

Right Angle Drive

$

$

Not available

6

MTD 714-0126

#9 Hi-Pro Key 3/16 x 3/4" Dia.

$4.99

$

In Stock, Qty 12

0

7

MTD 736-0181

Fl-Wash. 29/32" I.D.

$

$

Not available

8

MTD 710-0756

Hex Bolt 3/8-16 x 2.25" Lg.

$

$

Not available

9

MTD 736-0300

Fl-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0357

Sq. Hd. Set Scr. 3/8-16 x .50"

$

$

Not available

11

MTD 756-0355

Deck Pulley
(Superseded to 756-0519)

$85.99

$

In Stock, only 3 left!

0

12

MTD 717-0401

Universal Drive Shaft Ass'y.

$873.99

$

Usually ships in 3-6 days

0

MTD 717-0439

Universal Drive Male Half

$568.99

$

Usually ships in 3-6 days

0

MTD 717-0440

Universal Drive Female Half

$568.99

$

Usually ships in 3-6 days

0

13

MTD 711-0306

Deck Idler Pulley

$115.99

$

Usually ships in 3-6 days

0

14

MTD 12564

Hanger Lock

$

$

Not available

15

MTD 747-0160

Release Pin

$

$

Not available

16

MTD 711-0310

Clevis Pin .50" Dia.

$10.99

$

Usually ships in 3-6 days

0

17

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

18

MTD 12648

Rear Deck Hanger Brkt.

Variations

MTD 12648-0637

No Longer Available BRACKET-DE - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 13705

Gear Box Mounting Brkt. Ass'y.

Variations

MTD 13705-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 711-0598

Idler Adapter

$

$

Not available

21

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

23

MTD 12640

Deck Ass'y.

Variations

MTD 12640-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 12640-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 12640-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

24

MTD 12646

Front Deck Hanger Brkt.

Variations

MTD 12646-0637

Front Deck Hanger Brkt. - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

MTD 710-0276

Carriage Bolt 5/16-18 x 1" Lg.*

$3.99

$

In Stock, Qty 20+

0

28

MTD 714-0101

Internal Cotter Pin

$4.99

$

In Stock, only 1 left!

0

29

MTD 12650

Height Adjuster

Variations

MTD 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 3 left!

0

MTD 12650-4008

Height Adjuster - WINE RED (4008)

$43.99

$

In Stock, only 3 left!

0

$35.99

$

Usually ships in 3-6 days

0

30

MTD 736-0188

Fl-Wash. .75" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

31

MTD 750-0212

Spacer .758" I.D. x 1.25" O.D. x .530

$10.99

$

In Stock, Qty 18

0

32

MTD 750-0288

Spacer Tube

Variations

MTD 750-0288-0637

Spacer, .82 x 1.0 x 5.75 - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 731-0335

Roller

$72.99

$

In Stock, Qty 11

0

34

MTD 738-0295

Roller Shaft

$124.99

$

In Stock, only 2 left!

0

35

MTD 715-0246

Roll Pin 3/16 x 1.25"
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

36

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

37

MTD 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

38

MTD 710-0180

Hex Self-Tap Scr. 3/8-24 x .75" Lg.

$6.99

$

In Stock, only 3 left!

0

39

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 6

0

40

MTD 710-0888

Hex Bolt 5/16-24 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

41

MTD 742-0171

Blade 17"
(Superseded to 942-0171B)

$

$

Not available

42

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

MTD 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

46

MTD 710-0312

Hex Bolt 5/8-18 x 1.31 " Lg.

$

$

Not available

47

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

48

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

49

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

50

MTD 712-0290

Hex L-Nut 7/16-14 Thd.

$4.99

$

In Stock, Qty 11

0

52

MTD 09489

Deck Spring Idler Brkt.

Variations

MTD 09489-0637

No Longer Available BRACKET-SP - POWDER BLACK (0637)

$

$

Not available

$

$

55

MTD 738-0163

Shld. Bolt .625" Dia. x .26n

$

$

Not available

56

MTD 710-0624

Hex Bolt 5/16-24 x 1.5 Lg. (Grade 5)

$5.99

$

Usually ships in 3-6 days

0

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

58

MTD 710-0451

Carriage Bolt 5/16-18 x75n Lg.

$4.49

$

In Stock, Qty 20+

0

59

MTD 12649

Chute Guard
(Superseded to 12649-0637)

Variations

MTD 12649-0637

GUARD-CHUTE - POWDER BLACK (0637)

$168.99

$

Usually ships in 3-6 days

0

MTD 12649-0638

GUARD-CHUTE - MTD/TROY-BILT RED (0638)

$168.99

$

Usually ships in 3-6 days

0

MTD 12649-0648

GUARD-CHUTE - TECH GRAY (0648)

$

$

Not available

MTD 12649-0650

No Longer Available GUARD-CHUT - RED METALLIC (0650)

$

$

Not available

MTD 12649-0662

No Longer Available GUARD-CHUT - OYSTER GRAY (0662)

$

$

Not available

MTD 12649-0665

No Longer Available GUARD-CHUT - YARDMAN GREEN (0665)

$

$

Not available

$168.99

$

Usually ships in 3-6 days

0

60

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

61

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

62

MTD 710-0559

Hex Bolt 1/4-28 x 1-3/4" Lg.

$

$

Not available

63

MTD 732-0180

Extension Spring
(Superseded to 932-0180)

$12.99

$

In Stock, only 1 left!

0

64

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

65

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

66

MTD 738-0296

Shld. Bolt

$4.49

$

In Stock, Qty 20+

0

67

MTD 715-0129

Roll Pin 1/8" Dia.

$4.99

$

In Stock, only 1 left!

0

69

MTD 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

70

MTD 712-0923

Hex L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

71

MTD 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

75

MTD 754-0197

I'V"-Belt
(Superseded to 954-0197)

$83.99

$

In Stock, only 3 left!

0

76

MTD 756-0318

Drive Pulley
(Superseded to 756-0632)

$112.99

$

Usually ships in 3-6 days

0

77

MTD 712-0318

Hex L-Nut 1/4-28 Thd.

$3.49

$

In Stock, Qty 12

0

78

MTD 712-0923

Hex Cent. Lam Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

80

MTD 715-0108

Spring Pin Spiral 1/4" Dia.1.00" Lg.

$4.99

$

In Stock, Qty 15

0

81

MTD 736-0187

Fl-Wash..62" I.D.

$4.49

$

In Stock, Qty 20+

0

82

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

83

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

84

MTD 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

86

MTD 08253

Bearing Housing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

87

MTD 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

88

MTD 14199

Deck Spindle Ass'y.

$239.99

$

Usually ships in 3-6 days

0

89

MTD 738-0469

Spindle
(Superseded to 938-0469B)

$112.99

$

In Stock, only 1 left!

0

90

MTD 13703

Bearing Shield

$

$

Not available

91

MTD 748-0283

Blade Adapter
(Superseded to 748-0235)

$

$

Not available

92

MTD 750-0456

Spacer

$4.49

$

In Stock, Qty 20+

0

93

MTD 14088

Spindle Spacer Plate
(Superseded to 14088B-0637)

$29.99

$

Usually ships in 3-6 days

0

94

MTD 09164

Reinforcement Plate
(Superseded to 09164A-0637)

$33.99

$

In Stock, only 2 left!

0

95

MTD 14249

Spindle Reinforcement Plate

$

$

Not available

96

MTD 15296

Open Bearing Housing
(Superseded to 15296A)

$8.99

$

In Stock, only 2 left!

0
