190-990-190 - White Outdoor 45" Snow Thrower Attachment (1987) Thrower Mounting Assembly Parts Diagram

45" Snow Thrower Attachment

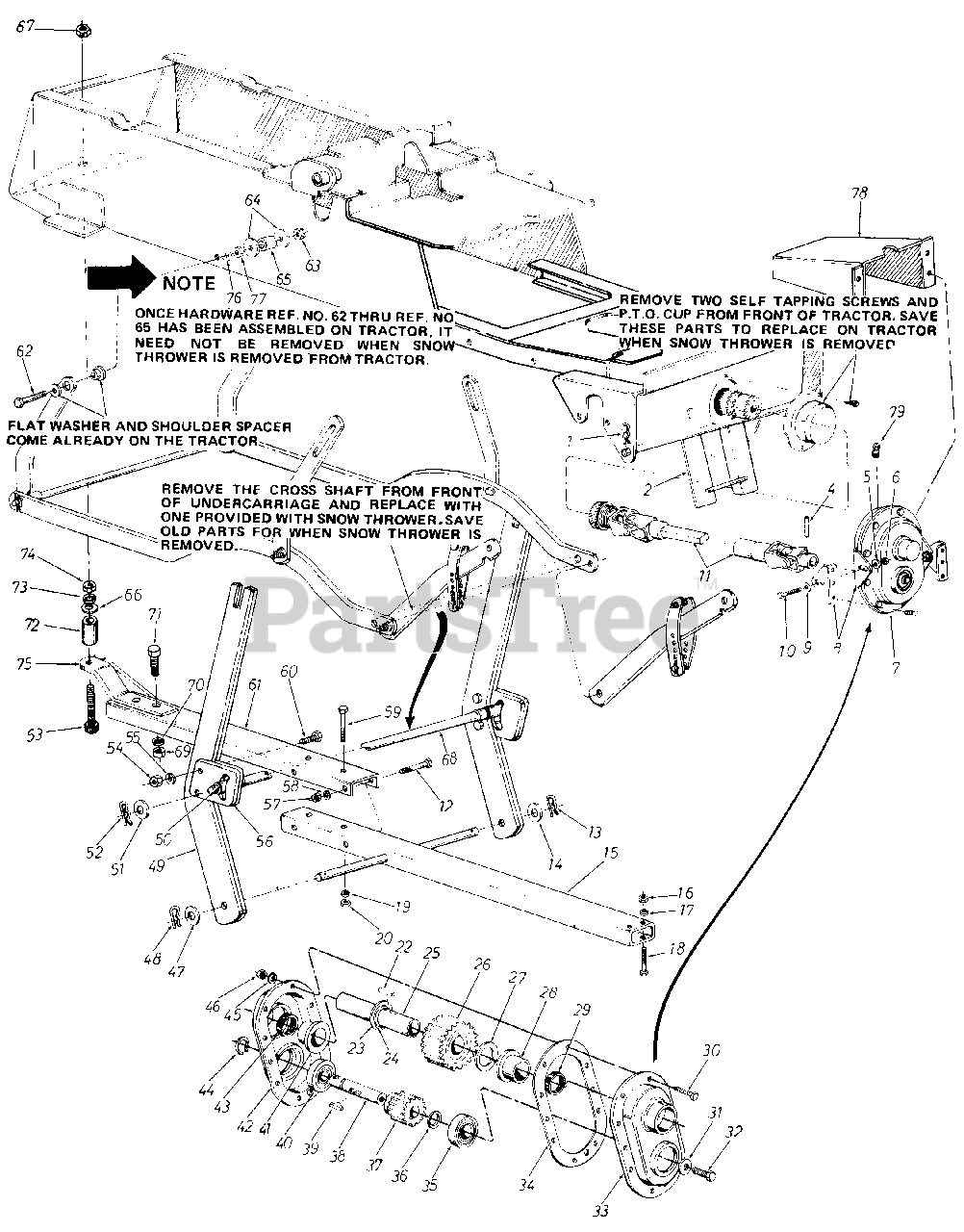

Thrower Mounting Assembly Parts Diagram

  • Title

1

White Outdoor 714-0117

Intern. Cotter Pin 3/4" D ia.

$4.49

$

In Stock, Qty 6

0

2

White Outdoor 05613

Guide Bracket Ass'y.
(Superseded to 05707)

$

$

Not available

4

White Outdoor 715-0121

Spring Pin Spirol 1/4 " Dia. x Lg.

$6.99

$

In Stock, Qty 8

0

5

White Outdoor 736-0242

Belleville Wash. .341 " I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

7

White Outdoor 717-0869

Gear Box Ass'y. Comp.

$

$

Not available

8

White Outdoor 05607

Gear Box Support Brkt.

$

$

Not available

9

White Outdoor 736-0242

Belleville Wash. .341" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0118

Hex Scr 5/16-18 x .75" Lg. *
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 717-0366

Universal Drive Shaft Ass'y.

$

$

Not available

12

White Outdoor 710-0620

Hex Scr. 3/8-24 x 4.50" Lg.*

$11.99

$

In Stock, only 2 left!

0

13

White Outdoor 714-0147

Hair Pin Cotter

$4.99

$

In Stock, Qty 7

0

14

White Outdoor 736-0316

Fl. Wash. .75" I.D. x 1.5"

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 05670

Lift Shaft Ass'y.

$

$

Not available

16

White Outdoor 712-0116

Hex Ins. Jam L.-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

17

White Outdoor 736-0169

L.-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 710-0629

Hex Scr. 3/8-24 x 2.75" Lg.*

$

$

Not available

19

White Outdoor 736-0169

L.-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-0116

Hex lns. Jam L.-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

22

White Outdoor 714-0113

Hi-Pro Key 1/4" x 7/8" Dia.

$6.99

$

Usually ships in 3-6 days

0

23

White Outdoor 736-0246

Fl.-Wash. 1.31" I.D. x 2.00" O.D. x .060

$

$

Not available

24

White Outdoor 716-0116

Snap Rinq for 1.25" Dia. Shaft

$4.99

$

Usually ships in 3-6 days

0

25

White Outdoor 738-0677

Gear Shaft 1.25" Dia. x 6.0" Lg.

$

$

Not available

26

White Outdoor 717-0362

28 Teeth Spur Gear
(Superseded to 917-0362)

$

$

Not available

27

White Outdoor 736-0246

Fl.-Wash. 1.31" I.D. x 2.00 0 O.D. x .060

$

$

Not available

28

White Outdoor 748-0194

Flange Bearing 1.25" I.D. x 1.75" O.D.

$32.99

$

Usually ships in 3-6 days

0

29

White Outdoor 721-0117

Oil Seal 1.25" I.D. x 1.75" O.D. x .26
(Superseded to 921-0117)

$

$

Not available

30

White Outdoor 710-0281

Hex Scr. 1/4-28 x .88" Lg.

$6.49

$

Usually ships in 3-6 days

0

31

White Outdoor 736-0247

Fl.-Wash. .40 I.D. x 1.25" O.D. x .160

$9.49

$

In Stock, Qty 16

0

32

White Outdoor 710-0591

Hex L.-Scr. 3/8-24 x 1.00" Lg.

$4.49

$

In Stock, only 1 left!

0

33

White Outdoor 717-0359

Complete Gear Housing Half-L.H.

$

$

Not available

34

White Outdoor 721-0158

Gasket

$

$

Not available

35

White Outdoor 741-0131

Ball Bearing 1.00" I.D. x 2.00" 0. D .
(Superseded to 941-0131)

$53.99

$

In Stock, Qty 6

0

36

White Outdoor 736-0259

Fl.-Wash. 1.03" I.D. x 1.63" x .090
(Superseded to 936-0259)

$

$

Not available

37

White Outdoor 717-0361

15 Teeth Spur Gear

$

$

Not available

38

White Outdoor 738-0361

Input Shaft

$

$

Not available

39

White Outdoor 714-0135

Woodruff Key 1/4" x 3/4" Dia.

$4.99

$

In Stock, only 2 left!

0

40

White Outdoor 741-0131

Ball Bearing 1.00" I.D. x 2.00" O.D.
(Superseded to 941-0131)

$53.99

$

In Stock, Qty 6

0

41

White Outdoor 748-0194

Flange Bearing 1.25" I.D. x 1.75" O.D.

$32.99

$

Usually ships in 3-6 days

0

42

White Outdoor 717-0360

Complete Gear Housing Half-R.H.

$

$

Not available

43

White Outdoor 721-0117

Oil Seal 1.25" I.D. x 1.75" O.D. x .26
(Superseded to 921-0117)

$

$

Not available

44

White Outdoor 716-0118

Snap Ring for 1.00" Dia. Shaft

$

$

Not available

45

White Outdoor 736-0175

Spring Wash. 1/4" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

46

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

47

White Outdoor 736-0316

Fl. Wash. .75" I.D. x 1.5"

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 714-0147

Hair Pin Cotter

$4.99

$

In Stock, Qty 7

0

49

White Outdoor 13780

Lift Bar

Variations

White Outdoor 13780-0637

No Longer Available BAR-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

50

White Outdoor 750-0444

Spacer

$

$

Not available

51

White Outdoor 736-0156

Fl.-Wash. .62" I.D. x 1.12" O.D.

$4.49

$

In Stock, Qty 12

0

52

White Outdoor 714-0147

Hair Pin Cotter

$4.99

$

In Stock, Qty 7

0

53

White Outdoor 710-0763

Hex Bolt 5/8-18 x 4.00" Lg.
(Superseded to 910-0763)

$

$

Not available

54

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

55

White Outdoor 736-0119

L.-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

56

White Outdoor 13781

Lift Bar Cam

Variations

White Outdoor 13781-0637

No Longer Available CAM-LIFT BAR - POWDER BLACK (0637)

$

$

Not available

$

$

57

White Outdoor 712-0116

Hex Ins. L.-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

58

White Outdoor 736-0169

L.-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

59

White Outdoor 710-0629

Hex Scr. 3/8-24 x 2.75"

$

$

Not available

60

White Outdoor 710-0376

Hex Scr. 5/16-18 x 1.00" Lg. *

$3.99

$

In Stock, only 4 left!

0

61

White Outdoor 05611

Lift Bracket

$

$

Not available

62

White Outdoor 710-0369

Hex Scr. 3/8-24 x 2.50"

$6.49

$

Usually ships in 3-6 days

0

63

White Outdoor 712-0116

Hex Jam L.-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

64

White Outdoor 736-0258

Fl.-Wash. .375 I.D. x 1.00" O.D. x .135"

$4.49

$

In Stock, only 3 left!

0

65

White Outdoor 750-0497

Spacer .275 I.D. x .625 O.D. x .440

$10.99

$

Usually ships in 3-6 days

0

66

White Outdoor 736-0156

Fl.-Wash. .62" I.D. x 1.12" O.D.

$4.49

$

In Stock, Qty 12

0

67

White Outdoor 712-0261

Hex Jam L.-Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

68

White Outdoor 13789

Cross ShaftAss y.

$

$

Not available

69

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.*

$4.49

$

In Stock, Qty 20+

0

70

White Outdoor 736-0921

L.-Wash. 1/2" Scr.*

$4.49

$

In Stock, Qty 5

0

71

White Outdoor 710-0474

Hex Scr. 1/2-13 x 1.25"

$

$

Not available

72

White Outdoor 750-0462

Bushing

$

$

Not available

73

White Outdoor 736-0158

L.-Wash. 5/8" Scr.*

$4.49

$

In Stock, only 1 left!

0

74

White Outdoor 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

75

White Outdoor 05646

Tongue Ass'y.
(Superseded to 05646-0637)

Variations

White Outdoor 05646-0637

PLATE ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

76

White Outdoor 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

77

White Outdoor 712-0241

Hex Nut 3/8-24 Thd. *

$4.49

$

In Stock, Qty 13

0

78

White Outdoor 784-5093

Drive ShaftCover

$

$

Not available

79

746-0146

Grease Fitting

$

$

Not available
