190-990-000 - MTD 45" Snow Thrower Attachment (1991) 45" Snow Thrower Parts Diagram

45" Snow Thrower Attachment

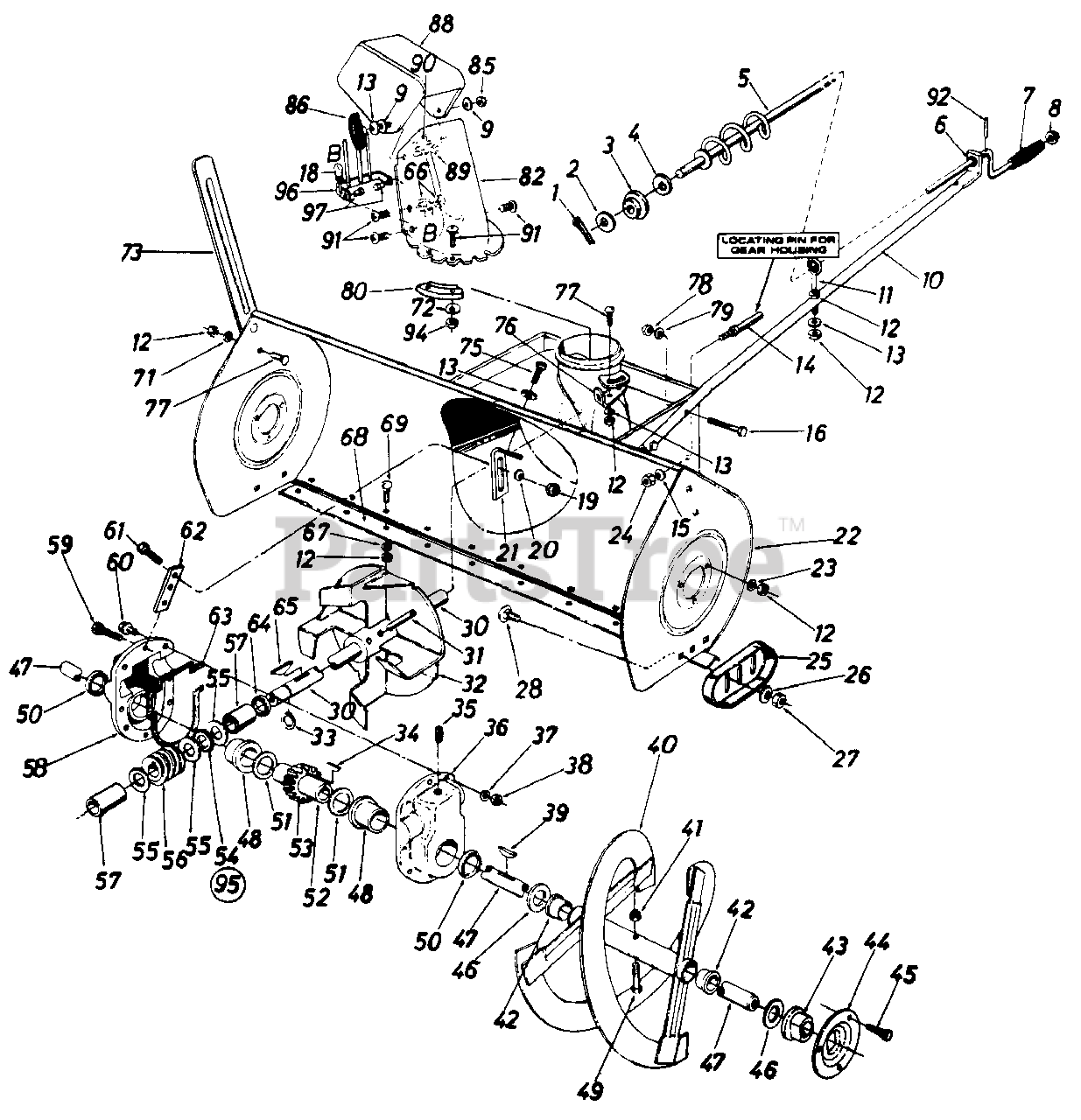

45" Snow Thrower Parts Diagram

  • Title

1

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, Qty 12

0

2

MTD 736-0140

Fl.-Wash. .39" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 6

0

3

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

4

MTD 736-0140

Fl.-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 6

0

5

MTD 05983

Chute Crank Ass'y.

$

$

Not available

6

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

7

MTD 720-0201

Knob (Black)
(Superseded to 720-0201A)

$10.99

$

In Stock, Qty 5

0

8

MTD 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, Qty 18

0

9

MTD 736-0231

Fl.-Wash. .344" I.D. x 1.25" O.D.

$4.99

$

In Stock, Qty 20+

0

10

MTD 749-0230

Chute Crank Support Tubing

$

$

Not available

11

MTD 747-0416

Eyebolt

$

$

Not available

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0242

Bell.-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

14

MTD 711-0640

Stud 3/8-16 x 2.75" Lg.

$7.99

$

Usually ships in 3-6 days

0

15

MTD 736-0105

Bell.-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

18

MTD 732-0118

Extension Spring
(Superseded to 732-0118A)

$10.99

$

Usually ships in 3-6 days

0

19

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

20

MTD 736-0270

Bell.-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

21

MTD 784-5076

Gear Housing Support Brkt.
(Superseded to 784-5076-0637)

Variations

MTD 784-5076-0637

PLATE-SUPPORT-GEAR - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

22

MTD 784-5036

45" Snow Blower Housin Ass'y.

$

$

Currently unavailable

23

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

25

MTD 784-5038

Slide Shoe
(Superseded to 784-5038B-0637)

$27.99

$

In Stock, only 2 left!

0

26

MTD 736-0105

Bell.-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

27

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

28

MTD 710-0790

Carriage Bolt 3/8-16 x .62" Lg.
(Superseded to 710-0389)

$4.49

$

Usually ships in 3-6 days

0

30

MTD 738-0679

Blower Axle .875" Dia. x 14.75" Lg.

$

$

Not available

31

MTD 715-0118

Spring Pin Spir. 5/16" Dia. x 1.75 Lg.

$12.99

$

In Stock, Qty 7

0

32

MTD 784-5145

Blower Fan Ass'y.
(Superseded to 784-5145-0637)

Variations

MTD 784-5145-0637

Blower Fan Assembly, Black - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 716-0111

Snap Ring for .875" Dia. Shaft

$6.99

$

In Stock, only 4 left!

0

34

MTD 714-0135

91 Woodr-Key 1/4 x 3/4" Dia. (HDN)

$4.99

$

In Stock, only 2 left!

0

35

MTD 737-0175

Vent Plug

$6.99

$

In Stock, only 4 left!

0

36

MTD 717-0297

Gear Hsg. Half L.H.
(Superseded to 753-0889)

$

$

Not available

37

MTD 736-0271

Spr.-Wash. .32" I.D. x .62" O.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

38

MTD 712-0429

Hex Ins. L.-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

39

MTD 714-0135

#91 Woodr-Key 1/4 x 3/4" Dia. (HDN)

$4.99

$

In Stock, only 2 left!

0

40

MTD 05608

Spiral Ass'y. R.H.
(Superseded to 684-04196)

Note: (Not Shown)

Variations

MTD 05608-0637

USE 684-04196 SPIRAL ASM-RH 4 - POWDER BLACK (0637)

$235.99

$

Usually ships in 3-6 days

0

$235.99

$

Usually ships in 3-6 days

0

MTD 05609

Spiral Ass'y. L.H.
(Superseded to 684-04197)

Variations

MTD 05609-0637

USE 684-04197 SPIRAL ASM-LH 4 - POWDER BLACK (0637)

$235.99

$

Usually ships in 3-6 days

0

$235.99

$

Usually ships in 3-6 days

0

41

MTD 712-0429

Hex Ins. L.-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

42

MTD 741-0494

Plastic Bushing

$3.99

$

In Stock, Qty 20+

0

43

MTD 741-0192

Flange Brg. w/flats 1" I.D.
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

44

MTD 05845

Bearing Housing
(Superseded to 05845C-0637)

$23.99

$

In Stock, only 1 left!

0

45

MTD 710-0198

Hex Sems Bolt 5/16-18 x .75" 4.
(Superseded to 910-0198)

$

$

Not available

46

MTD 736-0250

Fl.-Wash. 1.00" I.D. x 1.75" O.D.

$4.49

$

In Stock, Qty 20+

0

47

MTD 738-0492

Spiral Axle

$205.99

$

Usually ships in 3-6 days

0

48

MTD 741-0182

Flange Bearing 1.503" I.D.

$

$

Not available

49

MTD 710-0891

Shear Bolt 5/16-18 x 1.75" Lg.

$7.49

$

In Stock, Qty 10

0

50

MTD 721-0146

Oil Seal 1.50" I.D.
(Superseded to 921-0146)

$12.99

$

Usually ships in 3-6 days

0

51

MTD 736-0266

Fl.-Wash. 1.50" I.D. x 2.00" O.D.
(Superseded to 936-0266)

$

$

Not available

52

MTD 738-0275

Worm Gear Shaft

$112.99

$

Usually ships in 3-6 days

0

53

MTD 717-0300

Double Threaded Worm Gear-L.H.
(Superseded to 917-1425)

$177.99

$

In Stock, only 2 left!

0

54

MTD 741-0184

Thrust Brg. - .88" I.D. x 1.44" O.D.

$16.99

$

Usually ships in 3-6 days

0

55

MTD 736-0291

Fl.-Wash. .88" 1 .D. x 1.4" O.D.

$11.99

$

Usually ships in 3-6 days

0

56

MTD 717-0299

Double Threaded Worm-L.H.
(Superseded to 917-0299)

$124.99

$

In Stock, only 2 left!

0

57

MTD 741-0217

Sleeve
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 7

0

58

MTD 717-0298

Gear Hsg. Half - R.H.
(Superseded to 753-0889)

$

$

Not available

59

MTD 710-0528

Hex Bolt 5/16-18 x 1.25" 4.

$4.49

$

In Stock, Qty 19

0

60

MTD 710-0376

Hex Bolt 5/16-18 x 1.0" 4. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

61

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

62

MTD 784-5075

Gear Housing Support Plate

$

$

Not available

63

MTD 721-0144

Rubber Gasket
(Superseded to 921-0144)

$11.99

$

Usually ships in 3-6 days

0

64

MTD 721-0145

Oil Seal - .875" I.D.
(Superseded to 921-0145)

$9.99

$

Usually ships in 3-6 days

0

65

MTD 714-0126

#9 Hi-Pro Key 3/16 x 3/4" Dia. (HT.)

$4.99

$

In Stock, Qty 12

0

66

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

67

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

68

MTD 05598

Shave Plate
(Superseded to 05598-0637)

Variations

MTD 05598-0637

Shave Plate - POWDER BLACK (0637)

$108.99

$

Usually ships in 3-6 days

0

$108.99

$

Usually ships in 3-6 days

0

69

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, Qty 20+

0

71

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

72

MTD 736-0142

Fl.-Wash. 1/4" I.D.

$4.99

$

In Stock, Qty 20+

0

73

MTD 05139

Guide Blade
(Superseded to 790-00181-0637)

$43.99

$

Usually ships in 3-6 days

0

75

MTD 710-0726

Hex Wash. Hd. AB Tap Scr. 5/16" x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

76

MTD 784-5123

Chute Crank Brkt.
(Superseded to 784-5123-0637)

Variations

MTD 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

77

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

78

MTD 712-0116

Hex Ins. L.-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

79

MTD 736-0169

L.-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

80

MTD 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

82

MTD 731-0843

Lower Chute
(Superseded to 931-0843B)

$

$

Not available

85

MTD 712-0158

Hex Cent. L.-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

86

MTD 09966

Knob Handle
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

88

MTD 731-0846

Upper Chute
(Superseded to 731-0846C)

$52.99

$

In Stock, only 3 left!

0

89

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, Qty 20+

0

90

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

91

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

92

MTD 715-0138

Roll Pin .12" Dia. x .63"
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

94

MTD 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

95

MTD 717-0871

Gear Box Ass'y.-Comp.
(Superseded to 917-0871A)

$615.99

$

Usually ships in 3-6 days

0

96

MTD 784-5192

Chute Guard Ass'y.
(Superseded to 784-5192-0637)

Variations

MTD 784-5192-0637

GUARD ASSY-CHUTE - POWDER BLACK (0637)

$99.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0

97

MTD 738-0561

Shld. Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

Usually ships in 3-6 days

0
