190-985-190 - White Outdoor 54" Snow Blade (1994) 54" Snow Blade Parts Diagram

54" Snow Blade

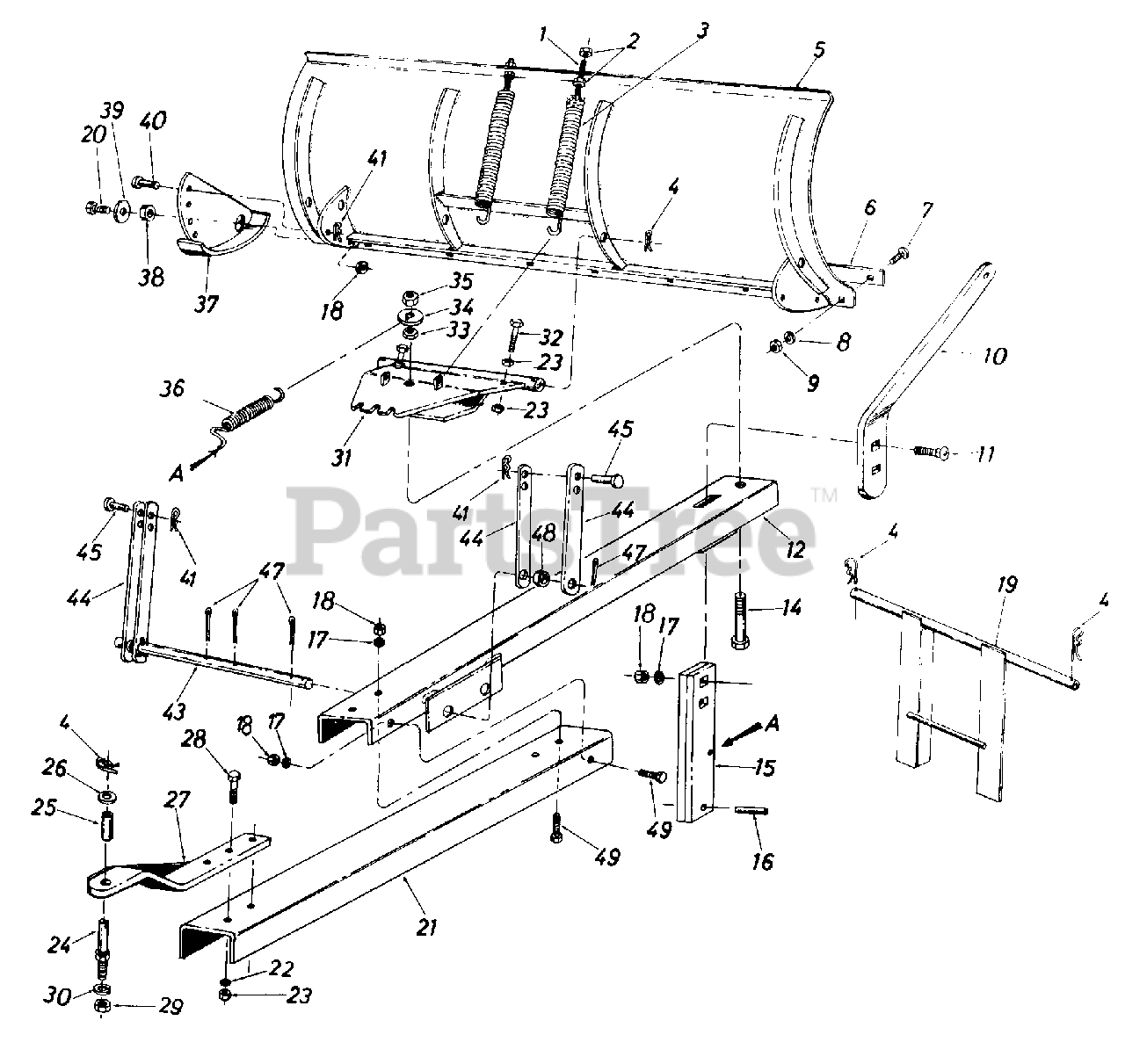

54" Snow Blade Parts Diagram

  • Title

1

White Outdoor 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$14.99

$

In Stock, only 2 left!

0

2

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

3

White Outdoor 732-0359

Blade Adjustment Spring

$

$

Not available

4

White Outdoor 714-0117

Int. Cotter Pin 5/32"

$4.49

$

In Stock, Qty 6

0

5

05674

54" Blade Ass'y.

$

$

Not available

6

White Outdoor 05687

Wear Plate

$

$

Not available

7

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

10

White Outdoor 05666

Lock Extension Bar

$

$

Not available

11

White Outdoor 710-0305

Carriage Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

12

White Outdoor 05649

Front Push Bar Ass'y.

$

$

Not available

14

710-0741

Hex Bolt 3/4-10 x 3.5" Lg.

$

$

Not available

15

White Outdoor 05665

Angle - Lock Bar
(Superseded to AF-23151)

$38.99

$

Usually ships in 3-6 days

0

16

White Outdoor 715-0114

Spring Pin Spiral .25" Dia. x 1"

$9.49

$

In Stock, Qty 5

0

17

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 712-0375

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

19

White Outdoor 05707

Guide Bracket Ass'y.

$

$

Not available

20

White Outdoor 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 16

0

21

White Outdoor 05611

Rear Push Bar Channel

$

$

Not available

22

White Outdoor 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 5

0

23

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 711-0497

Link Clevis Pin

$

$

Not available

25

1648-047

Spacer 21/32" I.D. x .75" Lg.

$

$

Not available

26

White Outdoor 736-0156

Fl-Wash. 21/32" I.D. x .09" O.D.

$4.49

$

In Stock, Qty 12

0

27

White Outdoor 05646

Hitch Hanging Bar Ass'y.
(Superseded to 05646-0637)

Variations

White Outdoor 05646-0637

PLATE ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 710-0474

Hex Bolt 1/2-13 x 1.25" Lg.

$

$

Not available

29

White Outdoor 712-0923

Hex Jam L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

30

White Outdoor 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, only 1 left!

0

31

White Outdoor 05677

Pivot Plate Ass'y.
(Superseded to AF-62556)

$

$

Not available

32

White Outdoor 710-0489

Hex Bolt 1/2-13 x 2.0" Lg.

$7.49

$

Usually ships in 3-6 days

0

33

White Outdoor 712-0301

Hex Jam Nut 3/4-10 Thd.

$7.99

$

In Stock, only 1 left!

0

34

White Outdoor 736-0306

Fl-Wash. 3/8" (Special)

$

$

Not available

35

White Outdoor 712-0205

Hex Lock Nut 3/4-10 Thd.

$

$

Not available

36

White Outdoor 732-0360

Angle Lock Spring
(Superseded to AF-43348)

$36.99

$

In Stock, only 1 left!

0

37

White Outdoor 05655

Skid Assembly

$

$

Not available

38

White Outdoor 750-0437

Bushing, Pivot Skid
(Superseded to AF-42846)

$

$

Not available

39

White Outdoor 736-0258

Fl-Wash. .385" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 4 left!

0

40

711-0688

Clevis Pin 5/16" Dia. x 3/4" Lg.

$

$

Not available

41

White Outdoor 714-0101

Int. Cotter Pin 3/32"

$4.99

$

In Stock, only 2 left!

0

43

White Outdoor 738-0428

Lift Shaft

$

$

Not available

44

White Outdoor 13786

Lift Link

$

$

Not available

45

White Outdoor 711-0310

Clevis Pin 1/2" Dia. x 1.0" Lg.

$10.99

$

Usually ships in 3-6 days

0

47

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 750-0142

Spacer, Lift Link
(Superseded to 950-0142)

$

$

Not available

49

White Outdoor 710-0253

Hex Bolt 3/8-16 x 1.0" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0
