190-985-000 - MTD 54" Snow Blade Attachment (1991) 54" Snow Blade Parts Diagram

54" Snow Blade Attachment

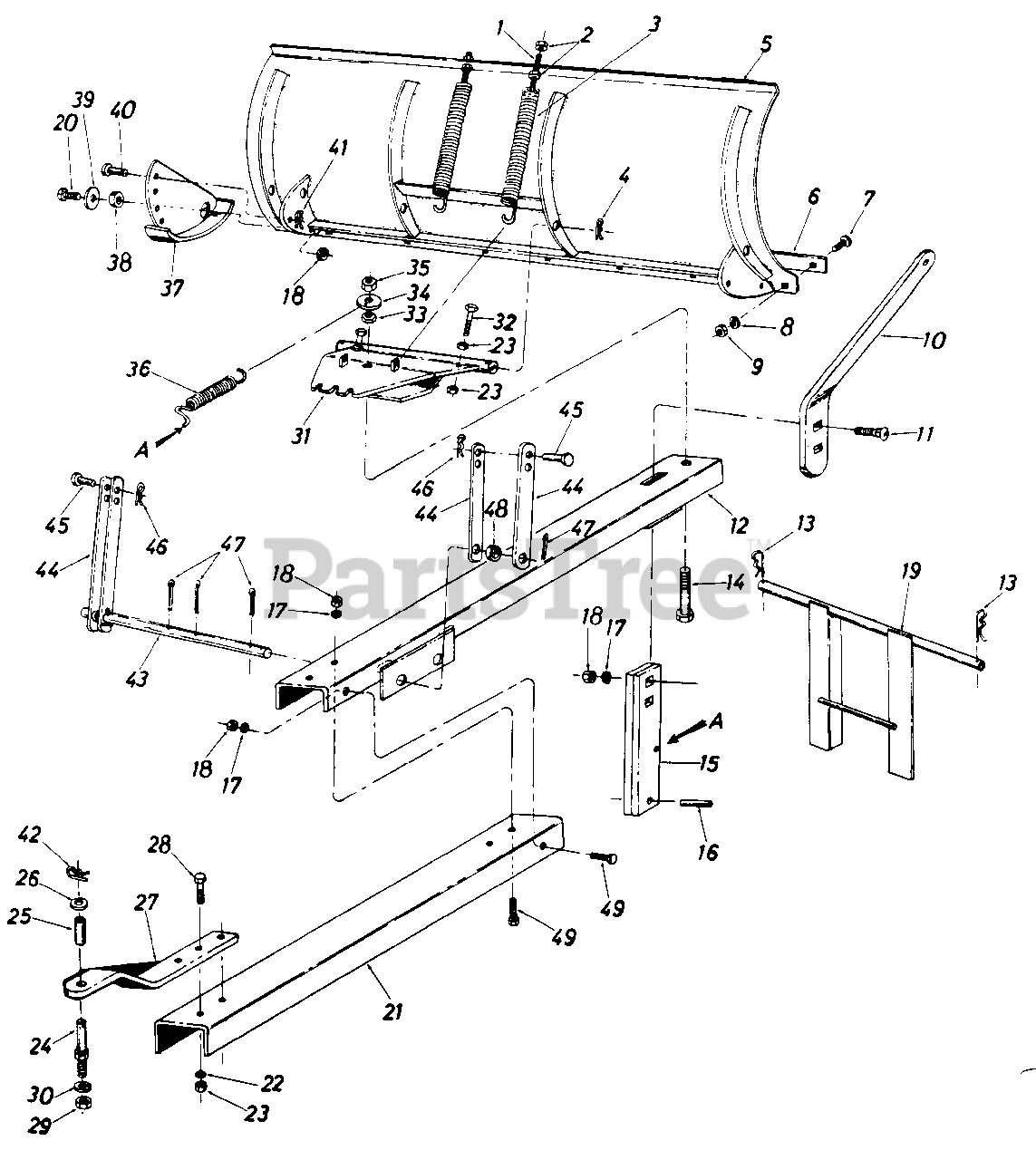

54" Snow Blade Parts Diagram

  • Title

1

MTD 710-0693

Hex Scr. 3/8-16 x 4.50" Lg.

$14.99

$

In Stock, only 2 left!

0

2

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

3

MTD 732-0359

Blade Adjustment Spring

$

$

Not available

4

MTD 714-0117

Hair Pin Cotter, 5/32

$4.49

$

In Stock, Qty 6

0

5

MTD 05674

54" Blade Ass'y.

$

$

Currently unavailable

6

MTD 05687

Wear Plate

$

$

Not available

7

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0119

L.-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

MTD 712-0267

Hex Nut 5/16-18 thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 05666

Lock Extension Bar

$

$

Not available

11

MTD 710-0305

Carriage Bolt 3/8-16 x 1.25" Lg.*
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

12

MTD 05649

Front Push Bar Ass y.

$

$

Not available

13

714-01l7

Hair Pin Cotter, 5/32

$

$

Not available

14

MTD 710-0741

Hex Scr. 3/4-10 x 3.50" Lg.

$

$

Currently unavailable

15

MTD 05665

Angle- Lock Bar
(Superseded to AF-23151)

$38.99

$

Usually ships in 3-6 days

0

16

MTD 715-0114

Spring Pin Spirol .25" Dia. x 1.00" Lg.

$9.49

$

In Stock, Qty 5

0

17

MTD 736-0169

L.-Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-0375

Hex L.-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

19

MTD 05707

Guide Bracket Ass'y.

$

$

Not available

20

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 16

0

21

MTD 05611

Rear Push Bar Channel

$

$

Not available

22

MTD 736-0921

L.-Wash. 1/2" Scr.

$4.49

$

In Stock, Qty 5

0

23

MTD 712-0206

Hex Nut 1/2-13 Thd.*

$4.49

$

In Stock, Qty 20+

0

24

MTD 711-0497

Link Clevis Pin

$

$

Not available

25

MTD 1648-047

Spacer 1" O.D. x 21/32" I.D. x .75" Lg.

$

$

Currently unavailable

26

MTD 736-0156

Fl-Wash. 21/32 I.D. x .090 O. D.

$4.49

$

In Stock, Qty 12

0

27

MTD 05646

Hitch Hanging Bar Ass'y.
(Superseded to 05646-0637)

Variations

MTD 05646-0637

PLATE ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 710-0474

Hex Scr. 1/2-13 x 1.25" Lg.

$

$

Not available

29

MTD 712-0923

Hex Jam L.-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

30

MTD 736-0158

L.-Wash. 5/8" Scr.

$4.49

$

In Stock, only 1 left!

0

31

MTD 05677

Pivot Plate Ass'y.
(Superseded to AF-62556)

$

$

Not available

32

MTD 710-0489

Hex Scr. 1/2-13 x 2.00" Lg.

$7.49

$

Usually ships in 3-6 days

0

33

MTD 712-0301

Hex Jam Nut 3/410 Thd.

$7.99

$

In Stock, only 1 left!

0

34

MTD 736-0306

Fl.-Wash. 3/8" ISpecial

$

$

Not available

35

MTD 712-0205

Hex LockNut 3/4-1 Thd.

$

$

Not available

36

MTD 732-0360

Angle Lock Spring
(Superseded to AF-43348)

$36.99

$

In Stock, only 1 left!

0

37

MTD 05655

Skid Assembly

$

$

Not available

38

MTD 750-0437

Bushing, Pivot Skid
(Superseded to AF-42846)

$

$

Not available

39

MTD 736-0258

Fl.-Wash. .385" I.D. x 1.00" O.D.

$4.49

$

In Stock, only 4 left!

0

40

MTD 711-0686

Clevis Pin 5/16" Dia. x 3/4" Lg.

$

$

Not available

41

MTD 714-0101

Hair Pin Cotter 3/32"

$4.99

$

In Stock, only 2 left!

0

42

MTD 714-0117

Hair Pin Cotter, 5/32

$4.49

$

In Stock, Qty 6

0

43

MTD 738-0428

Lift Shaft

$

$

Not available

44

MTD 13786

Lift Link

$

$

Not available

45

MTD 711-0310

Clevis Pin 1/2" Dia. x 1.00" Lg.

$10.99

$

Usually ships in 3-6 days

0

46

MTD 714-0101

Hair Pin Cotter, 3/32"

$4.99

$

In Stock, only 2 left!

0

47

MTD 714-047

Cotter Pin 1/8" Dia. x 1.50" Lg.

$

$

Currently unavailable

48

MTD 750-0142

Spacer, Lift Link
(Superseded to 950-0142)

$

$

Not available

49

MTD 710-0253

Hex Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0
